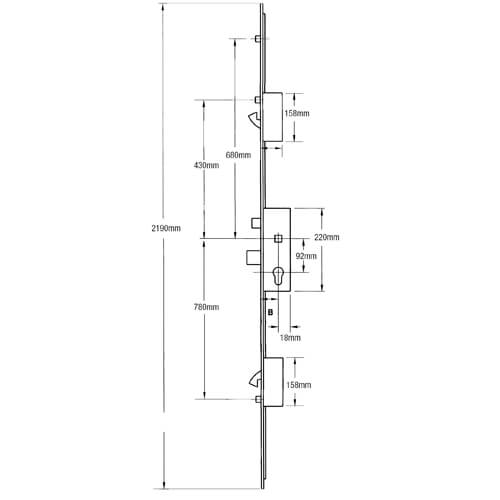

AGB Latch Deadbolt 2 Hooks 3 Rollers Lift Lever Multipoint Door Lock (top hook to spindle = 580mm)

This part is discontinued and is no longer available.

However, part: V-MPL30 is a potential alternative for part: AGB2H3R30, and part: V-MPLSS35 is a potential alternative for part: AGB2H3R35.

We'd recommend a VERSA V-MPL to replace this lock. There isn't a full lock that is a direct swap, but the VERSA lock comes with keeps and is adjustable to suit the original door routing.

AGB locks are manufactured in Italy. They were historically available in a number of different configurations but only the Poseidon lock is still available. The AGB Poseidon lock features a unique hook and deadbolt arrangement on the outer locking points. Designed to look like a trident, each hook is thrown in the opposite direction to the other with a deadbolt separating them.

AGB UPVC door locks are easy to identify from the logo stamped on the faceplate or the unique Poseidon locking arrangement. These locks are only available with a 35mm backset and a 16mm faceplate. The operation is lift lever with a single spindle.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for AGB multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as a UPVC door lock or an aluminium door lock.
