ASSA 256 - Cylinder Ring and Thumbturn Set

The Assa 256 outside cylinder ring & inside thumbturn accessory set is for use with Assa Connect and Modular locks.

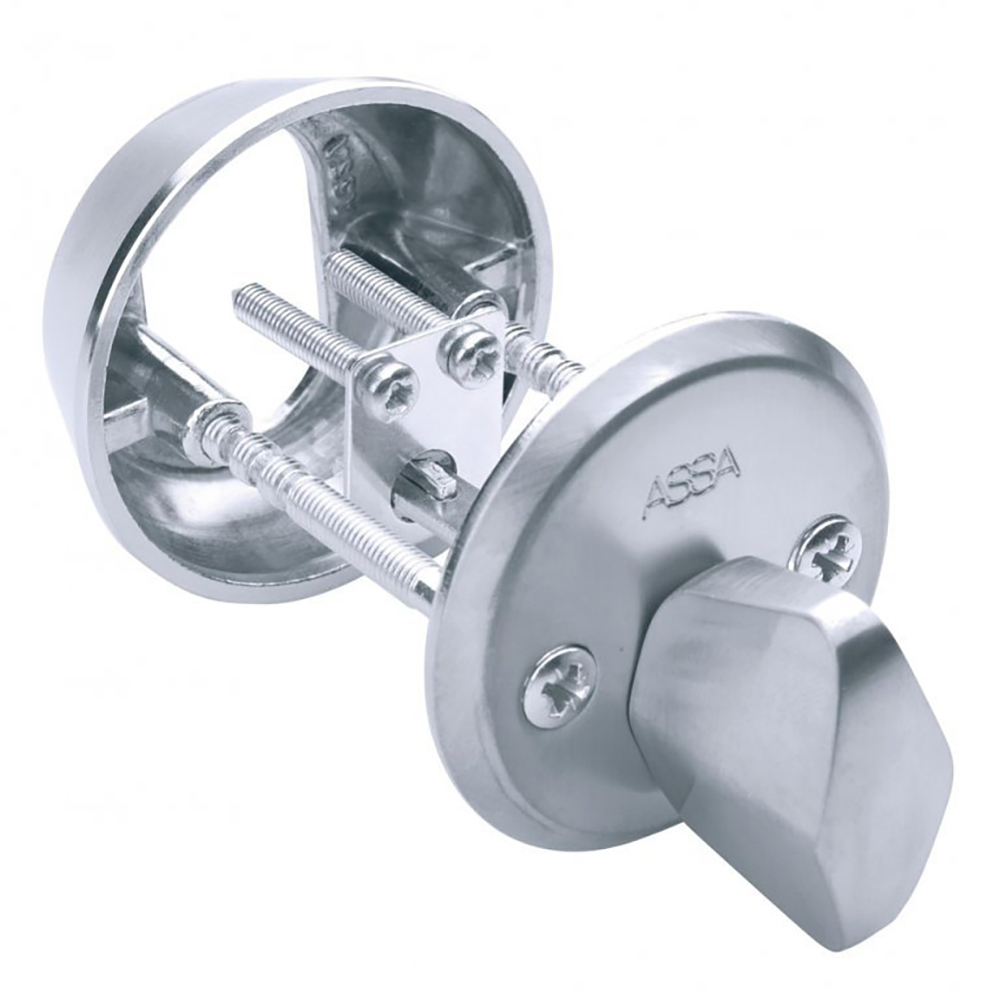

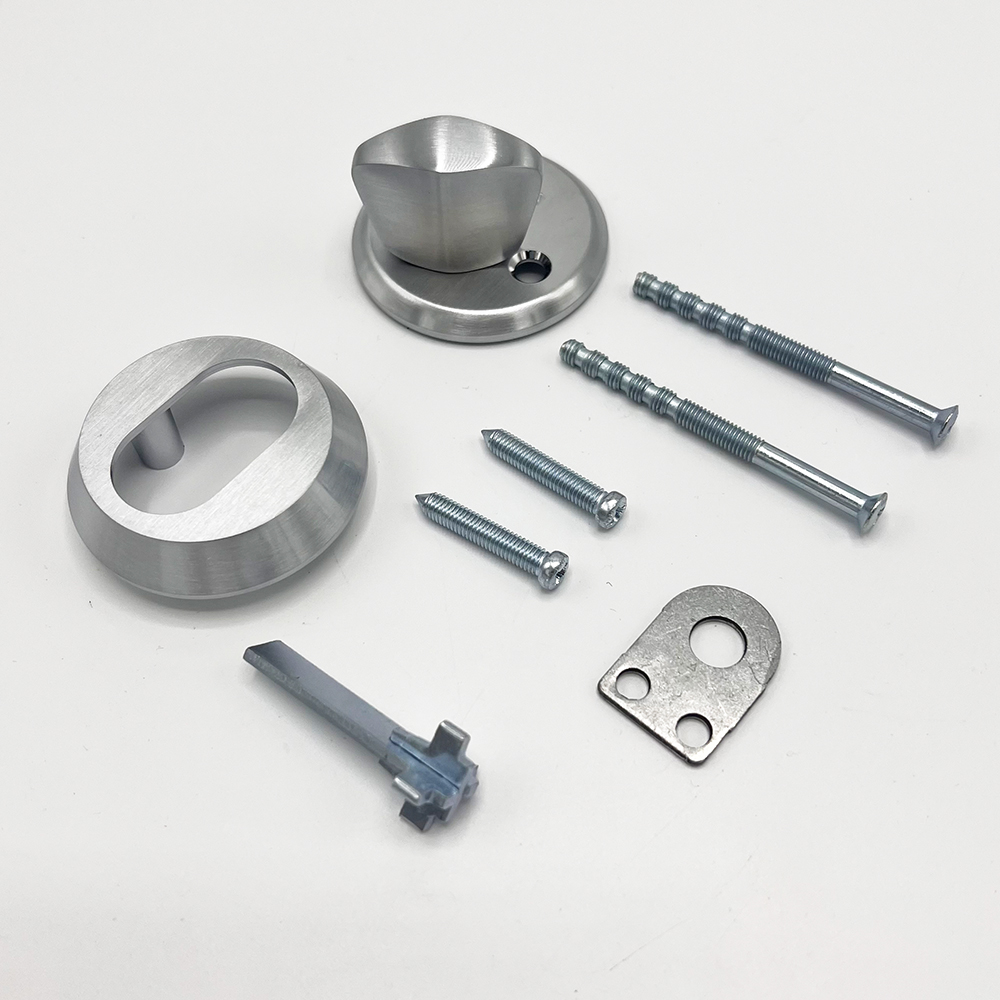

Supplied with spindle, screws and exterior cylinder ring.

Application uses:

• Suitable for use with Assa Connect and Modular locks
• Suitable for general and heavy use
• Suitable for doors 44-45mm thick

Features:

• Material: Brass
• Fits oval single cylinders
• Available in several decorative finishes
• Thumbturn Rose is available in the Epok series
• The height of the cylinder ring and length of the screws and thumb-turn follower are chosen according to the door thickness

Function:

• Thumbturn for operating bolt and / or latch
• The cylinder ring obstructs damage to the cylinder

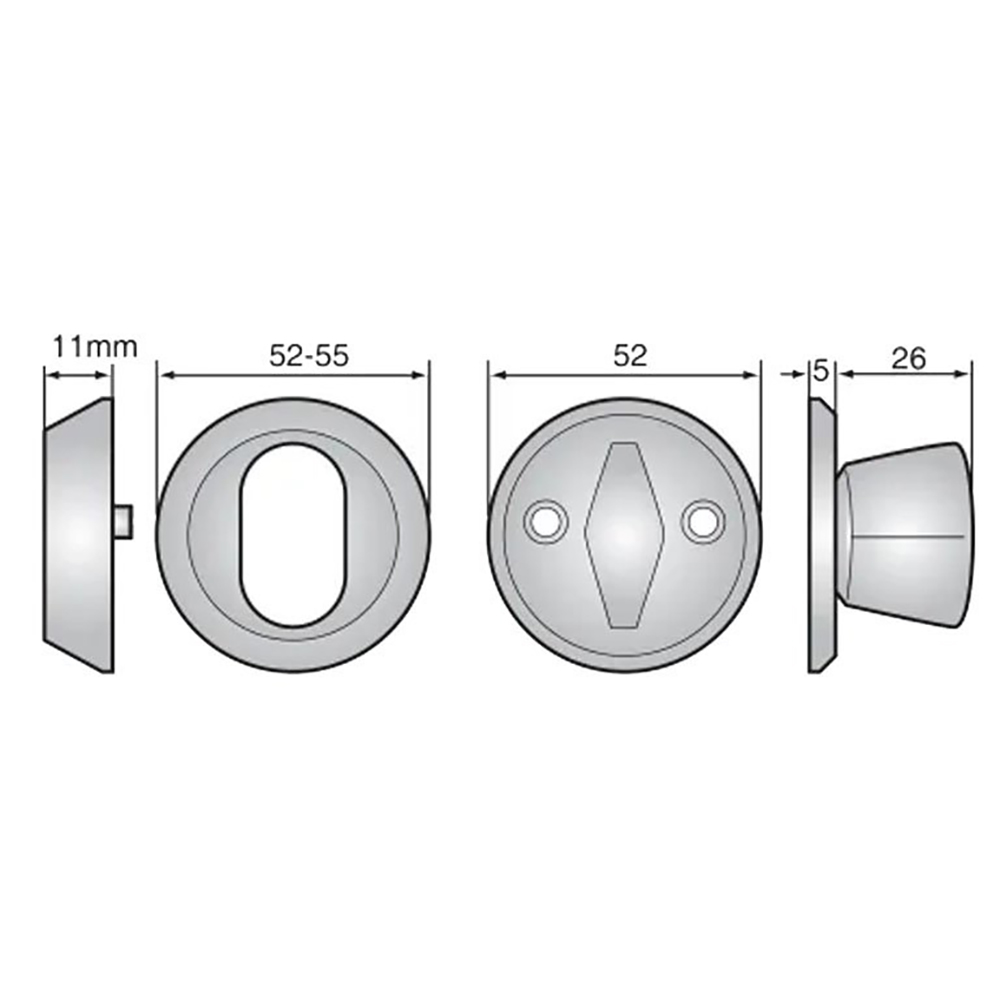

Dimensions:

• Cylinder ring projection: 11mm
• Cylinder ring diameter: 52-55mm
• Thumbturn rose diameter: 52mm
• Thumbturn rose projection: 5mm
• Thumbturn projection: 26mm
