Product Information

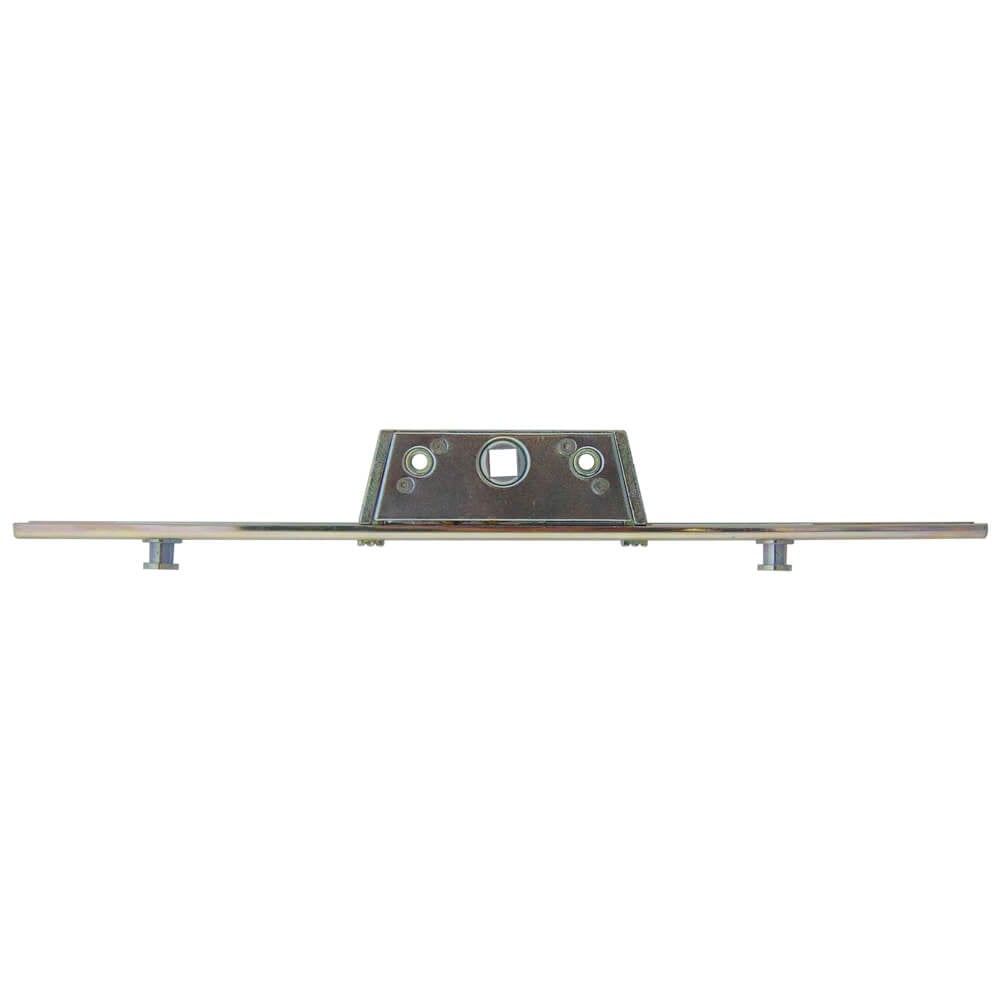

A slimline version of the Urail Avocet espag featuring a 14mm faceplate available in 20mm backset only. These espags feature a 7mm spindle and 8mm mushroom height.

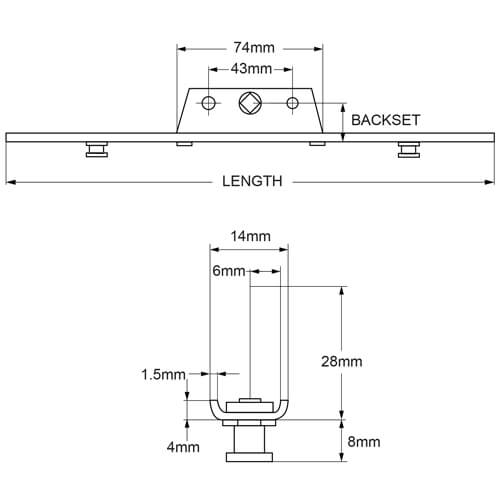

Sizes
- Backset: 20mm
- Gearbox width: 74mm
- Gearbox height: 28mm
- Screw centres: 43mm
- Faceplate: 14mm narrow Urail
- Mushroom height: 8mm
- Length: available in 250mm, 400mm, 600mm, 800mm, 1000mm, 1200mm
- Number of mushrooms: 2 mushrooms (except for the 1000mm and 1200mm which have 3 mushrooms)
