£36.60 INC VAT
RRP from: £54.22 Saving 32.5%

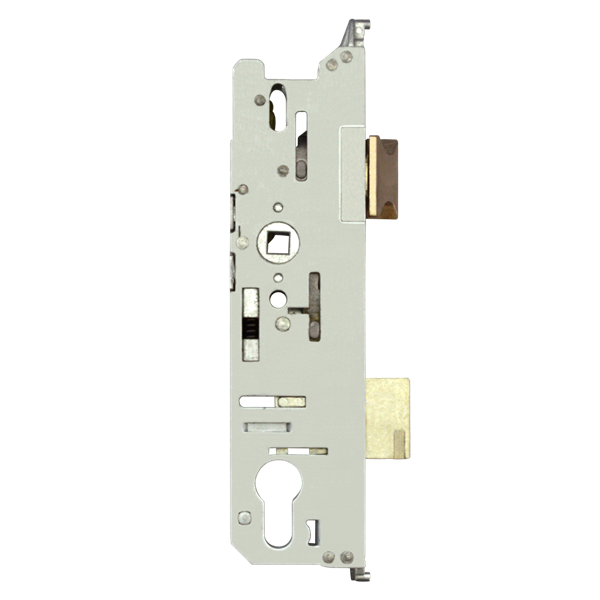

The FUHR Lever Operated Latch & Deadbolt Centre Case has a 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm or 65mm backset with 92mm centres. It is a single spindle centre case with a 200mm case height and a 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm or 80mm case width. The FUHR Lever Operated Centre Case features a latch and deadbolt configuration with a single spindle layout, designed for use with FUHR multipoint locks commonly found on UPVC and composite doors. It provides a direct replacement solution when the gearbox fails, allowing installers to retain the existing locking strip. HandingThe latch can be reversed by locating the Allen screw on the side of the lockcase in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThe ball bearing, screw, and spring required to operate this centre case must be purchased separately. The corresponding Aldridge product codes are L23669, L23670, and L23671.
