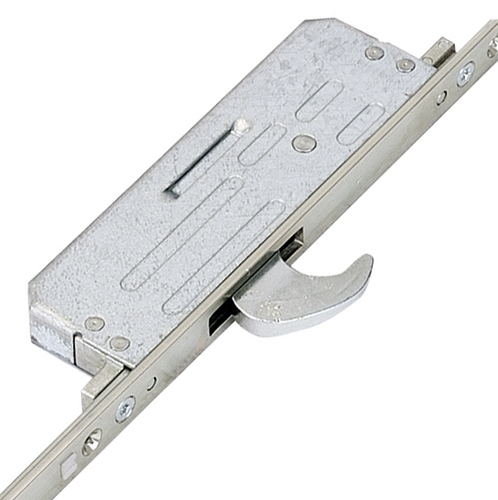

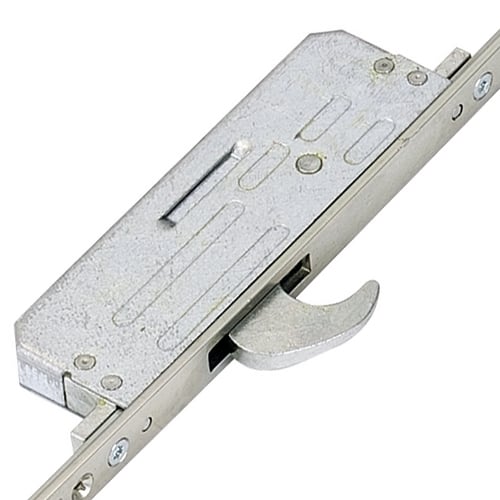

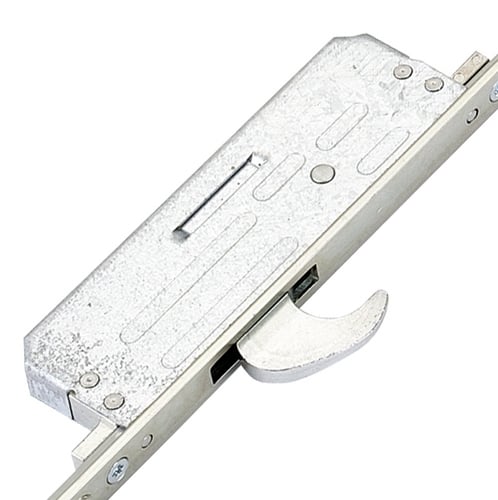

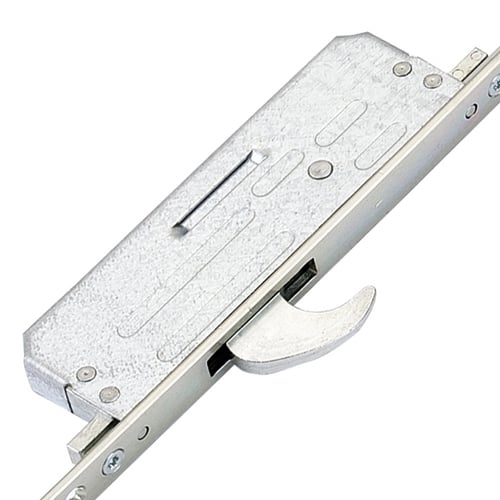

Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock

Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
Maco
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Maco Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
FREE DELIVERY ON ALL ORDERS OVER £60*
£ 85.13

£85.13 INC VAT

Show price ex. VAT

RRP from: £115.82 Saving 26.5%

Email me when back in stock
Variations
Select Backset
35mm
Select Faceplate
Flat 16mm - Square Ends
Select Operation
Lift lever

Product Code:
MA1056

Product Details

Product Information

This part is discontinued and is no longer available.

However, part: 1504638 is a potential alternative. This is a close match but the hooks are in slightly different positions. Therefore some adjustment will be required to the keeps to line up with the new lock.

Sizes

  • Manufacturer: Maco
  • Backset: Select from drop-down - How do I measure the backset?
  • Centres PZ: 92mm - How do I measure the centres?
  • Faceplate: Select from drop-down - How do I measure the faceplate?
  • Spindle Size: 8mm
  • Hooks: 4
  • Deadbolts: 1
  • Latch: 1

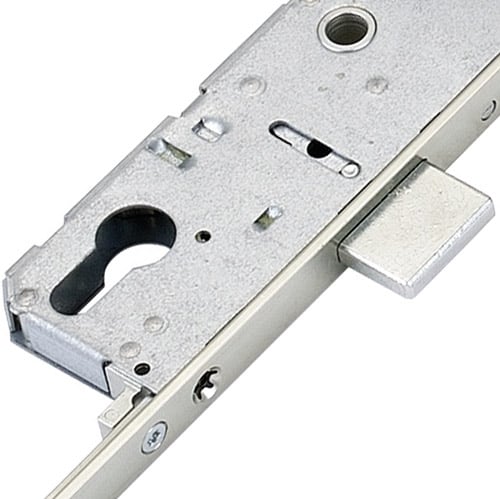

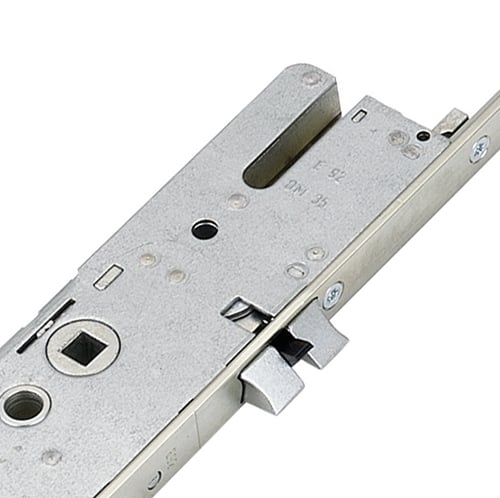

  • Main Gearbox: Latch & deadbolt
  • Operation: Select from drop-down - What is the operation?
  • Spindle: Single 8mm
  • Handing: Non handed

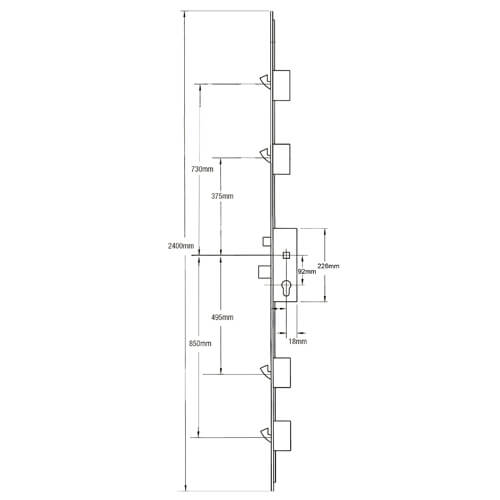

  • Distance Between Inner Locking: 870mm
  • Distance Between Outer Locking: 1580mm
  • Height: 2400mm
  • Top Hook to Spindle: 730mm
  • Bottom Hook to Spindle: 850mm
  • Door Material: UPVC, Aluminium, Timber, Composite

Operation
