Spilka Classic Top Swing Hinges

Spilka Classic Top Swing Hinges
Lock Shop Direct
  • Spilka Classic Top Swing Hinges
  • Spilka Classic Top Swing Hinges
FREE DELIVERY on Orders Over £60 Plus VAT
£
FROM

£84.21 INC VAT

Show price ex. VAT

RRP from: £125.78 Saving 33.0%

35
HOURS
58
MINUTES
04
SECONDS
left for delivery on Tuesday 24 March
Variations
Select Length
select
Select Max Weight
select
Select Top Hung Or Side Hung
Top Hung
View Variations Table
Clear All
Quantity
Add to Basket

Product Details

Product Information

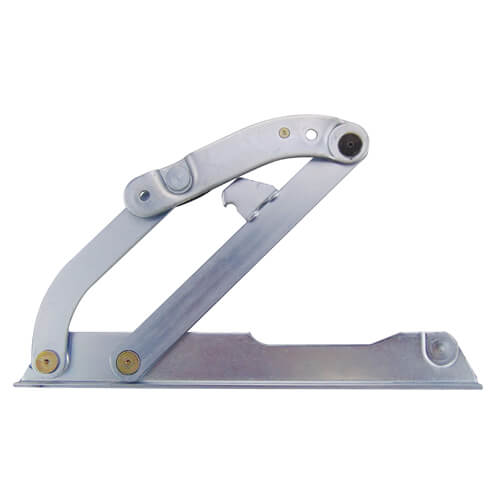

These Spilka classic hinges are top swing hinges that allow the window to be reversed through 180 degrees. The distinctive design of these hinges make them easy to identify. Some models are also stamped "Norway A/S" on the stay arm.

These are for use on Top Hung windows only, with a stay at each end of the sash, and are therefore supplied as a non handed pair consisting 1 left and 1 right stay.

Sizes

  • The window can be swung 180° and does not protrude into the room.
  • Various arm lengths, see table below.
  • Width: 40mm
  • Max weight: 35kg-55kg
  • The original hinge used on top swing, outward opening, reversible windows.
  • Hinges allow the window to be opened by a handle at its lower edge and can be left in a ventilation position.
  • Built in restrictor to allow 80mm initial opening as a child safety precaution.
  • Widely used on timber windows.

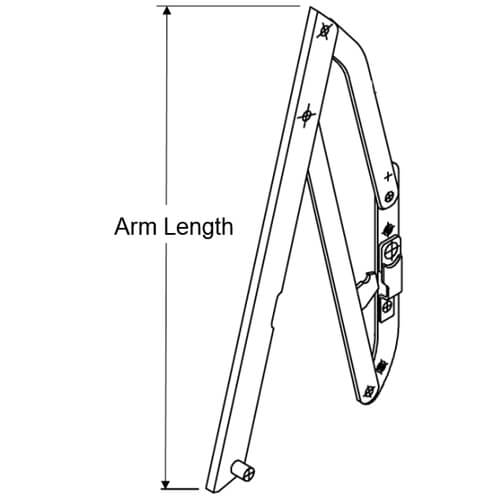

  • The hinge size is calculated by measuring the length of the arm located on the frame.
  • Can also be identified by the Norway A/S stamp on the arm.
  • Supplied in pairs
