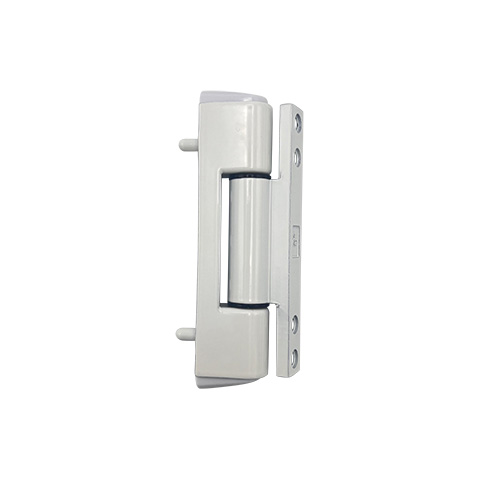

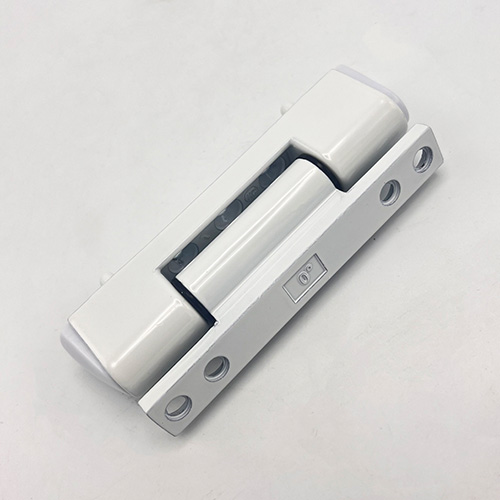

TSS UPVC Butt Hinge 112mm

TSS UPVC Butt Hinge 112mm
TSS
  • TSS UPVC Butt Hinge 112mm
  • TSS UPVC Butt Hinge 112mm
  • TSS UPVC Butt Hinge 112mm
  • TSS UPVC Butt Hinge 112mm
  • TSS UPVC Butt Hinge 112mm
  • TSS UPVC Butt Hinge 112mm
FREE DELIVERY on Orders Over £60 Plus VAT
£ 9.74

£9.74 INC VAT

Show price ex. VAT

RRP from: £18.73 Saving 48.0%

48
HOURS
43
MINUTES
26
SECONDS
left for delivery on Tuesday 31 March
Variations
Select Profile Angle
0 degrees

Product Code:
TSSUBUTHIN112W

13 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

TSS UPVC Butt hinges are designed to suit most UPVC profiles. 2D adjustment with supplied Allen keys which allows for final adjustments and alignment.

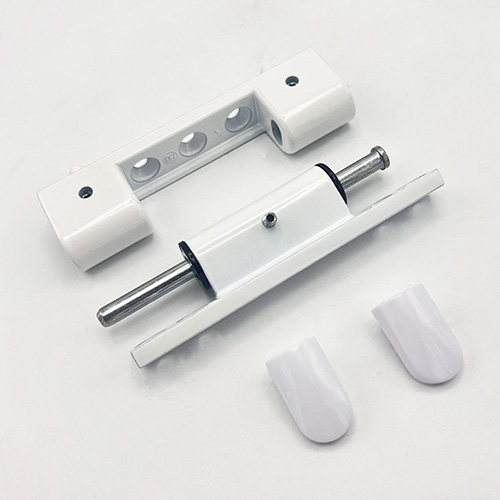

Integral fixing lugs and 7 screw fixing positions for optimal stability and strength. Security anti-lift pin which prevents pin removal and lifting out the door.

TSS - Stock More For Less

TSS believes that quality doesn't have to come with a high price tag. TSS provides high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.

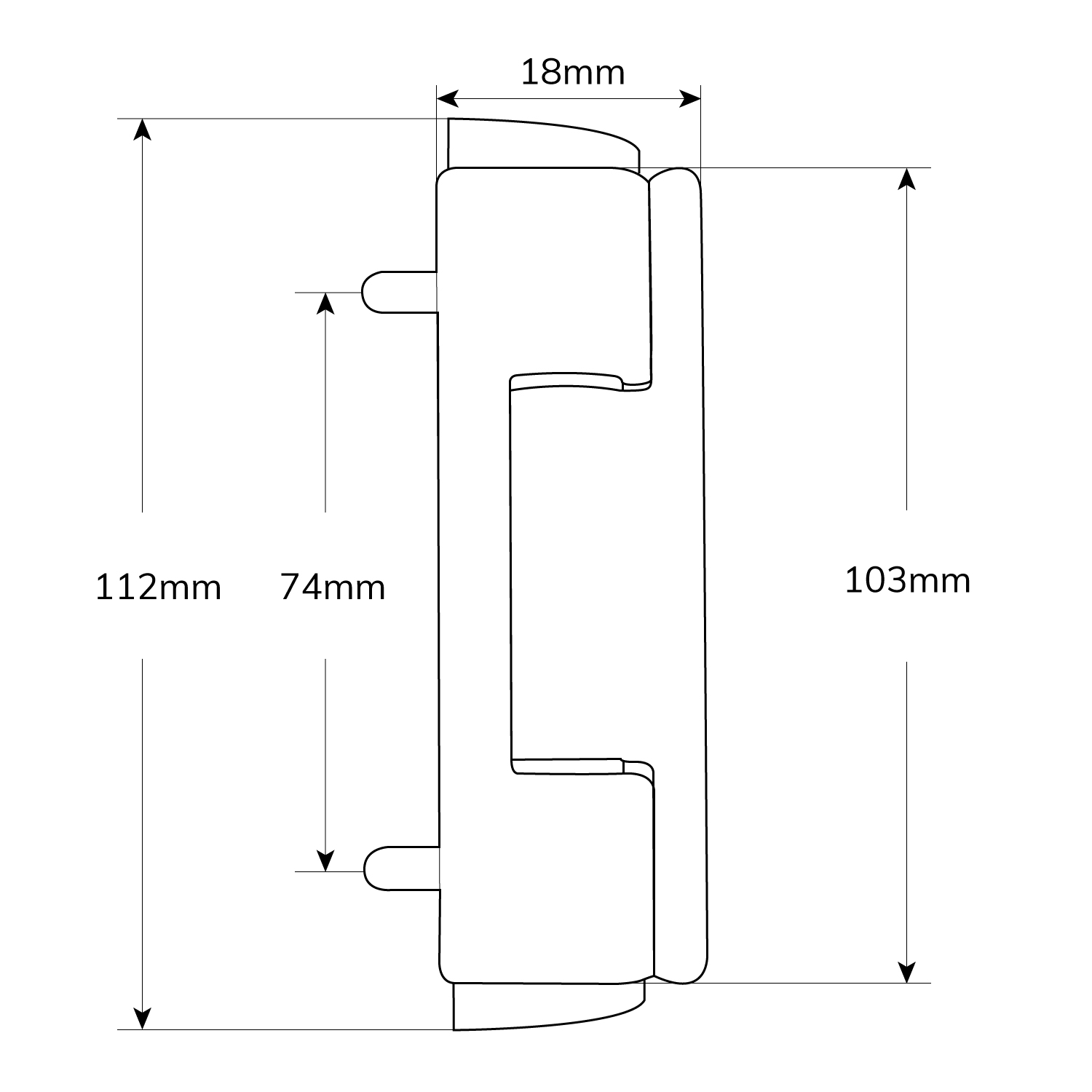

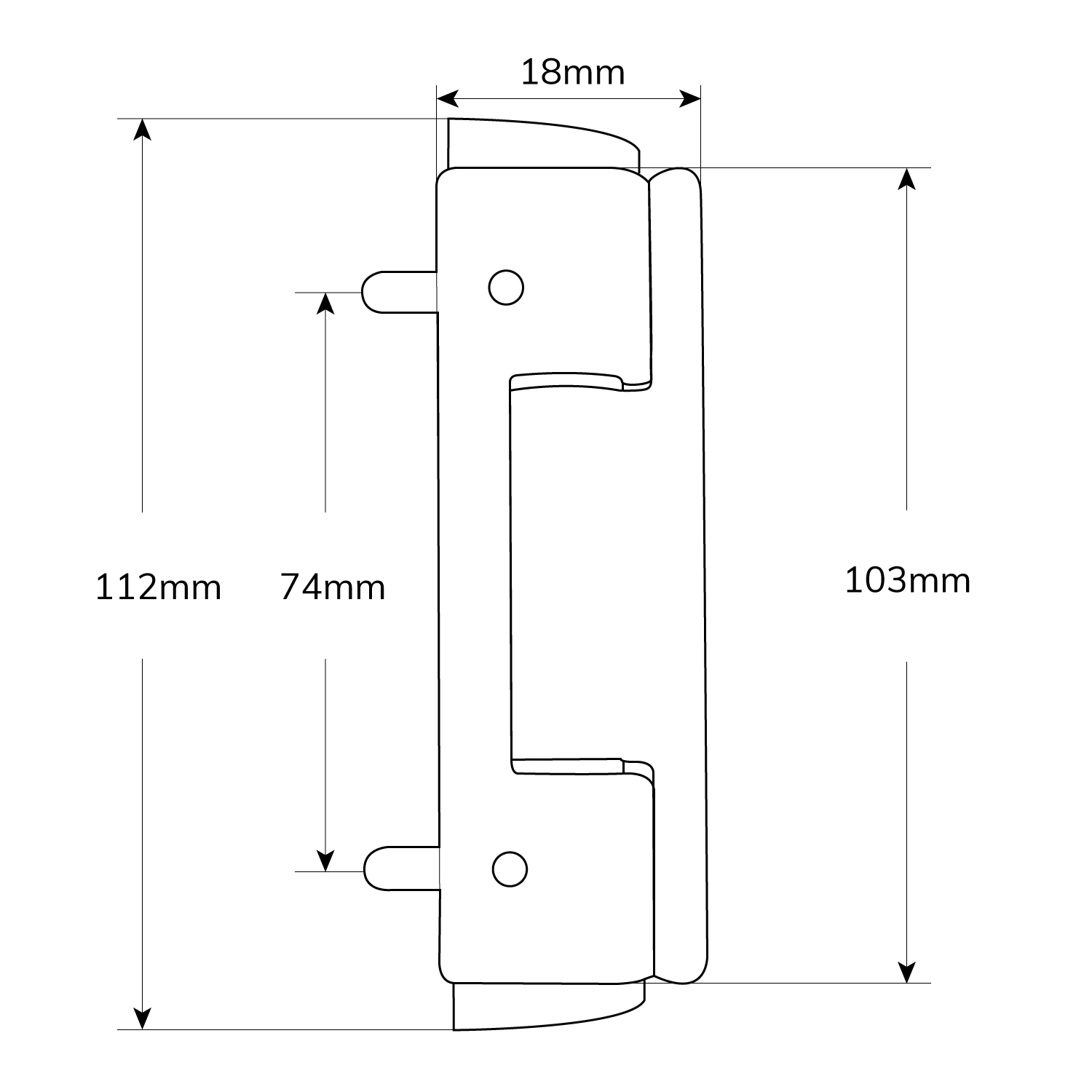

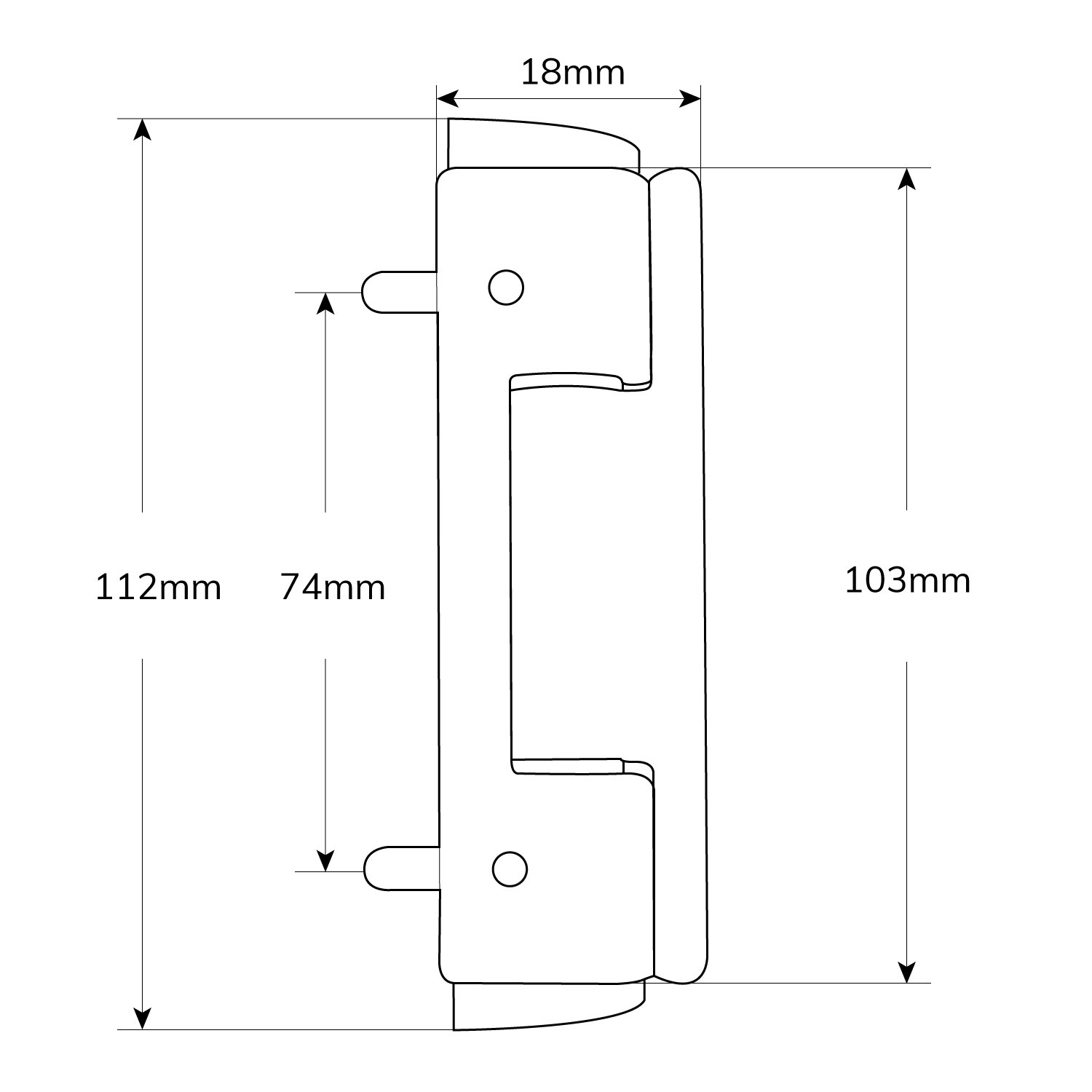

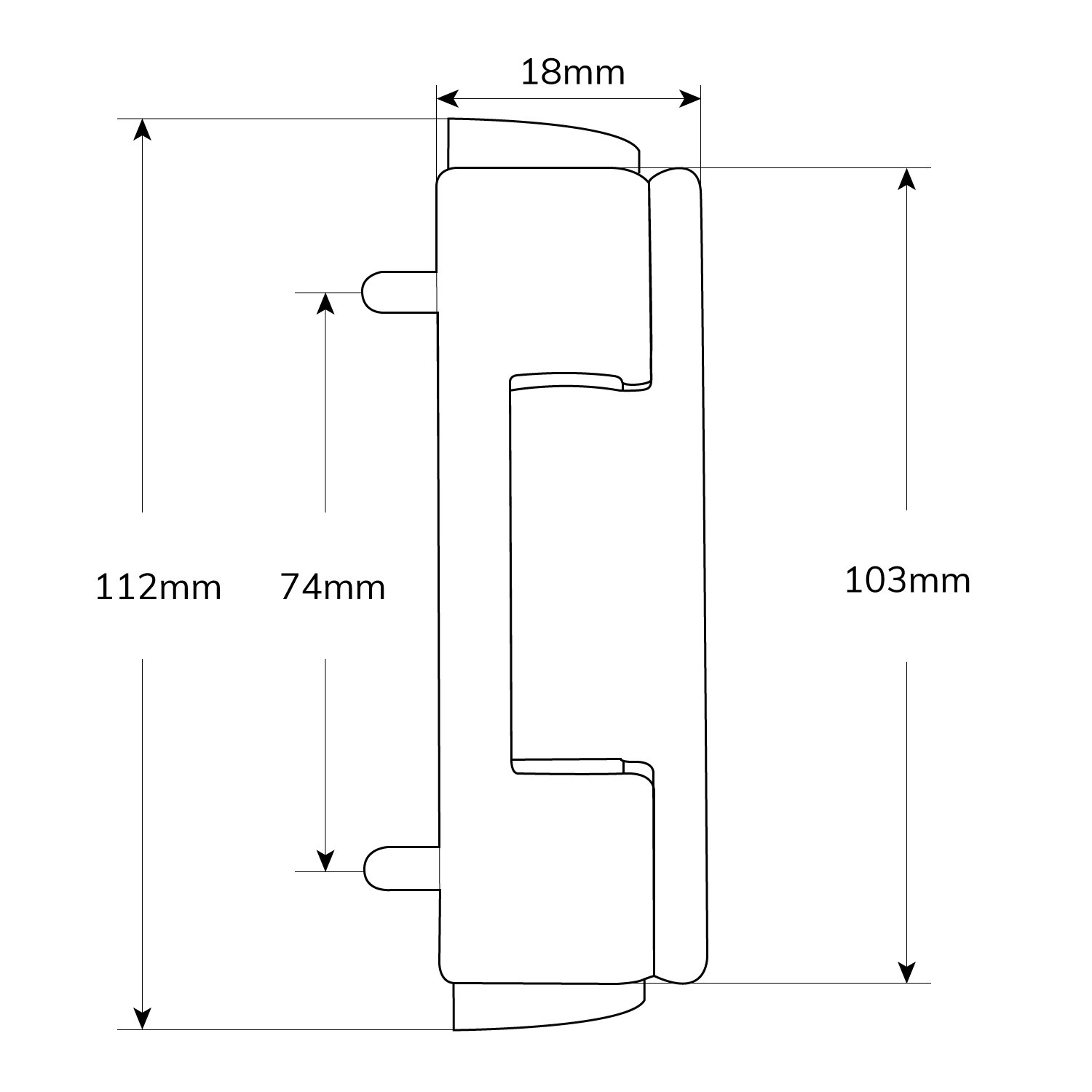

Sizes

  • Manufacturer: TSS
  • Colour: White
  • Height: 103mm (112mm with End Caps)
  • Width: 18mm
  • Distance Between Pins: 74mm
  • Screw Centres 1st to 4th: 90mm
  • Screw Centres 2nd to 3rd: 63mm
  • Salt Spray Tested to 480 Hours (BS EN 1670: Class 5)
  • Tested to 200,000 cycles
  • Tested with 3 Hinges up to 60kg Sash Weight
  • Adjustment: Horizontal Adjustment (toe & heel) of +/- 2mm
  • Suitable for 0 degree chamfer only as other options now discontinued
