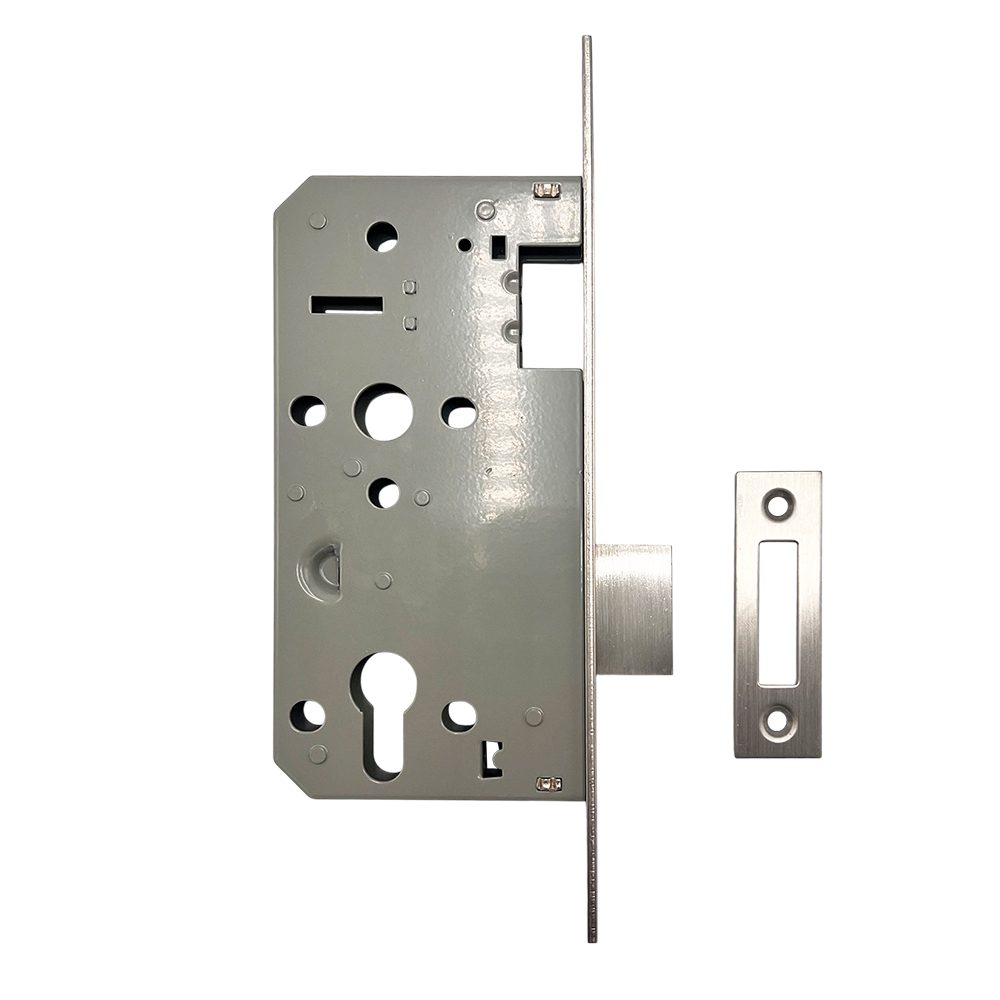

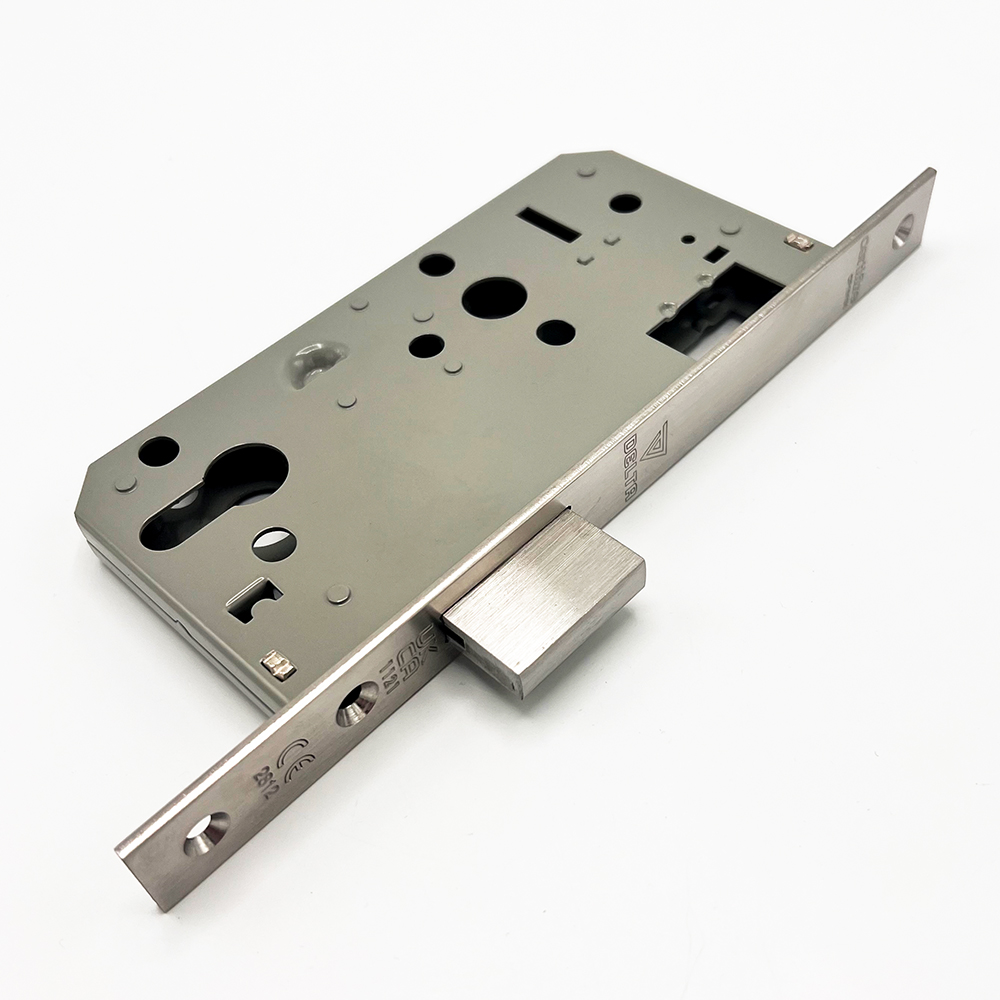

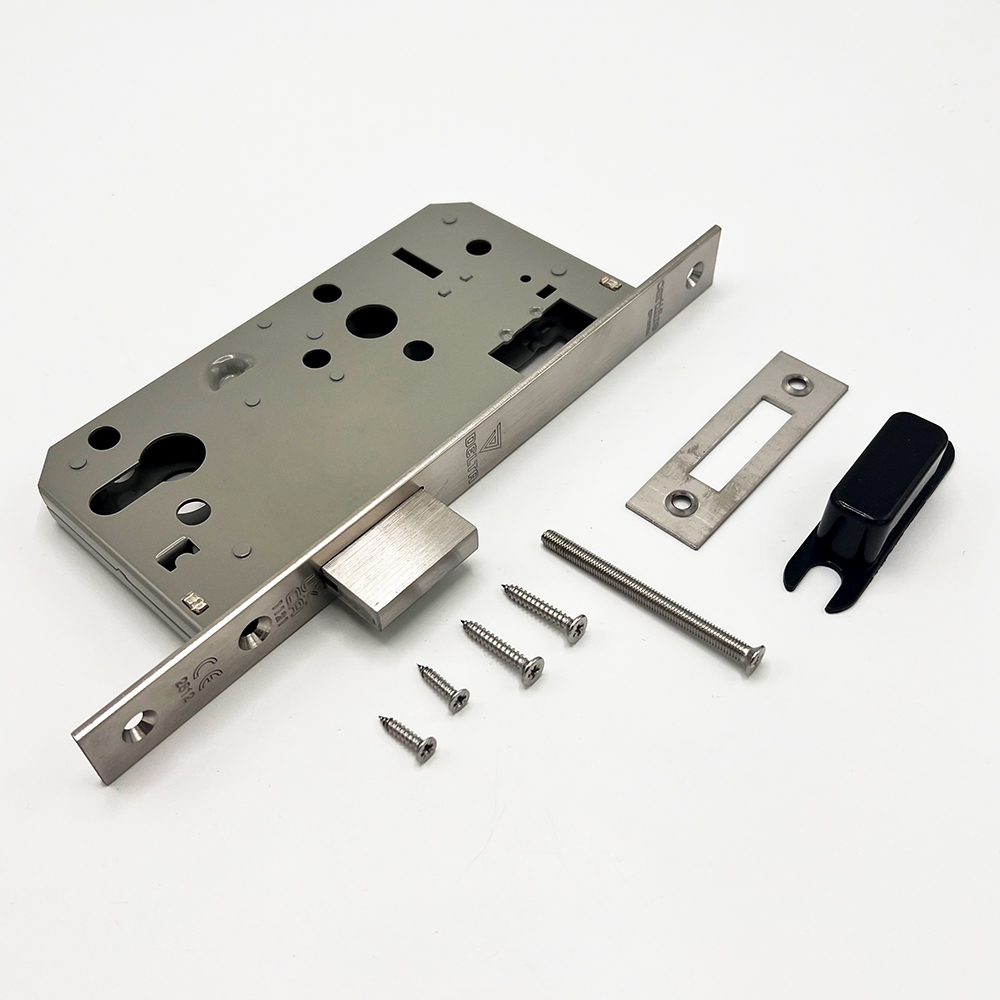

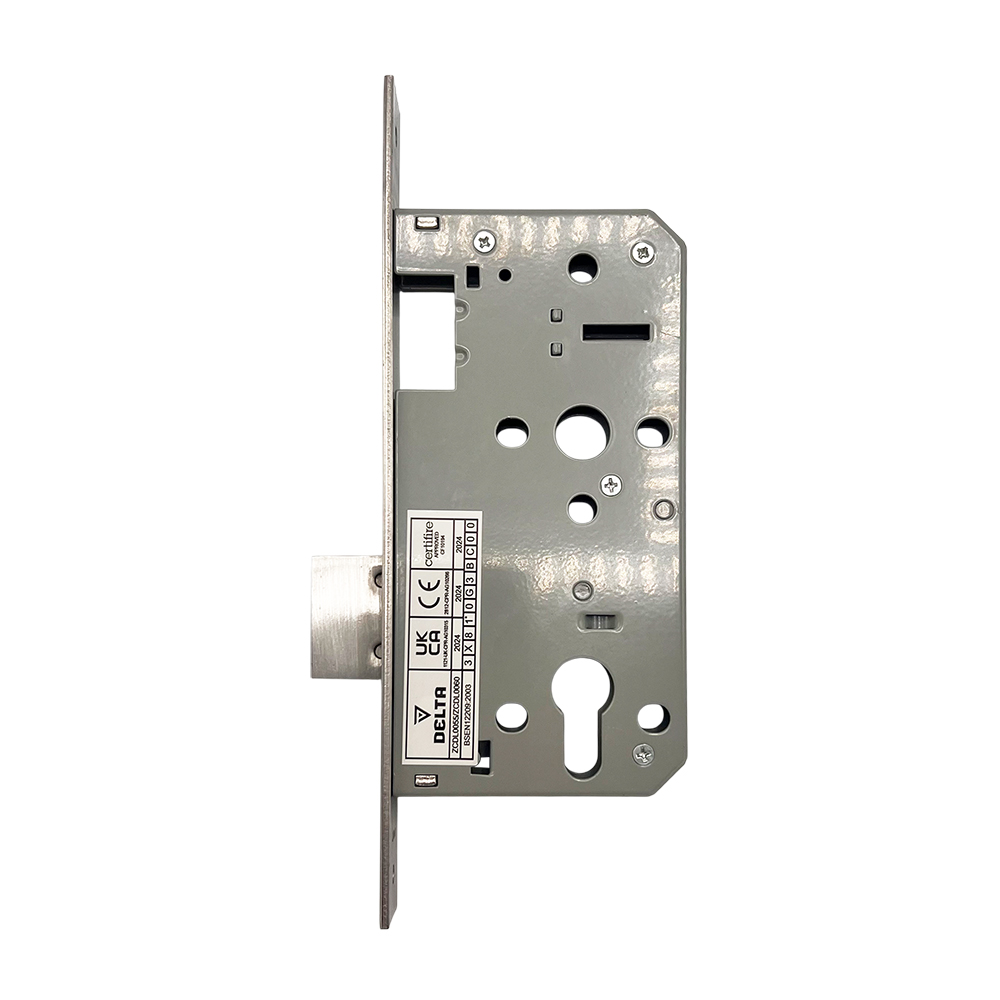

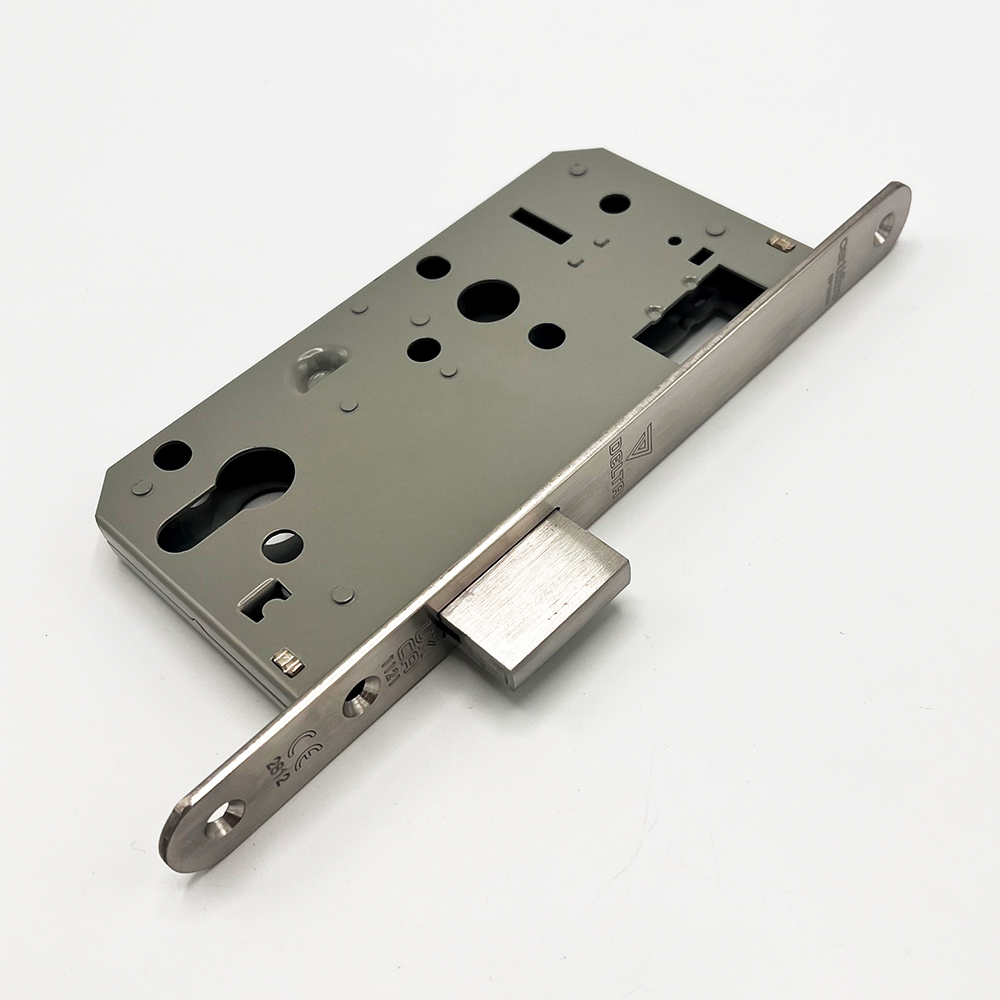

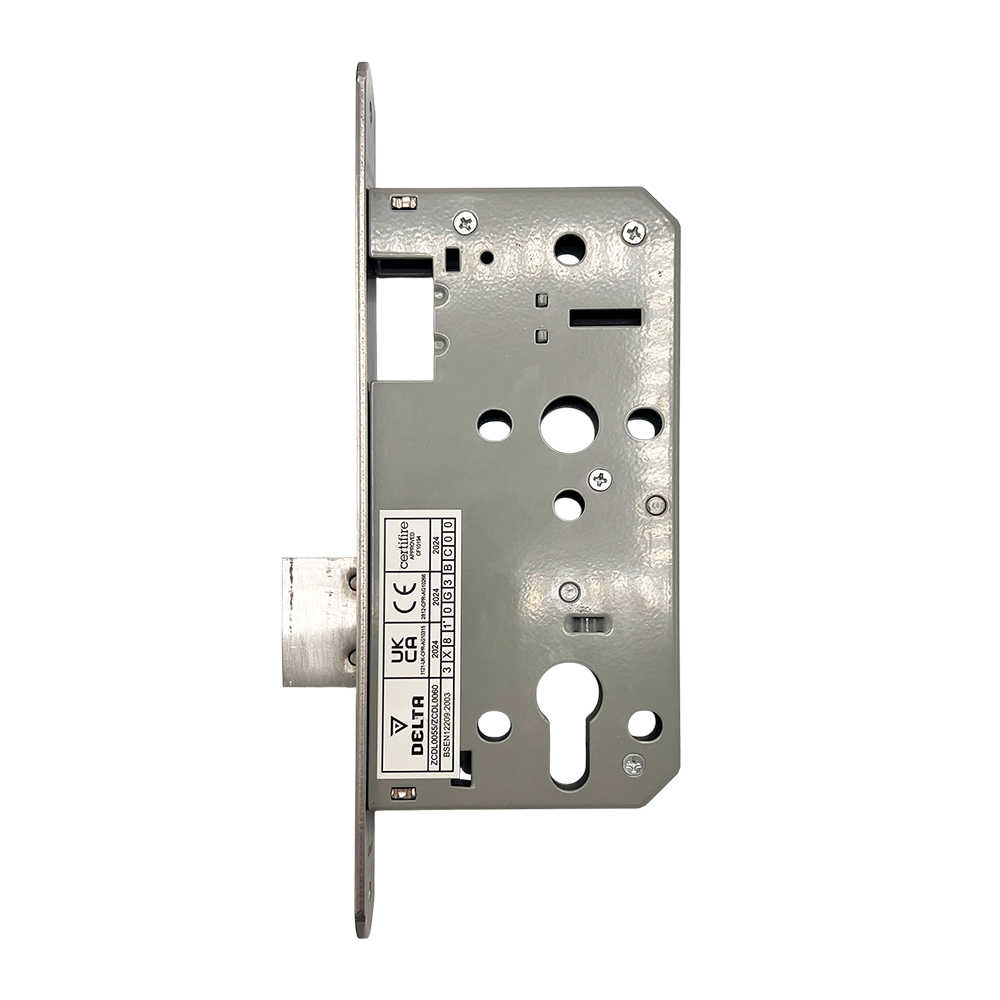

Zoo DIN Euro Mortice Deadlock Case

Zoo DIN Euro Mortice Deadlock Case is a DIN standard mortice lock.

A DIN mortice lock is a type of lock that conforms to DIN standards—a set of German engineering specifications established by the Deutsches Institut für Normung (DIN). These standards ensure uniformity in size and fitting, making DIN mortice locks compatible across a wide range of doors and hardware.

Product Features

• Available in 55mm or 60mm backset
• Stainless Steel single fixed forend, 22mm width
• Stainless Steel double throw dead bolt, 20mm
• Euro profile case
• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire rated doors supplied separately (see below table for details)

Performance Testing

Successfully tested in accordance with the requirements of BS EN12209: 2003

3 X 8 1 0 G 3 B C 0 0

Fire Testing

Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on timber fire doors up to 120 minutes and steel fire doors up to 240 minutes.

Certfication

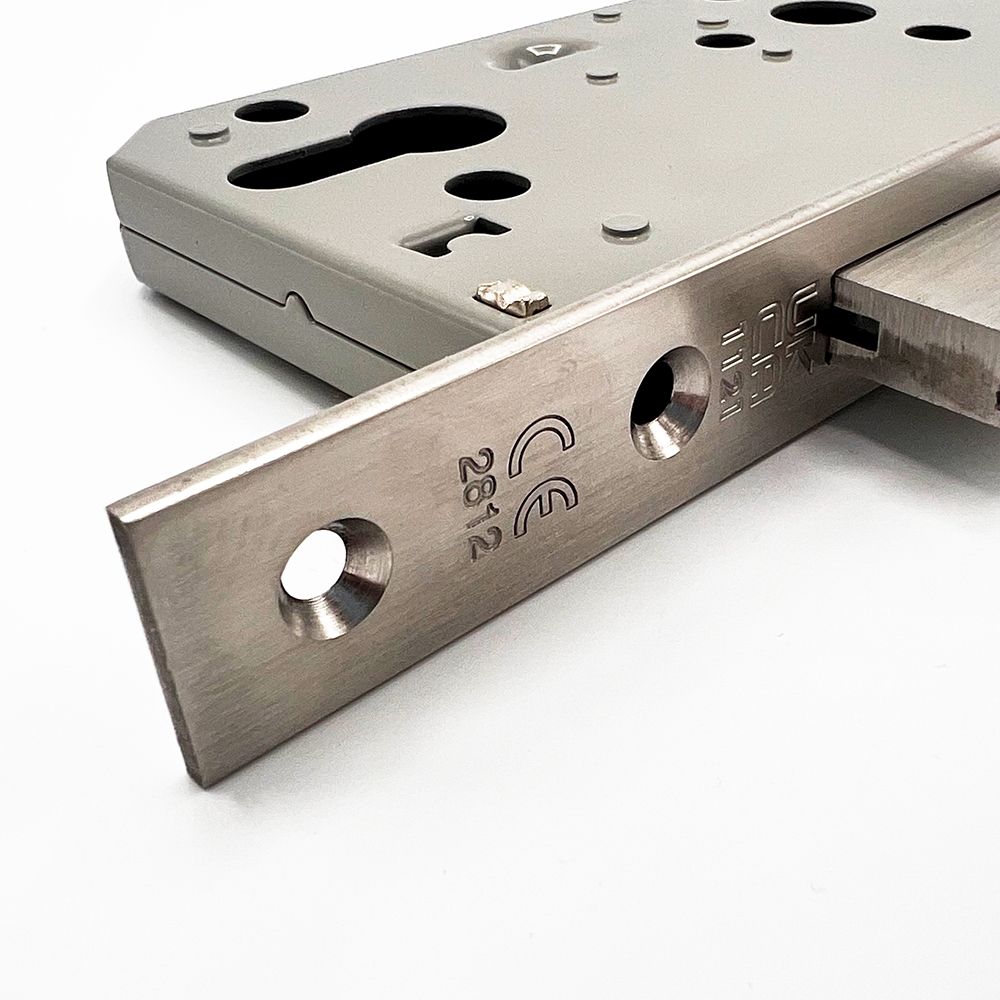

• CE marked (Certificate AG10266)
• UKCA marked (Certificate AG10315)

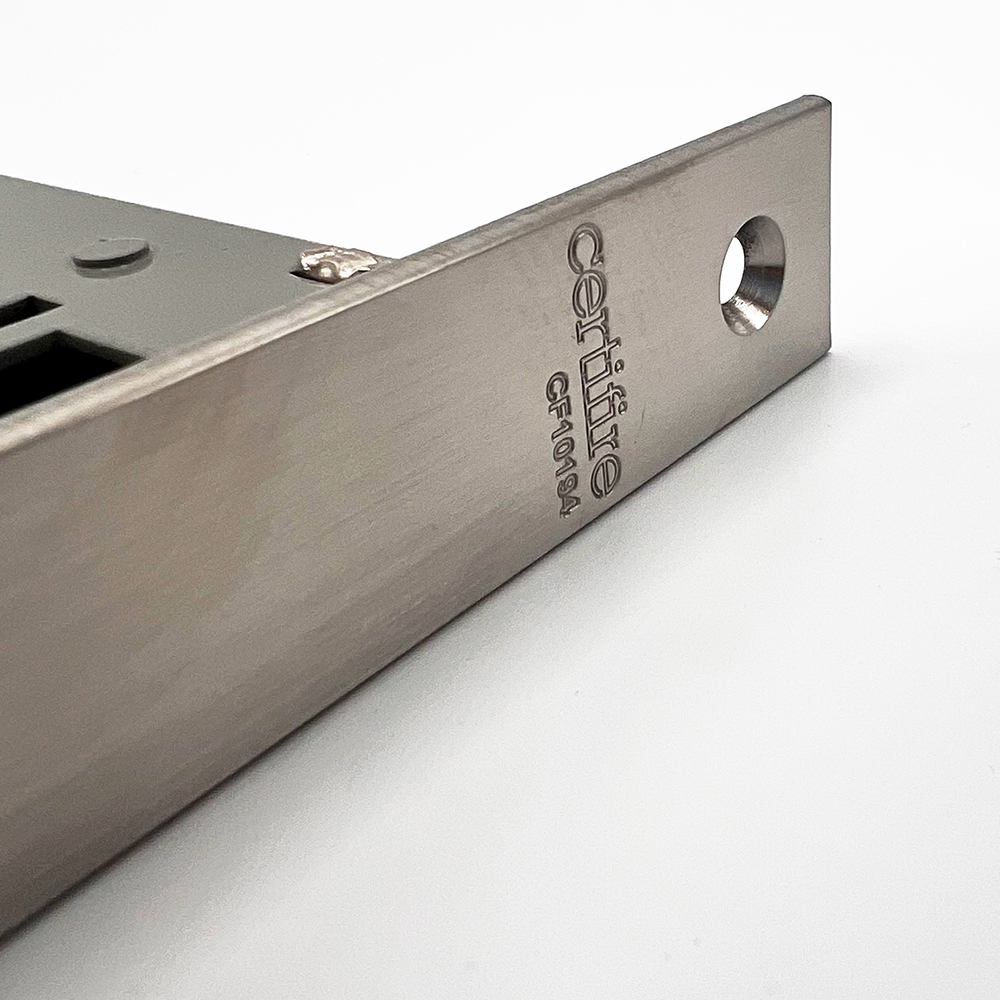

• CERTIFIRE approved (Certificate CF10194)
