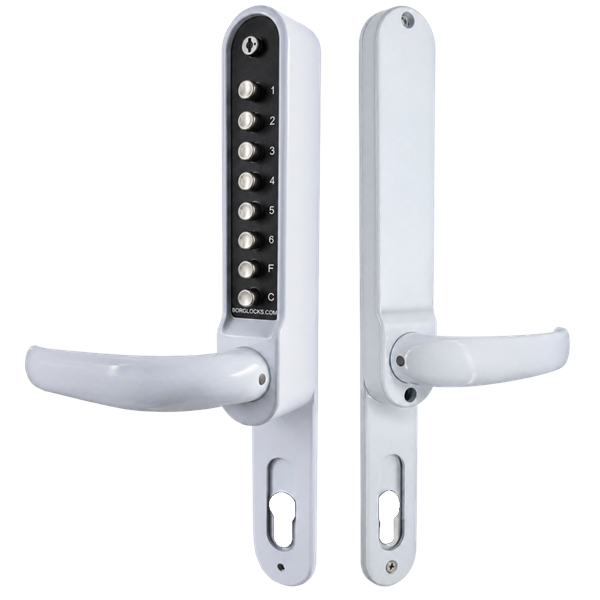

BORG LOCKS BL6100 ECP Easicode Pro Narrow Stile Digital Combination To Suit Multipoint Locks

The Borg BL6100 ECP Easicode Pro is a narrow stile mechanical digital lock designed as a retrofit access control solution for UPVC and aluminium doors fitted with multipoint locking systems. Its slim, non-handed housing features a single-column, eight-button keypad, making it particularly suitable for installations where limited door stile width prevents the use of a conventional digital lock.

Featuring Borg’s patented Easicode Pro system, the access code can be changed directly on the door in seconds without removing the keypad or dismantling the coding chamber. The patented double-button press design allows individual buttons to be entered twice within the same code, providing greater flexibility when setting the required combination. A permanently clutched, free-turning external handle offers no resistance until the correct code is entered, helping to protect the lock and multipoint mechanism against forced operation.

The BL6100 ECP incorporates a 325mm extension plate and is suitable for use with 90mm and 92mm centred multipoint locks, with 195mm fixing centres allowing it to replace many standard lever handle arrangements. A 70-degree handle rotation provides the movement required to operate multipoint locking mechanisms, while the reversible handing allows the unit to be installed on either left or right-handed doors. Suitable for internal and external applications, the lock provides convenient keyless access while retaining operation of the existing Euro cylinder and multipoint locking system.

• Narrow stile design
• Secure combination digital door lock
• Suitable for use with 90mm & 92mm centre multipoint locks
• Easicode Pro (ECP) on the door code change
• Free rotating lever handle - no resistance until correct code is entered
• Free passage mode
