Cardale Pop Up Garage Handle

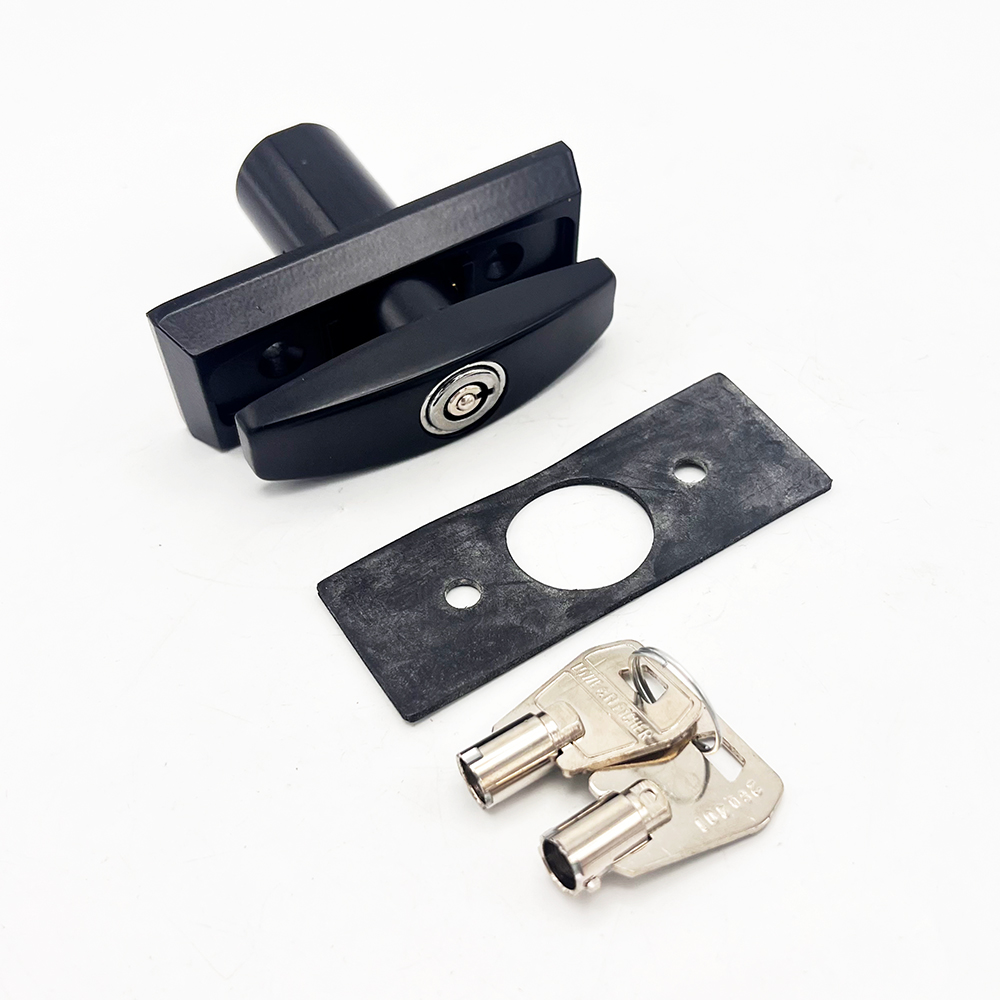

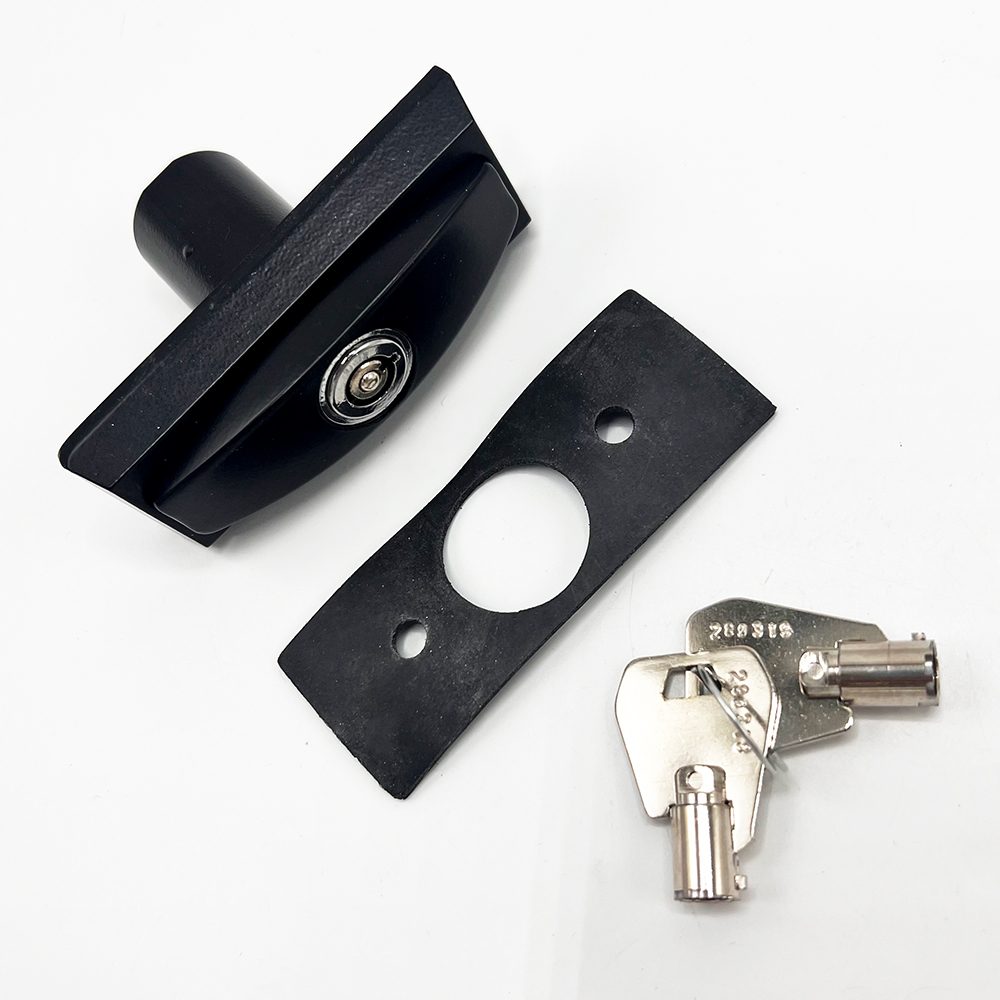

The Cardale Pop Up Garage Handle is a locking pop-up handle for garage doors. It is a face-mounted handle with an integral lock mechanism and pop-up operation for engaging and releasing door latches. The Cardale Pop Up Garage Handle is supplied with two keys.

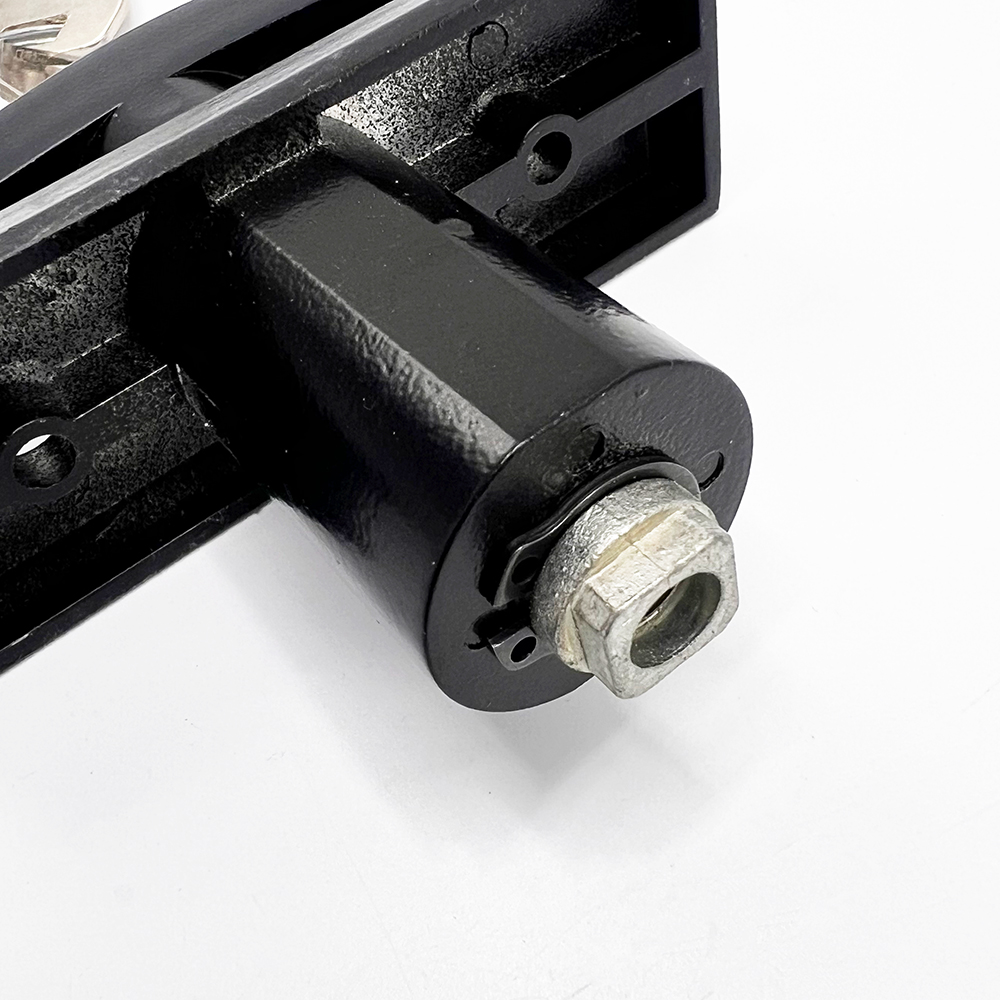

This handle assembly comprises a backplate and a pop-up grip; the backplate dimensions and screw centres are provided to determine mounting position and hole alignment. The unit operates by key actuation to lock and unlock the mechanism and by manual lifting of the pop-up grip to open the door when unlocked.

Key Features

• Brand: Cardale.
• Product type: Pop-up garage handle (locking).
• Colour: Black.
• Backplate height: 94mm.
• Backplate width: 30mm.
• Screw centres: 50mm (distance between fixing centres).
• Locking or non-locking: Locking.

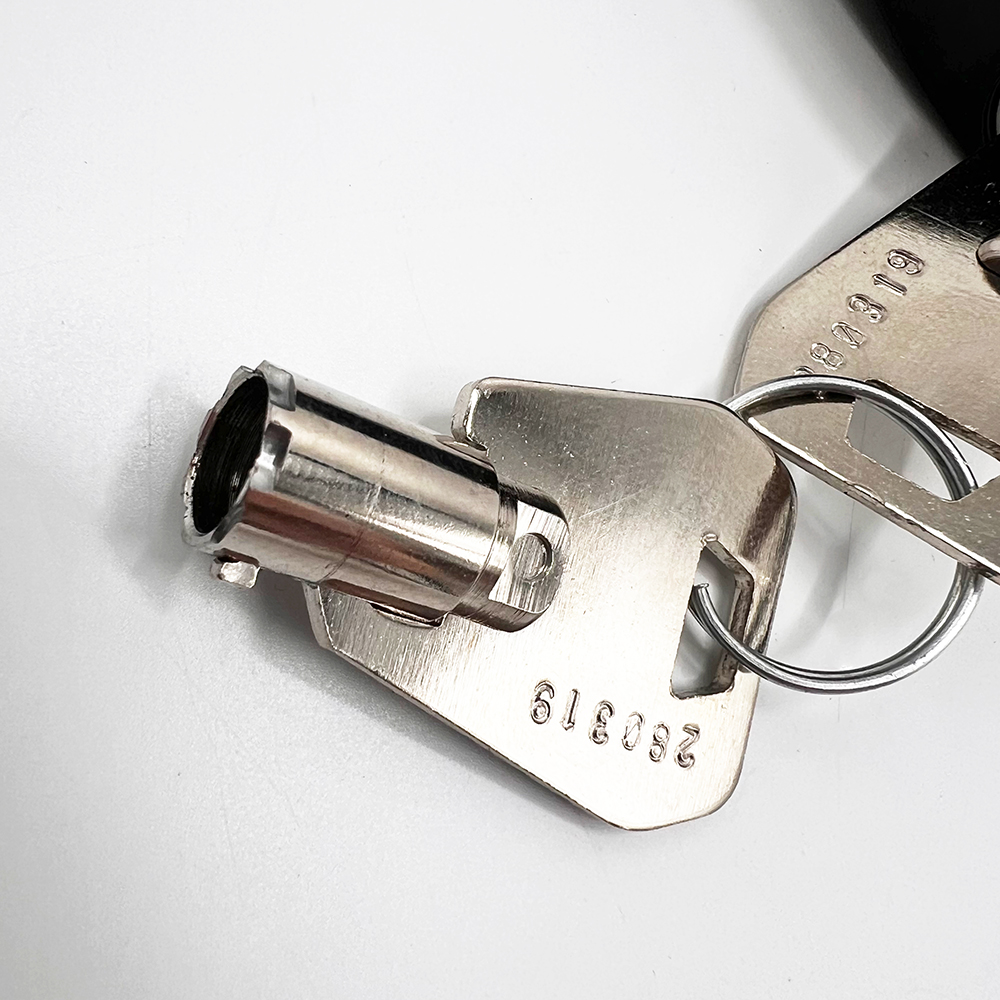

• Keys supplied: 2 keys.

Fitment & What to Check

• Verify screw centres (50mm) against the existing fixing holes or prepare new fixings to match the 50mm spacing.
• Check backplate dimensions (94mm x 30mm) for clearance against door panels, trims or any existing escutcheon.
• Confirm lock orientation and key access on the door face before installation to ensure correct handing.
• Confirm that the pop-up handle projection clears external obstructions when in the raised position.

Common Ordering Mistakes

• Ordering without confirming screw centre spacing; 50mm is required for direct replacement.
• Assuming backplate compatibility; backplate is 30mm wide by 94mm high.
• Omitting confirmation of lock cylinder type or key blank when matching existing keyed systems.
