The Cisa 11630 Electric Nightlatch Rim Lock is part of the Cisa Electric nightlatch range.
This range of Electronically operated, solenoid activated nightlatches are extremely popular on residential front doors where an access control or door entry (intercom) system is employed to allow remote unlocking of the door set. They are seen particularly often on main entrances and communal entrances to buildings of multiple occupancy. They are designed specifically for inward opening timber doors.
Electronic nightlatches can be released via an electronic Pulse. This pulse activates a solenoid which releases the Latch bolt, which then returns into the lock case under spring tension allowing the door to be opened. used in both commercial and residential settings, the locks can also be operated manually in much the same way as a standard nightlatch therefore providing a great solution for upgrading mechanical nightlatches with a similar electronic option.

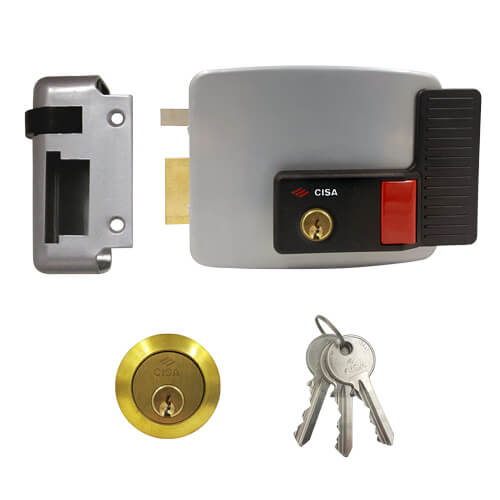

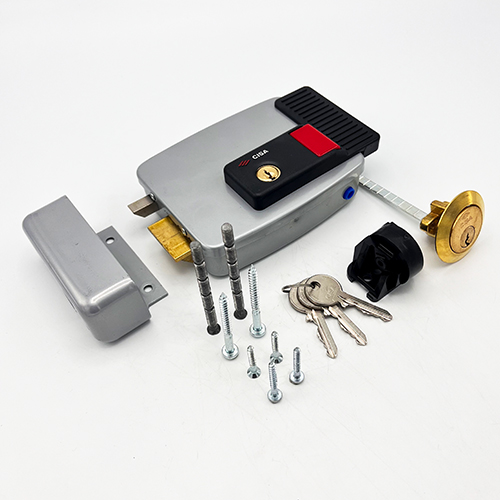

The 11630 version offers both an internal push release, and an internal override cylinder. An external Cisa rim cylinder is provided and 3 keys and a keep are supplied.
Sizes
- Key operation from the outside
- From inside press button to release latch
- Snib function allows the latch to be held back
- Backset: 60mm
- Case width: 126mm
- Case height: 103mm
- Bolt length: 14mm
- 12V AC Fail Locked
- 1.6A current
- 5 pin cylinder included
- Supplied with 3 keys
- Can also be wired into entry phone systems
- Cylinders are available on existing masterkey systems by special order
- Available in singles and 10 in an outer box
