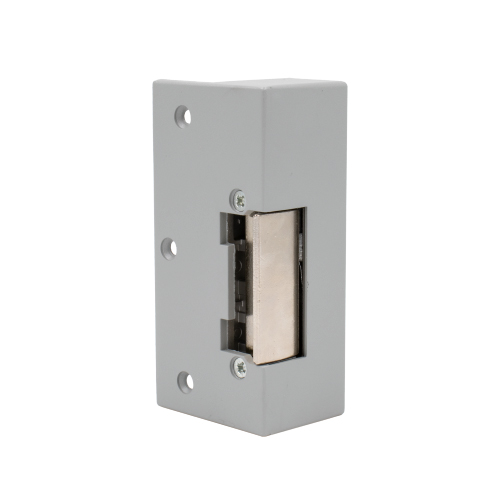

Dorcas 12v Electric Rim Release

Dorcas 12v Electric Rim Release
Lock Shop Direct
  • Dorcas 12v Electric Rim Release
  • Dorcas 12v Electric Rim Release
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£
FROM

£21.61 INC VAT

Show price ex. VAT

RRP from: £33.25 Saving 35.0%

22
HOURS
25
MINUTES
57
SECONDS
left for delivery on Tuesday 12 November
Variations
Select Operation
select
Select Colour
Grey
Select AC or DC
select
Quantity

Product Details

Product Information

Dorcas electric releases designed to suit rim locks. Available in either fail locked, secure or unlocked, safe and is suitable for low usage applications.

  • Type: Rim.
  • Style: European.
  • Jaw: None adjustable.
  • Jaw Dimensions: (H) 43mm x (W) 12mm x (D) 10mm.
  • Dimensions: (H) 105 mm x (W) 31mm x (D) 19mm.
  • Field Reversible: Fail safe/ fail secure.
  • Current Consumption: 12V AC / 12V DC.
  • Holding Force: 400kgs.
  • Latch Accommodation: 12mm.

Sizes

  • Fail locked/secure: applying current to the strike causes the jaw to pivot back, allowing the latch to clear the strike and the door to be opened from the outside
  • Fail unlocked/safe: the jaw remains locked while a current is applied to it. When the current is broken, the jaw pivots back, allowing the latch to clear the strike and the door to be opened from the outside
  • Typically, the current is controlled by an entry phone system

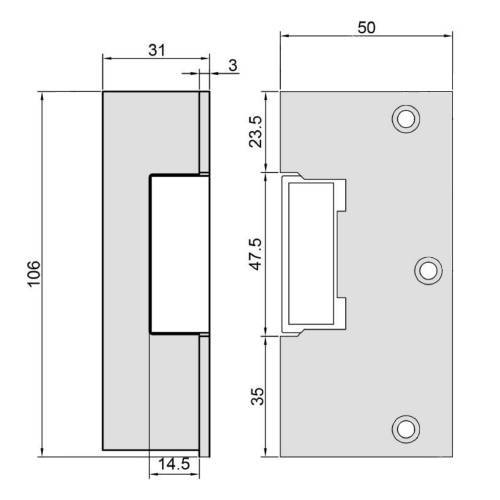

  • Height: 105mm
  • Width: 31mm
  • Depth: 19mm
  • Jaw height: 43mm
  • Jaw depth: 10mm
  • Jaw width: 12mm
  • Voltage: 12V AC or 12V DC
  • Power failure mode: Available in either fail locked/secure or unlocked/safe
  • Suits latches with 12mm maximum throw (allow for the gap between door and frame)
  • Maximum holding force is 400kg/880lbs
  • Current drawn 12V AC = 0.780 amps
  • Current drawn 12V DC = 0.15 amps
  • Suitable for low usage applications
  • Boxed in singles
