ELITE Compact Lever Operated Latch & Deadbolt Twin Spindle Designed To Accept Optional Shootbolts - 2 Hook 4 Roller

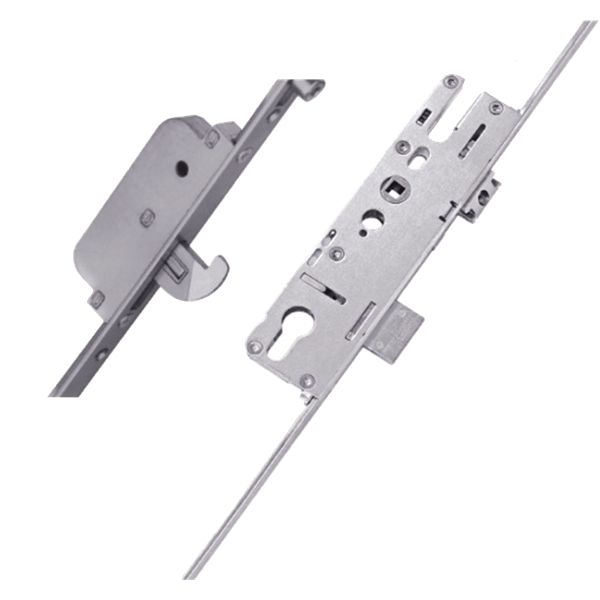

The ELITE Compact Lever Operated Latch & Deadbolt Twin Spindle Designed To Accept Optional Shootbolts - 2 Hook 4 Roller has 35mm backset, 92mm & 62mm centres, 200mm case height, 54mm case width, is twin spindle and has a latch & deadbolt centre case.

This compact lock is ideal for applications where a shorter rebate is required, making it particularly suitable for French Door installations. The lock is capable of being cropped down to a minimum height of 1860mm without a shootbolt and 1805mm when used with a shootbolt, offering versatile options for different door sizes and designs.

It has twin spindles meaning that it can be used as either a straight forward lever/lever operation (using just the 92mm spindle) or as a split spindle (lever/pad) operation when using both the 92mm and 62mm spindles.


Accreditation
These products have corrosion resistance to EN1670: Grade 5 (480 hours NSS) & have a 10 Year Guarantee.

Identification
There is a rectangular indent in the locking point hook visible when extended.

Gearbox
The latch & deadbolt gearbox has a twin spindle, a case height of 200mm and a case width of 54mm.

Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 2 hook and 4 roller locking points.

Shootbolts
This unit can be fitted with optional shootbolts.

Faceplate
16mm wide faceplate, ideal for use on UPVC & composite applications and is 2.075m long.

Locking Point Distances
Locking Point Distance A = 311mm
Locking Point Distance B = 379mm
Locking Point Distance C = 473mm
Locking Point Distance D = 542mm
Locking Point Distance E = 641mm
Locking Point Distance F = 689mm

Croppable
This full length unit is croppable to allow the strip height to be reduced to suit the door it is being installed into.

Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.

Spung/Unsprung
The gearbox is unsprung and must be installed with sprung handles and / or a compatible spring cassette to ensure correct operation and reliable lever return.

Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.

• A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
• Designed to accept optional shootbolts
• Dual spindle night latch as standard, providing versatile handle operation
• Euro profile lock case for use with euro cylinders
• 16mm faceplate for a wide range of door types
• Elite Silbear Surface Protection exceeding 480 hours salt spray resistance (EN1670 Grade 5)
