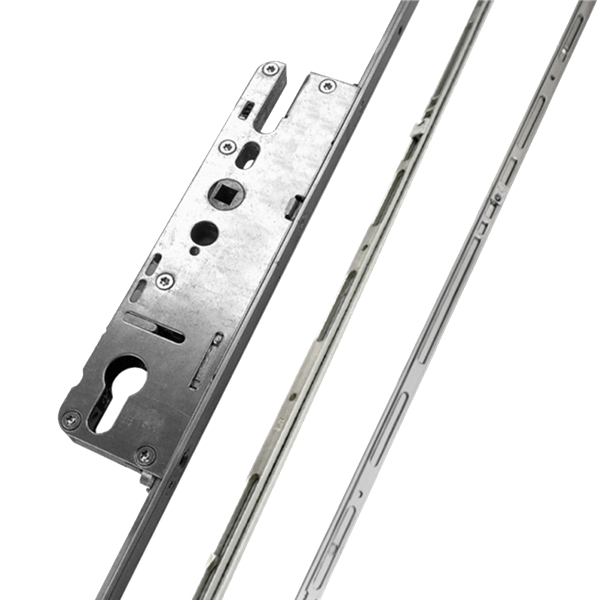

ELITE French Door Slave Lever Operated Latch & Deadbolt Single Spindle

The ELITE French Door Slave Lever Operated Latch & Deadbolt Single Spindle has 45mm backset, 92mm centres, 200mm case height, 64mm case width, is single spindle and has a slave centre case.

Fully Sold Secure accredited, this lock meets rigorous security standards, offering trusted protection against forced entry.

Finished with Elite Silbear Surface Protection, the lock provides outstanding corrosion resistance, exceeding 480 hours salt spray exposure (EN1670 Grade 5) for long-lasting durability in all environments. Backed by a 10 Year Mechanical Guarantee, the ELITE French Door Slave Lock delivers a secure and durable solution for modern French doors.


Accreditation
These products have corrosion resistance to EN1670: Grade 5 (480 hours NSS), have a 10 Year Guarantee & is Secured By Design accredited.

Gearbox
The slave gearbox has a single spindle, a case height of 200mm and a case width of 64mm.

Shootbolts
This unit can be fitted with optional shootbolts.

Faceplate
16mm wide faceplate, ideal for use on UPVC & composite applications and is 1805mm long.

Croppable
This full length unit is croppable to allow the strip height to be reduced to suit the door it is being installed into.

Handing
Not applicable

Spung/Unsprung
The gearbox is sprung and incorporates an internal spring mechanism to assist with lever return, removing the need for sprung handles or a separate spring cassette.

Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock

• A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
• Bullet shootbolt available in standard and reverse action for additional security
• 16mm faceplate for a wide range of door types
• Elite Silbear Surface Protection exceeding 480 hours salt spray resistance (EN1670 Grade 5)
• 10 Year Guarantee
• Suitable for both residential and commercial French door installations
