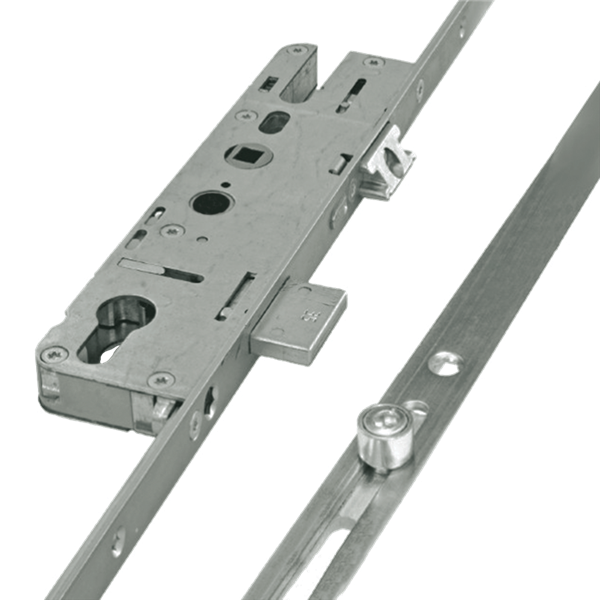

ELITE Standard Lever Operated Latch & Deadbolt Single Spindle - 4 Roller

The ELITE Standard Lever Operated Latch & Deadbolt Single Spindle - 4 Roller has 35mm backset, 92mm centres, 226mm case height, 54mm case width, is single spindle and has a latch & deadbolt centre case.

It is designed to cover both standard and tall door applications and is finished with Elite Silbear Surface Protection, this lock exceeds 480 hours salt spray resistance (EN1670 Grade 5), making it highly resistant to corrosion and ideal for exposed environments.


Accreditation
These products have corrosion resistance to EN1670: Grade 5 & have a 10 Year Guarantee.

Gearbox
The latch & deadbolt gearbox has a single spindle, a case height of 226mm and a case width of 54mm.

Additional Locking Points
In addition to the locking points within the gearbox, the full length strip has 4 roller locking points.

Shootbolts
This unit can be fitted with optional shootbolts.

Faceplate
16mm wide faceplate, ideal for use on UPVC & composite applications and is 2.075m long.

Locking Point Distances
Locking Point Distance A = 370mm
Locking Point Distance B = 370mm
Locking Point Distance C = 820mm
Locking Point Distance D = 905mm

Croppable
This full length unit is croppable to allow the strip height to be reduced to suit the door it is being installed into.

Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.

Spung/Unsprung
The gearbox is sprung and incorporates an internal spring mechanism to assist with lever return, removing the need for sprung handles or a separate spring cassette.

Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.

• A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
• Single spindle operation
• Euro profile lock case for use with euro cylinders
• 16mm faceplate for a wide range of door types
• Elite Silbear Surface Protection exceeding 480 hours salt spray resistance (EN1670 Grade 5)
• 10 Year Guarantee
