£56.60 INC VAT
RRP from: £79.16 Saving 28.5%

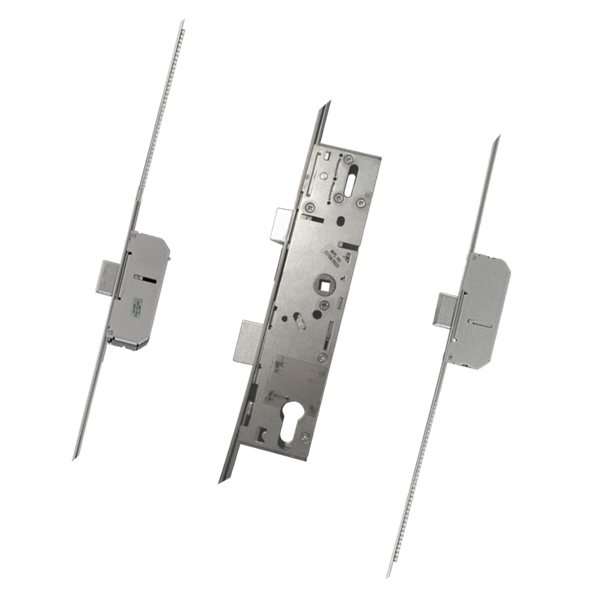

The ERA 2 Linear Deadbolt Split Spindle Latch and Deadbolt Multipoint Lock with 16mm Faceplate is available with a 35mm or 45mm backset, 92mm centres, 220mm case height, 53mm or 63mm case width, split spindle operation and a latch and deadbolt centre case. The 2 linear deadbolts have an 18mm throw. AccreditationThis product complies with PAS24. IdentificationThe faceplate is stamped with the ERA logo and features distinctive linear deadbolt locking points. GearboxThe latch and deadbolt gearbox features a split spindle, with a case height of 220mm and a case width of 53mm or 63mm, depending on the backset. Additional Locking PointsIn addition to the locking points within the gearbox, the full length strip incorporates 2 linear deadbolt locking points. ShootboltsThis unit can be fitted with optional shootbolts. FaceplateThe 16mm wide faceplate is ideal for use on UPVC applications and has an overall length of 2250mm. Locking Point DistancesLocking Point Distance A = 575mmLocking Point Distance B = 668mmCroppableThis full length unit is croppable, allowing the strip height to be reduced to suit the door into which it is being installed. HandingThe latch can be reversed by removing the latch screws, withdrawing the latch, rotating it to the opposite hand and refitting the screws. Sprung/UnsprungThe gearbox is sprung and incorporates an internal spring mechanism to assist with lever return, removing the need for sprung handles or a separate spring cassette. OperationLift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push down on the lever.
