£106.26 INC VAT
RRP from: £148.62 Saving 28.5%

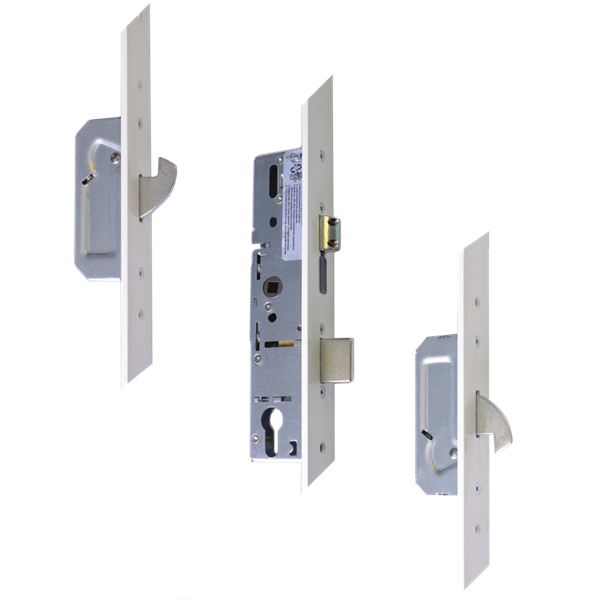

The ERA 2 Hook 45mm BS 1770mm Multipoint Lock 6345-687-85ZA-RH features a 45mm backset, 92mm centres, 220mm case height, 63mm case width, split spindle operation and a latch and deadbolt centre case. IdentificationThe faceplate is stamped with the ERA logo. GearboxThe latch and deadbolt gearbox features a split spindle, with a case height of 220mm and a case width of 63mm. Additional Locking PointsIn addition to the locking points within the gearbox, the full length strip incorporates 2 hook locking points. FaceplateThe 20mm wide radius faceplate is ideal for use on composite and timber applications and has an overall length of 1770mm. Locking Point DistancesLocking Point Distance A = 875mmLocking Point Distance B = 700mmCroppableThis unit cannot be cropped on site. Please check the required unit length before purchasing. HandingThe latch can be reversed by removing the latch screws, withdrawing the latch, rotating it to the opposite hand and refitting the screws. Sprung/UnsprungThe gearbox is sprung and incorporates an internal spring mechanism to assist with lever return, removing the need for sprung handles or a separate spring cassette. OperationLift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push down on the lever.
