EXIDOR 322SE Euro Outside Access Device

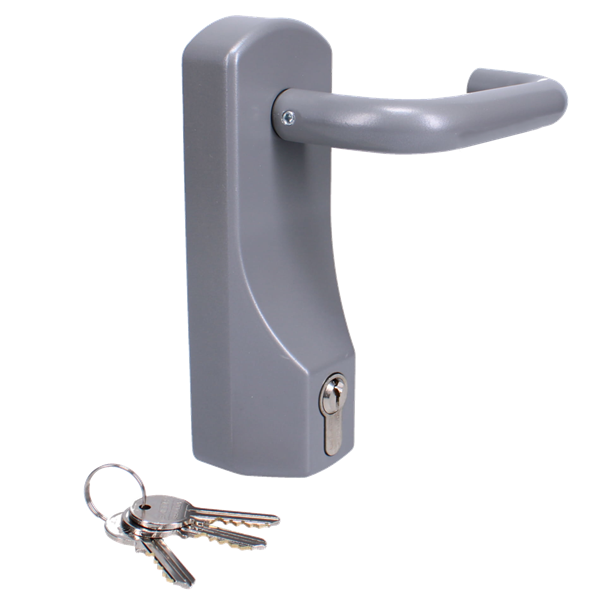

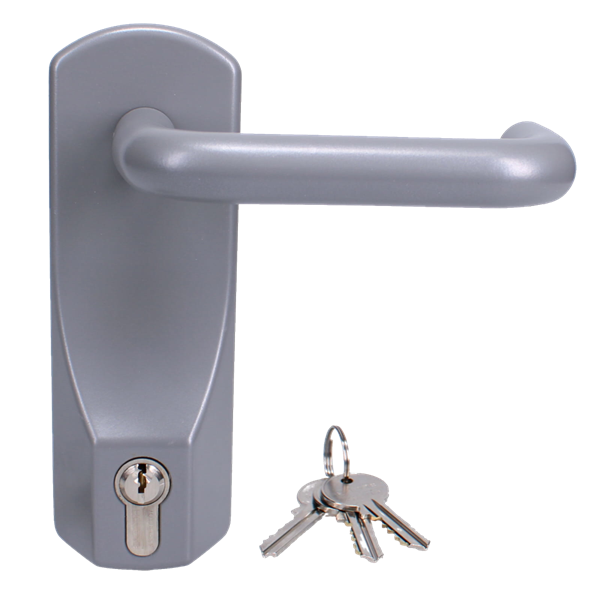

The Exidor 322SE, also known as the 322EC, is a lever operated outside access device designed to provide authorised external access through doors fitted with compatible Exidor panic and emergency exit hardware. The unit is supplied complete with a 45mm Euro profile cylinder and 3 keys and meets the dimensional requirements of BS 8300 and Approved Document M, making it suitable for accessible door applications.

The 322SE is suitable for use with Exidor 200 and 300 series products and can be fitted to doors up to 55mm thick. Its non-handed design allows installation on left or right handed doors, while the same fixing points as the Exidor 302 outside access device make it suitable for straightforward retrofit applications. The external lever incorporates a special shear screw designed to break under excessive force, helping to protect the internal operating mechanism.

The Exidor 322SE is Certifire approved under reference CF389, with fire testing covering up to 1 hour on timber fire doors and up to 2 hours on metal fire doors. As this product is fire tested, it must be installed in accordance with the manufacturer's instructions and used with all relevant associated products where required.

• Non handed
• Meets the dimensional requirements of BS8300 and approved Document M (DDA)
• Lever is supplied with special shear screw designed to break under excessive force
• Surface mounted on the outside of the door using three concealed machine screws
• Same fixing points as the 302 OAD - easy retro fit
• Supplied as standard for doors up to 55mm thick
