Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors

Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors
Exidor
  • Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors
  • Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors
  • Exidor FD322 Outside Access Device - Lever Handle with Euro Cylinder - For Timber or Metal Doors
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 282.90

£282.90 INC VAT

Show price ex. VAT

RRP from: £392.30 Saving 28.0%

41
HOURS
14
MINUTES
31
SECONDS
left for delivery on Tuesday 27 February
Variations

Product Code:
FD322ES

9 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

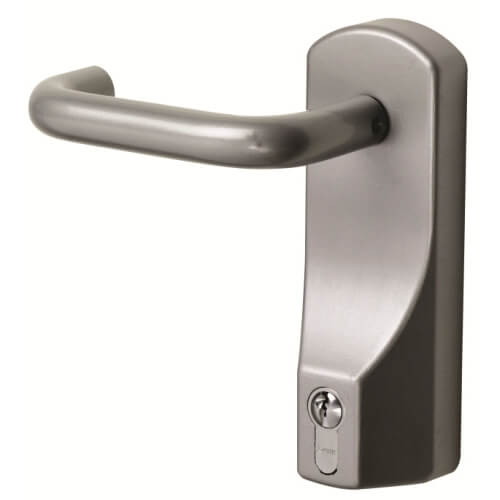

Exidor 322 Outside Access Device for Timber or Metal doors.

Lever version with euro cylinder.

  • Operation:
  • When locked ,the lever is disengaged from the mechanism and still pulls down therefore preventing unauthorised entry.
  • When unlocked, the lever,spindle and mechanism engage allowing the shoot bolts,latch or pullman latches to be withdrawn from outside of the door.
  • Once the door is opened from the inside or outside the lever remains unlocked until re-locked with a key - The unit is NOT self locking.

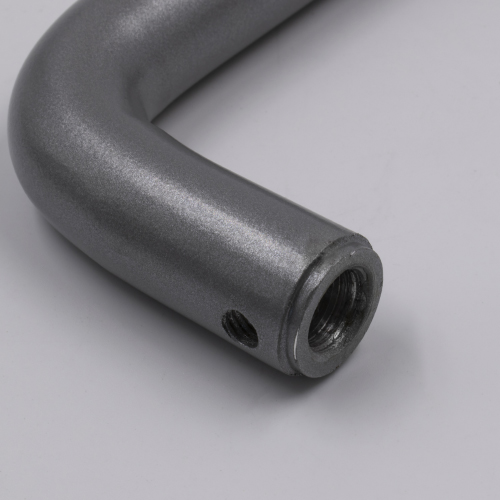

  • Lever variant is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break protecting the mechanism, the shear pin can then be replaced.

Sizes

  • Height: 175mm.
  • Width: 60mm.
  • Projection: 88mm.
  • Lever Length: 135mm
  • Suits doors up to 55mm thick.
  • Supplied with a 3010 half euro cylinder with 3 keys, adjustable cam and rear entry retaining screw.
  • Suggested replacement cylinder code: FD302CYL (Non Restricted).
  • Can be incorporated into a masterkey system or keyed alike suite in-house.(the euro cylinder will require replacing).
  • Supplied with fixings to suit timber or metal doors.
  • Boxed.

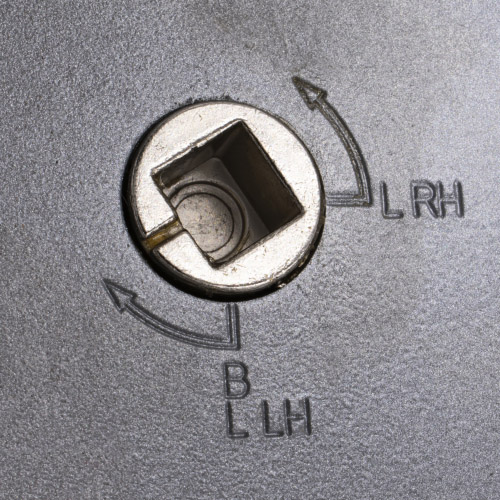

  • Non handed(Lever is reversible).
  • Surface mounted on the outside of the door using machine screws.
