Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock

Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
Fuhr
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
  • Fuhr 856 Type 4 Latch Deadbolt 4 Hooks Lift Lever Multipoint Door Lock
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 187.73

£187.73 INC VAT

Show price ex. VAT

RRP from: £264.88 Saving 29.0%

01
HOURS
00
MINUTES
20
SECONDS
left for delivery on Monday 14 October
Variations
Select Backset
35mm
Select Faceplate
Flat 16mm - Square Ends
Select Operation
Lift lever

Product Code:
FU856T435

3 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

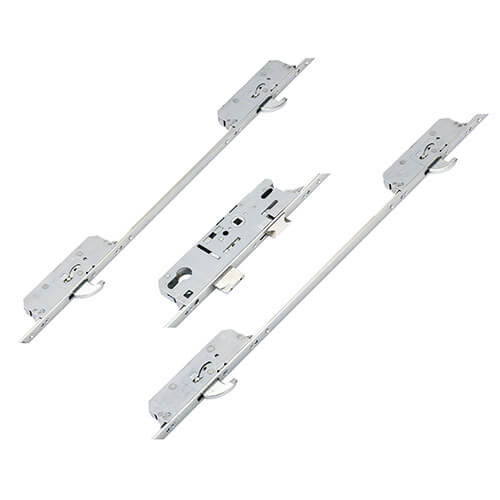

This Fuhr 856 - Lift Lever multipoint door lock features 4 Hooks, 1 Deadbolt & 1 Latch.

The 4 hook version of this popular Fuhr lock suitable for timber or UPVC.

Fuhr 856 series multipoint door locks are most commonly fitted to UPVC doors but suit all door types. These UPVC door locks feature a solid spindle, lift lever (Fuhr call it lever operated) function, where the handle must be lifted to engage the locking points.

Fuhr UPVC door locks are available in a range of different versions, all of which start life as the same platform. Hooks, rollers and other locking points may be in different positions, but the locks are otherwise the same.

Identifying a Fuhr lock is easiest once it has been removed from the door. The gearbox is distinctive and once you've seen one Fuhr lock, you'll be sure to recognise another. Its worth noting that there are some subtle differences between the 856 (lift lever), 859 (split spindle) and 855 (keywind) multipoint door lock gearboxes, but they are all recognisable as made by Fuhr. Almost all Fuhr locks will have the name stamped on the faceplate, but a reliable way to identify the lock is the triangular shape at the top of the gearbox, adjacent to where the top fixing screw connects to the faceplate.

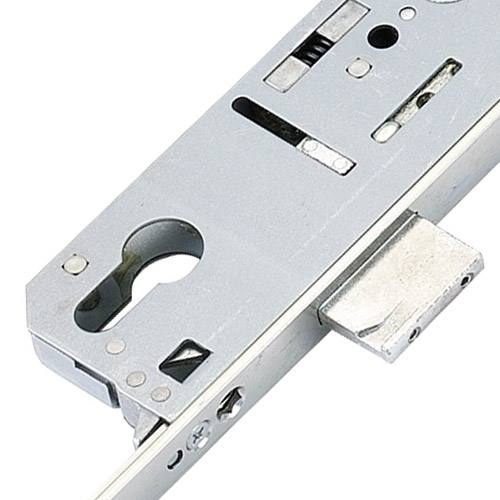

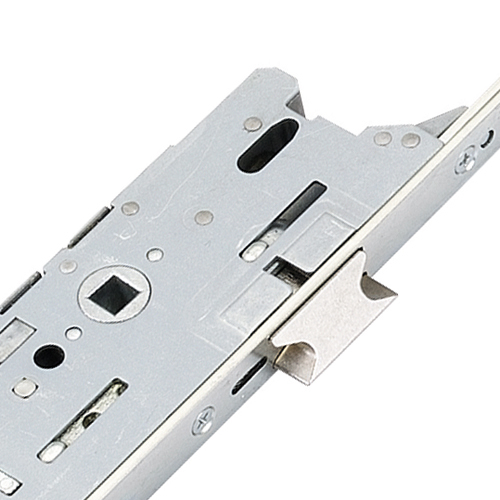

Fuhr multipoint door lock gearboxes feature a deadbolt which throws 20mm, except on 25mm and 30mm backset locks, where it throws 14mm. The gearbox measures 220mm x width + 18mm. The latch and deadbolt are both 31mm high and there is 61mm between the bottom of the latch and the top of the deadbolt. Gearboxes are fixed to faceplates with 3 screws. The distance from the top screw to the middle screw is 91mm and the distance from the middle to bottom screw is 108mm.

Fuhr locks feature a ball bearing and spring pre-fitted. There is a tiny notch on the sliding internal strip that the ball bearing engages (under spring tension) and give a more positive locking feel when handle operated. If you try a lock without this spring and ball bearing fitted, you'll notice the difference. Some replacement gearboxes on the market are sold without the ball bearing and spring, but all of Duffells' replacement Fuhr gearboxes come with these pre-fitted for a direct swap.

When replacing an existing Fuhr multipoint lock or gearbox, you may find that the latch differs. This can cause problems when the latch locates in the keep. Old versions of Fuhr multipoint lock gearboxes had a latch that was 28mm high, whereas newer versions are 33mm high. If the latch on the old lock is not damaged, it is possible to remove it by undoing the allen key bolt in the old gearbox, removing it and re-using it in the new lock.

You should also look out for 30mm gearboxes fitted to bifold doors (particularly, Smarts Aluminium doors). These gearboxes do not interchange with the standard 856 gearbox.

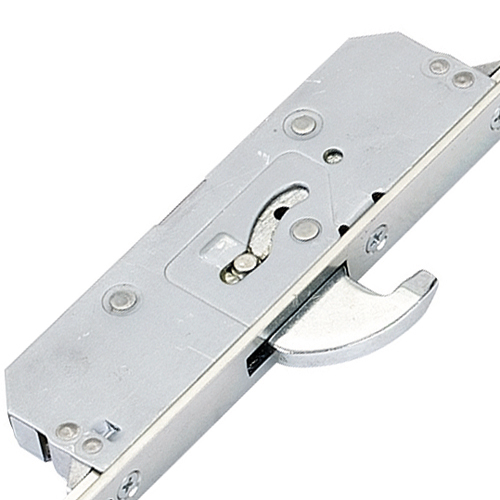

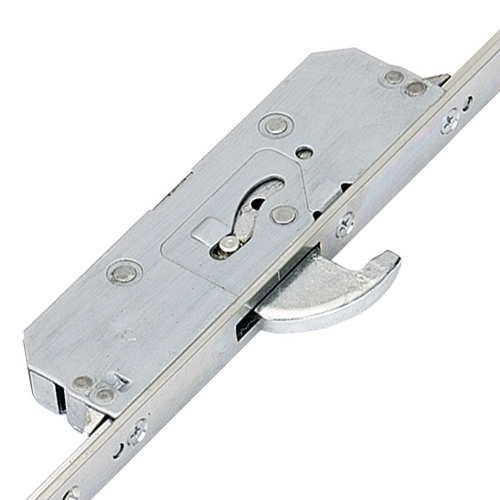

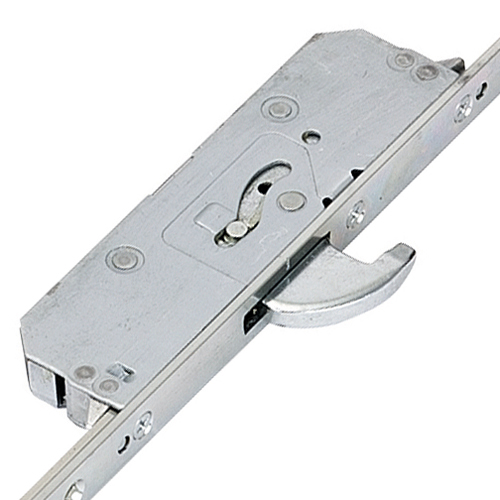

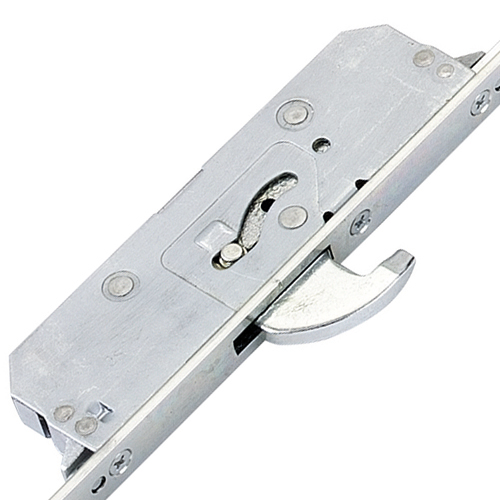

Fuhr hooks feature a 20mm throw from a hook case that measures 135.5mm high x 40mm wide x 15mm thick. Hooks on Fuhr multipoint door locks normally all throw upwards, rather than being bi directional as some other brands are.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for Fuhr 856 - Lift Lever multipoint door locks, including keeps, spindles, handles and accessories.

Latch Reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and repace the screw.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .

Sizes

  • Manufacturer: Fuhr
  • Backset: Select from drop-down - How do I measure the backset?
  • Centres PZ: 92mm - How do I measure the centres?
  • Faceplate: Select from drop-down - How do I measure the faceplate?
  • Spindle Size: 8mm
  • Hooks: 4
  • Deadbolts: 1
  • Latch: 1
  • Main Gearbox: Latch & deadbolt
  • Operation: Select from drop-down - What is the operation?
  • Spindle: Single 8mm
  • Handing: Non handed

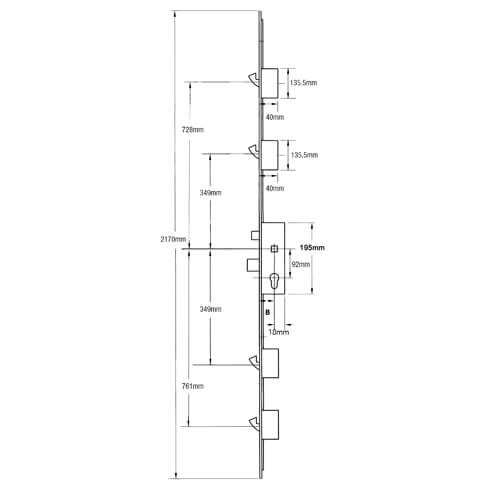

  • Distance Between Inner Locking: 699mm
  • Distance Between Outer Locking: 1489mm
  • Height: 2170mm
  • Top Hook to Spindle: 728mm
  • Bottom Hook to Spindle: 761mm
  • Door Material: UPVC, Aluminium, Timber, Composite
