£36.32 INC VAT
RRP from: £50.10 Saving 27.5%

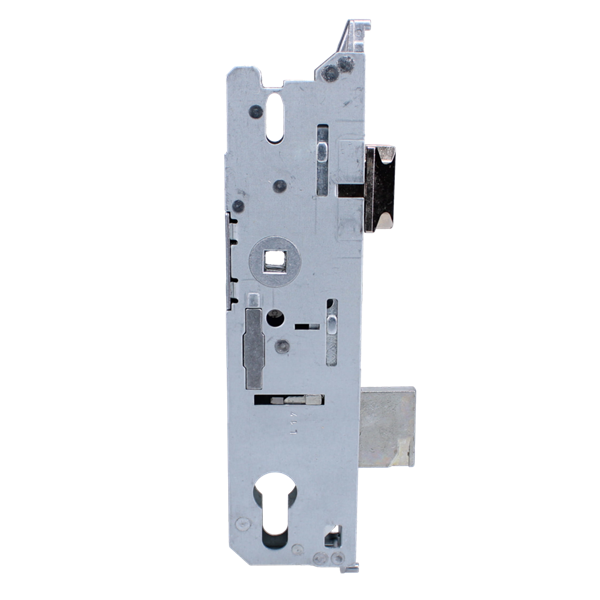

The FUHR Lever Operated Latch & Deadbolt Split Spindle Centre Case has a 35mm, 45mm or 55mm backset with 92mm centres. It is a split spindle centre case with a 200mm case height and a 50mm or 70mm case width. The FUHR Split Spindle Centre Case is a lever operated gearbox featuring a latch and deadbolt configuration with a split spindle setup. Designed for use with FUHR multipoint locks, it is ideal for lever and pad or lever and lever handle arrangements, providing a direct replacement without the need to change the full locking strip. HandingThe latch can be reversed by locating the Allen screw on the side of the lockcase in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThe ball bearing, screw, and spring required to operate this centre case must be purchased separately. The corresponding Aldridge product codes are L23669, L23670, and L23671.
