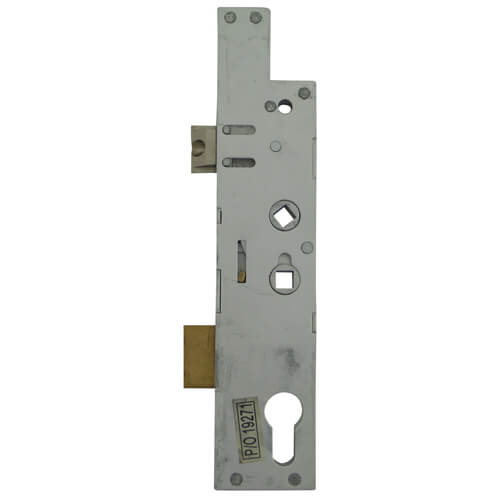

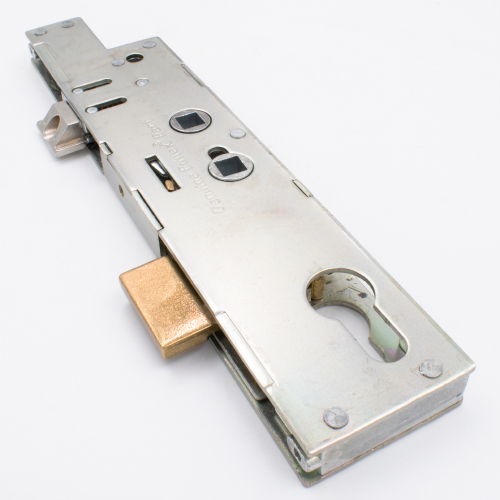

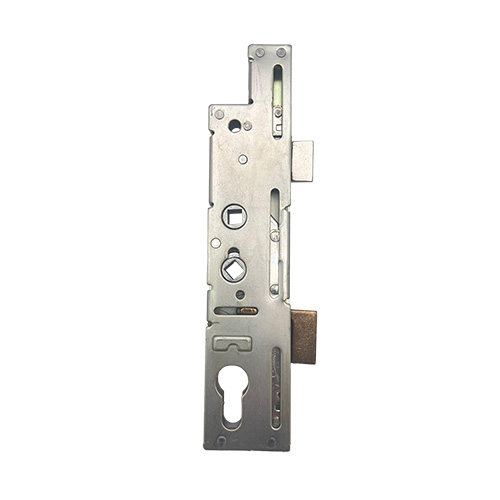

Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle

Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
Fullex
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
  • Fullex Crimebeater Genuine Multipoint Gearbox - Lift Lever or Double Spindle
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£
FROM

£53.43 INC VAT

Show price ex. VAT

RRP from: £67.61 Saving 21.0%

53
HOURS
16
MINUTES
17
SECONDS
left for delivery on Tuesday 16 April
Variations
Select Backset
select
Select Spindle
Double 8mm
Select Centres PZ
92mm/62mm
Quantity

Product Details

Product Information

Fullex Crimebeater gearboxes are available in 35mm, 45mm and 55mm backsets in double spindle configuration only, allowing them to be used as lift lever or double spindle night latch lock.

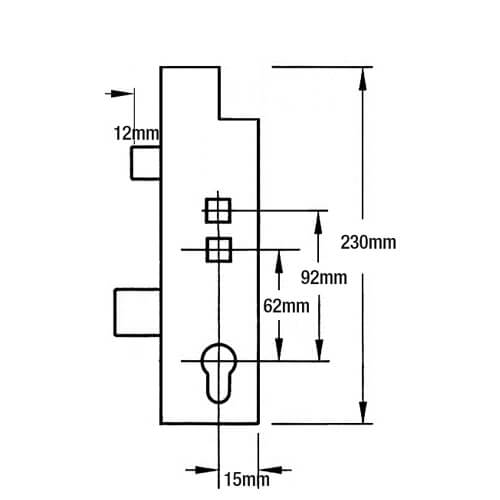

Crimebeater gearboxes measure 227mm high by the backset + 15mm. These gearboxes attach to their strips with three equidistant screws. The middle screw is 108mm from the top, which is also 108mm from the bottom screw.

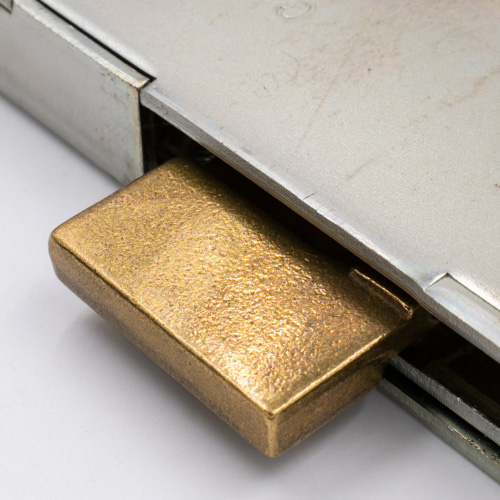

These gearboxes all feature a deadbolt and latch. The latch is 24mm high, the deadbolt is 30mm high and the distance from the bottom of the latch to the top of the deadbolt is 72mm.

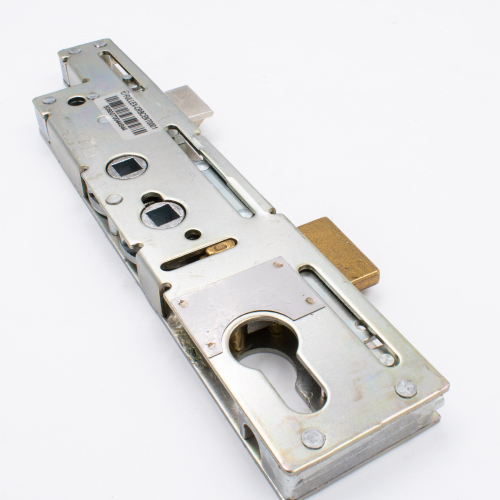

Note that the latest version has a small rectangular raised area just above the cylinder cut-out, this is to prevent manipulation of the lock gate if the handles are removed, if the new case will not go back in then enlarge the hole to allow entry.

Also suits the Automatic lock.

Operation: Lift lever or double spindle

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace the screw

Sizes

  • Manufacturer: Fullex
  • Backset: 35mm, 45mm or 55mm - How do I measure the backset?
  • Centres PZ: 92mm/62mm - How do I measure the centres?
  • Case Height: 230mm
  • Case Width: Backset + 15mm
  • Copy/Genuine: Genuine
  • Cylinder Type: Euro
  • Handing: Not Handed
  • Main Gearbox: Latch & deadbolt

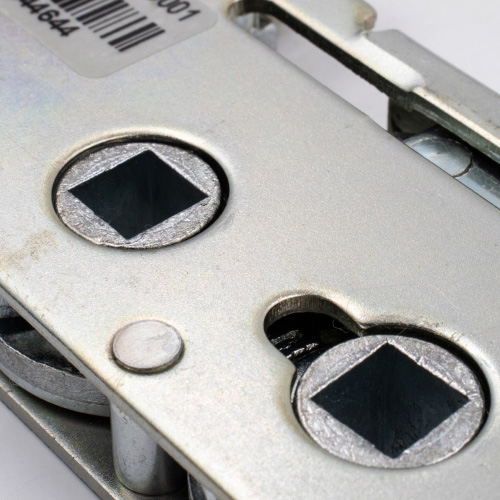

  • Spindle: Double 8mm
  • Operation: Lift Lever or Double Spindle Nightlatch - What is the operation?
  • Packaging: Supplied in singles
