Garage Defender For Up And Over

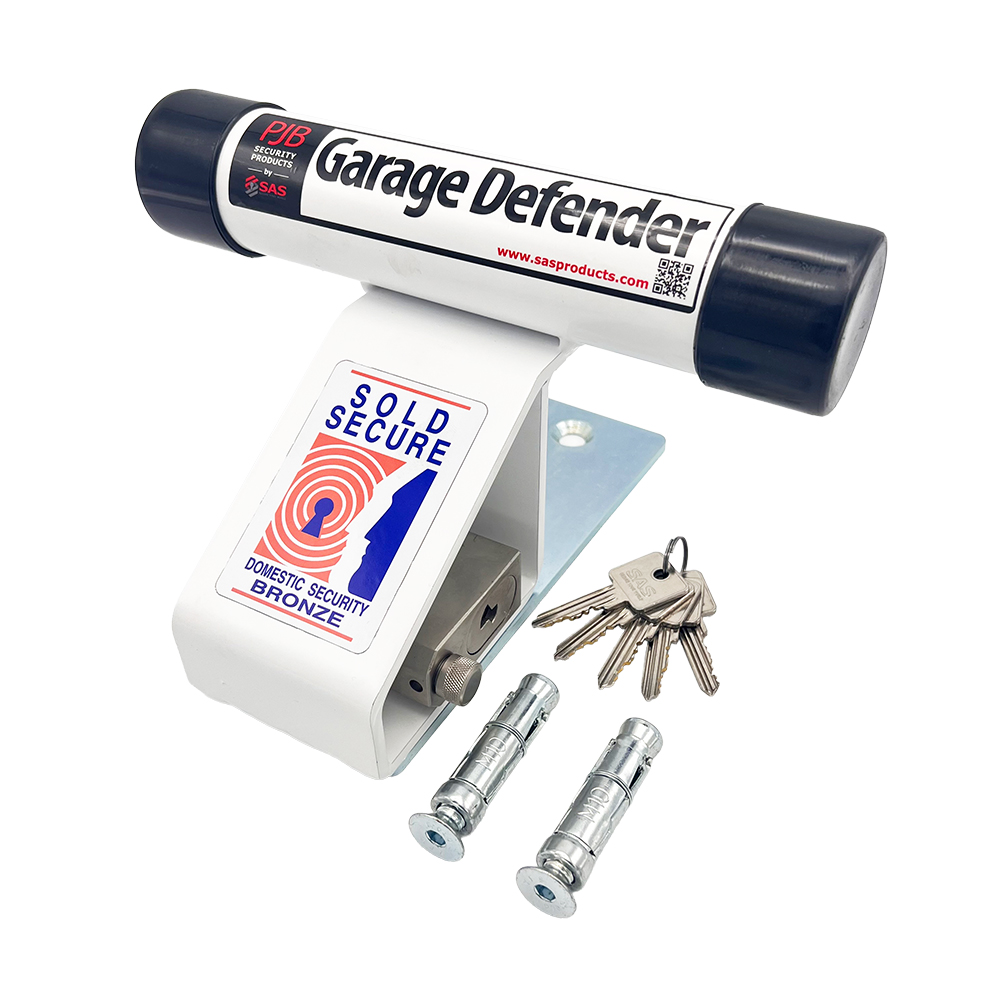

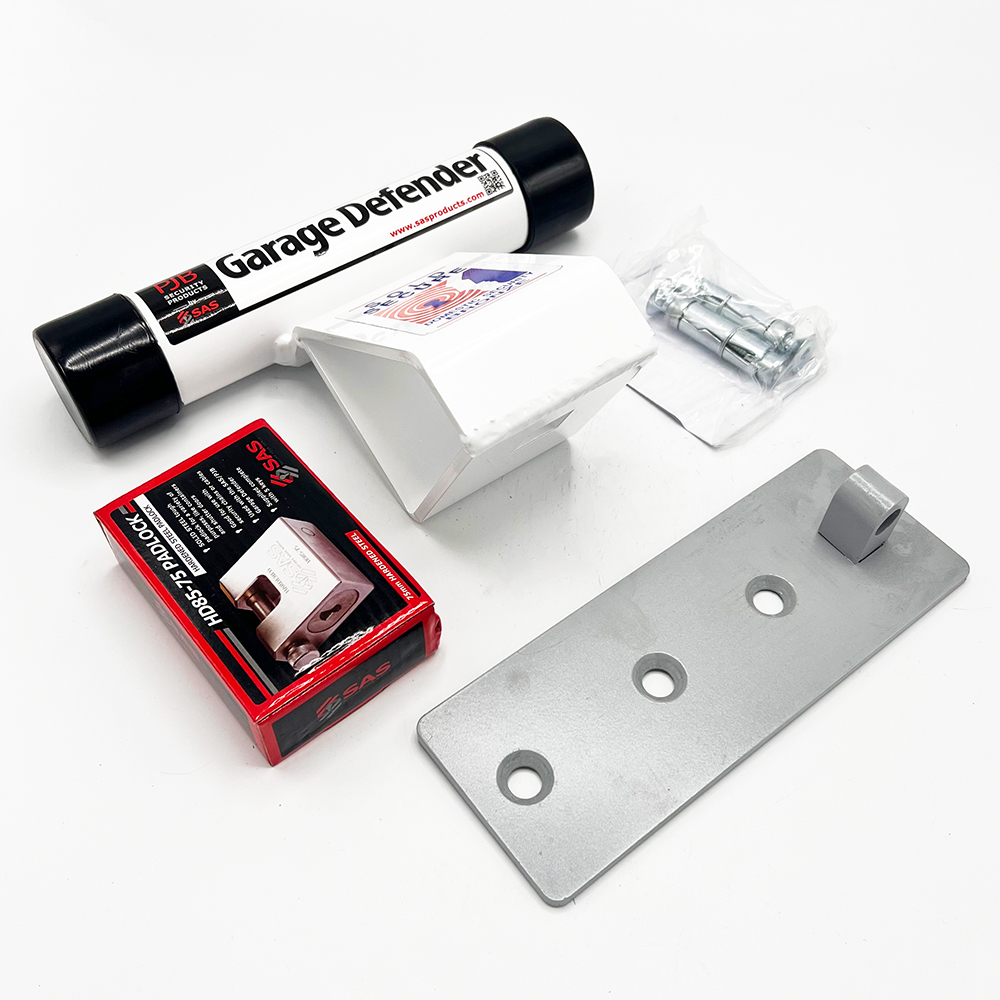

The Garage Defender For Up And Over is a garage defender that secures up and over garage doors by preventing the door from opening past a locked transverse bar. The Garage Defender For Up And Over comprises a welded base plate with a locking bar and an SAS C-Type padlock supplied in the package. The unit is for external fixing into concrete and includes two fixing bolts.

The base plate measures 78 x 205mm and is 5mm thick. Fixing is achieved by drilling an initial 10mm hole and widening to 16mm to accept the supplied bolts. An optional tarmac adaptor plate is available to be concreted into position where the fixing surface is tarmac. When the unit is locked, the fixing bolts are covered by the closed garage door and remain beneath the defender, preventing access to the bolt heads while the bar is in place.

Key Features

• Product name: Garage Defender For Up And Over
• Brand: SAS
• Type: Garage Defender
• Colour: White

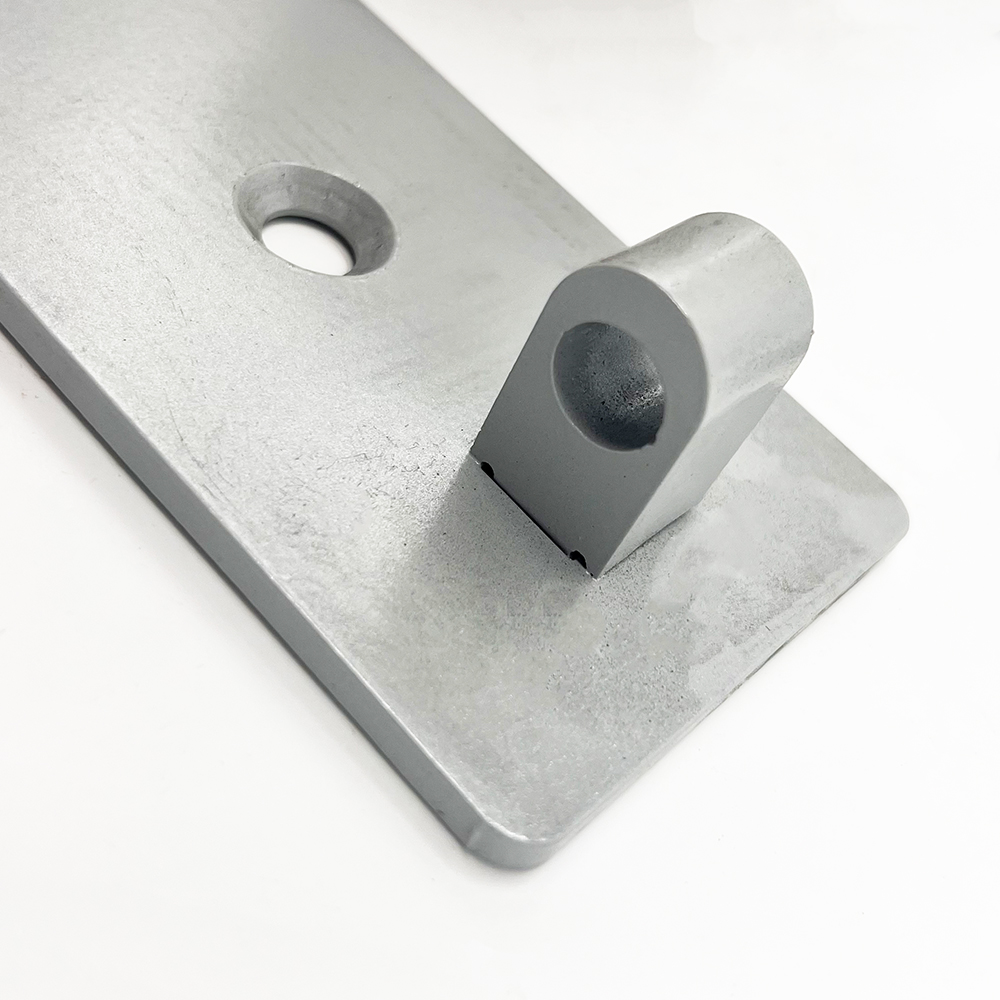

• Base plate: 78 x 205mm, 5mm thick

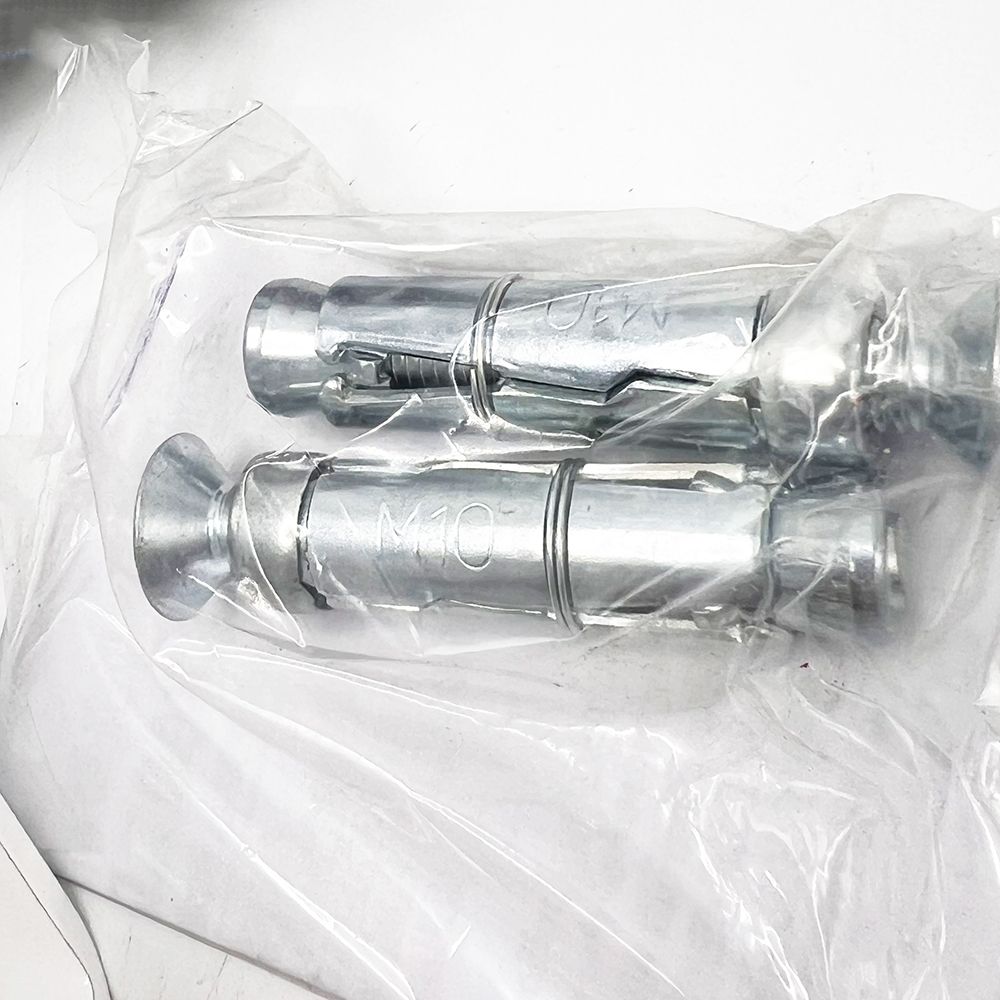

• Fixing method: external concrete fix with two supplied bolts
• Recommended drill sizes: start 10mm, widen to 16mm

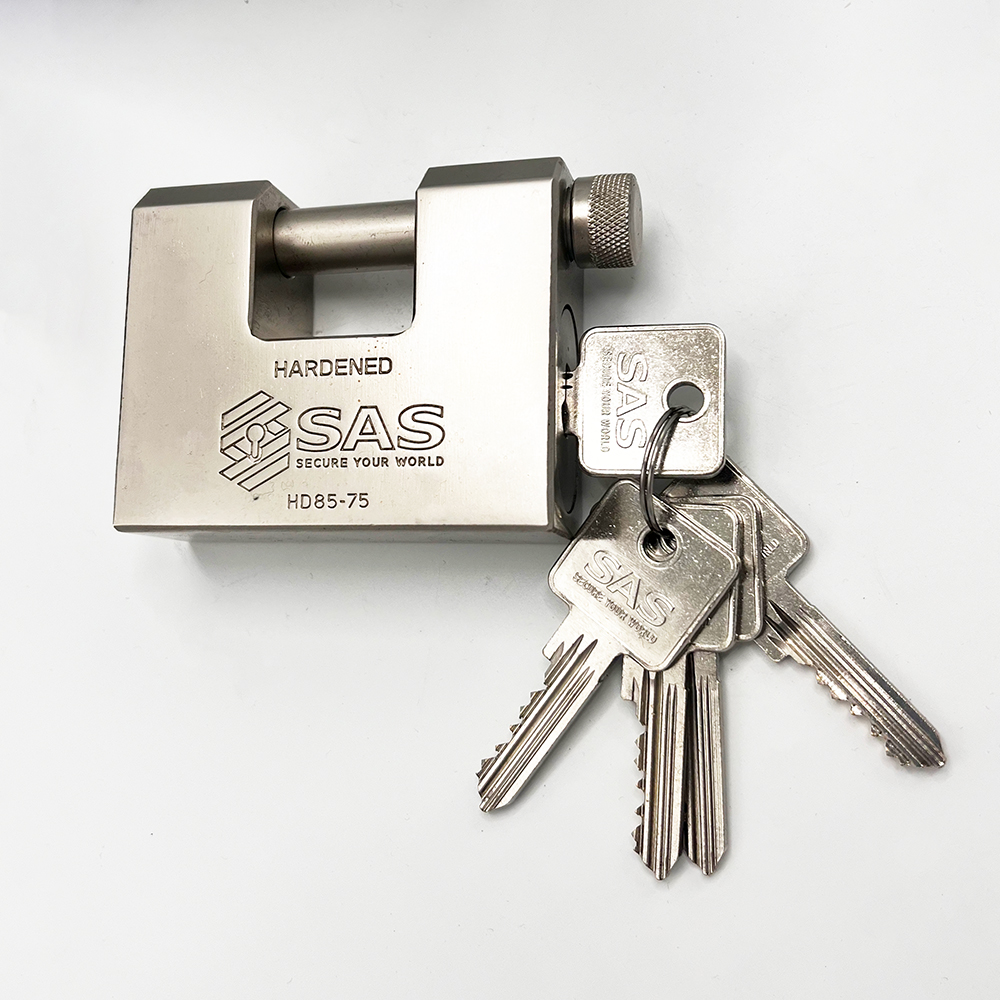

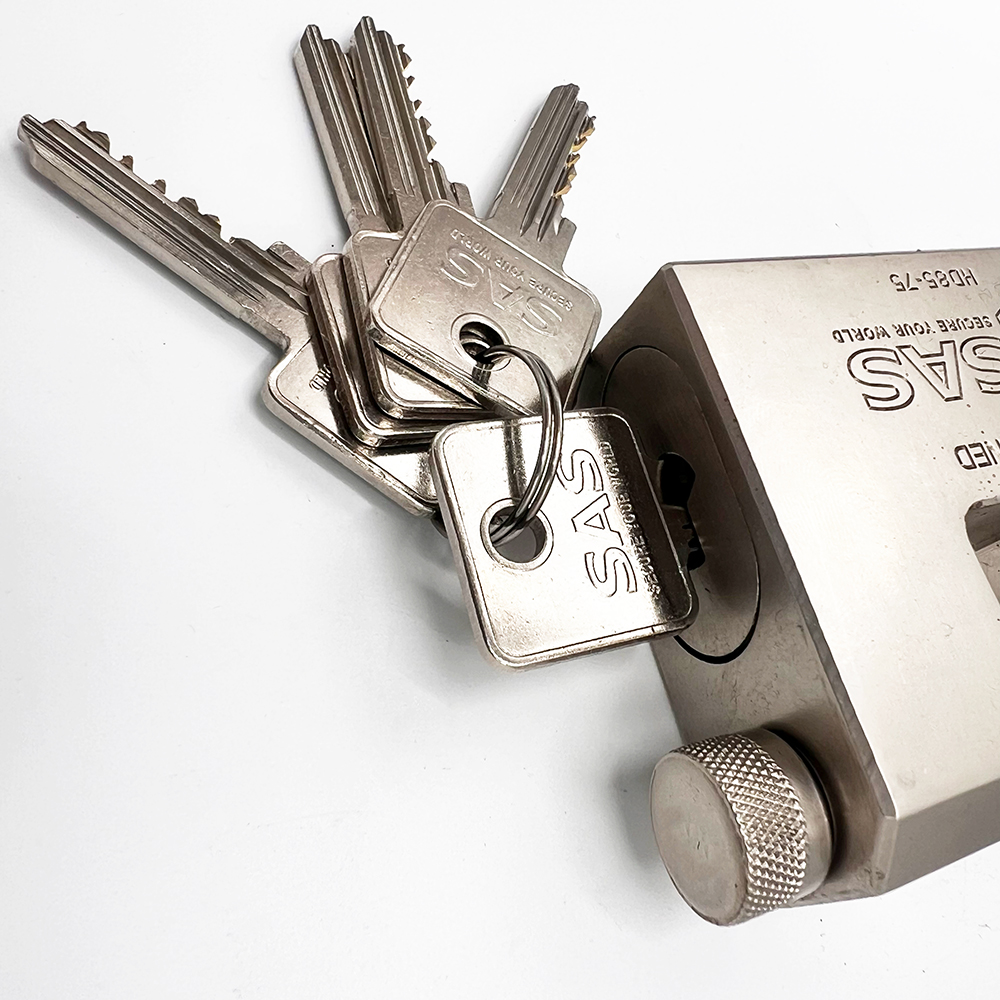

• Padlock: SAS C-Type padlock included
• Optional tarmac adaptor plate available
• Concealed fixing bolts when unit is locked
• Category: Garage Door Additional Security and Spares

Fitment & What to Check

• Confirm that the garage door closes flush over the defender base plate so the door covers the fixing bolts when locked.
• Check concrete depth and condition to accept 10mm/16mm drilled fixings and supplied bolts.
• Verify clearance behind the door for the locking bar when closed; ensure no threshold or sill obstruction.
• If installing on tarmac, confirm availability and dimensions required for the tarmac adaptor plate and concreting depth.

Common Ordering Mistakes

• Ordering without confirming concrete depth or condition for anchor bolts.
• Assuming colour other than “White” when alternate finishes may be listed.
• Omitting the tarmac adaptor plate when the surface is tarmac.
