Ifam U Series Brass Shutter Padlock

Ifam U Series Brass Shutter Padlock
Ifam
  • Ifam U Series Brass Shutter Padlock
  • Ifam U Series Brass Shutter Padlock
  • Ifam U Series Brass Shutter Padlock
  • Ifam U Series Brass Shutter Padlock
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 19.27

£19.27 INC VAT

Show price ex. VAT

RRP from: £36.26 Saving 47.0%

13
HOURS
35
MINUTES
29
SECONDS
left for delivery on Monday 17 June
Variations
Select Keyed Alike/Differ
Keyed To Differ

Product Code:
IF00770

3 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

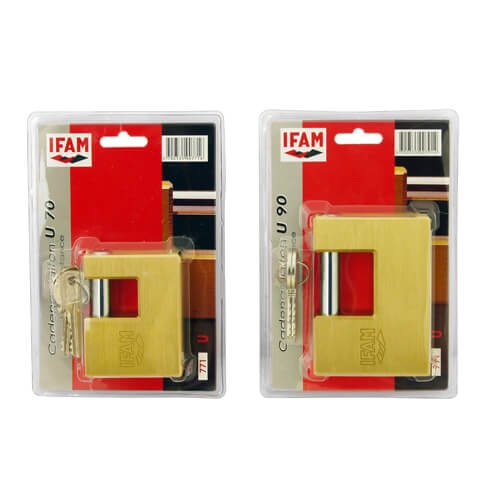

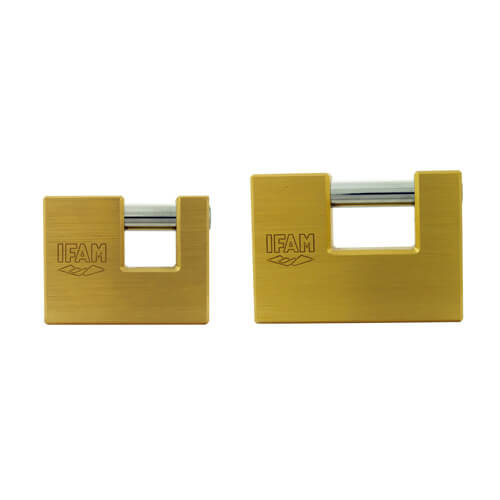

Available in two sizes (70mm and 90 mm), the U Series security padlocksfrom IFAM are especially designed for vertical grille type closures andshutters. It can also be used with H14 and M10 chains from IFAM andinclude key profiles that are compatible with the cylinders, rim locks,locks and other padlocks from the brand.

Sizes

Opening / locking: Ball bearing locking system. Key retention system when the padlock is open.

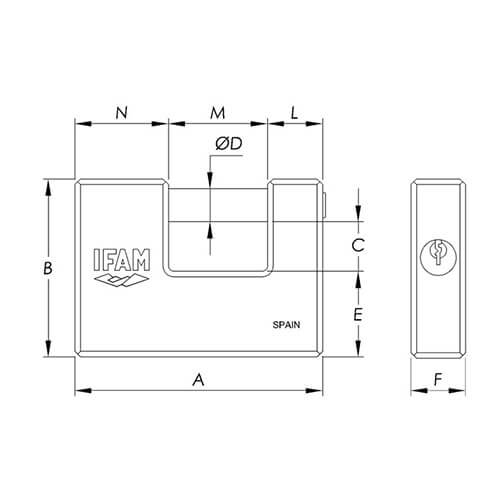

U70 padlock U90 padlock
Body base (A) 70mm 90mm
Body height (B) 55mm 64.5mm
Shackle height (C) 15.5mm 17.5mm
Shackle diameter (D) 12mm12mm
Distance from the padlock base to the shackle base (E) 24mm31.4mm
Body thickness (F) 20mm20mm
Shackle span (M) 22mm36mm
Padlock's large flap's length (N) 34mm34mm
Padlock's short flap's length (L) 14mm20mm

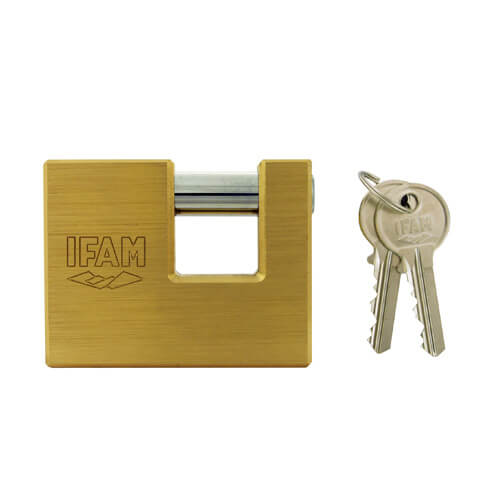

  • 2 keys
  • Key retaining
  • Automatic locking
  • Key opposite end to bolt
  • Solid extruded brass body with carbon nitride hardened shackle
  • Ball bearing locking mechanism
  • Key at the opposite end to the pin
  • Keyed alike versions on ongoing numbers
  • Visi-packed
  • Boxed for keyed aliked version
