KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)

KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
KFV
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
  • KFV Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 149.71

£149.71 INC VAT

Show price ex. VAT

RRP from: £269.44 Saving 44.5%

23
HOURS
37
MINUTES
25
SECONDS
left for delivery on Thursday 07 November
Variations
Select Backset
35mm
Select Faceplate
Flat 16mm - Square Ends
Select Operation
Lift lever

Product Code:
AS797035

3 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

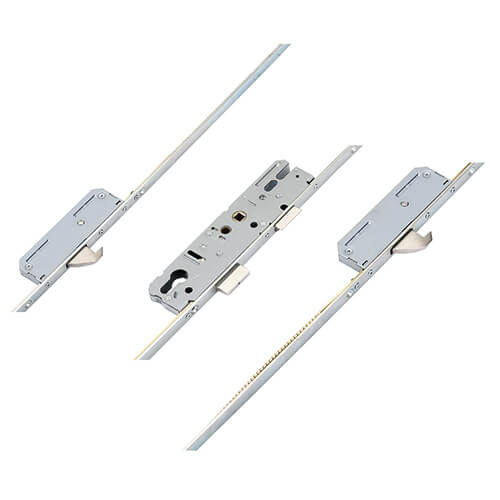

This KFV Lever multipoint door lock features 2 Hooks, 1 Deadbolt & 1 Latch.

KFV Latch Deadbolt 2 hook lock with a lift lever function and serrations for attaching shootbolts at the top and bottom of the door.

KFV are one of the few brands that use rivets to attach locking points to the strip for more security. Shootbolts sold separately.

Identifying a KFV multipoint door lock is sometimes difficult. Early models did not feature a stamp on the faceplate but, thankfully, any locks produced in the last few years do feature the KFV logo.

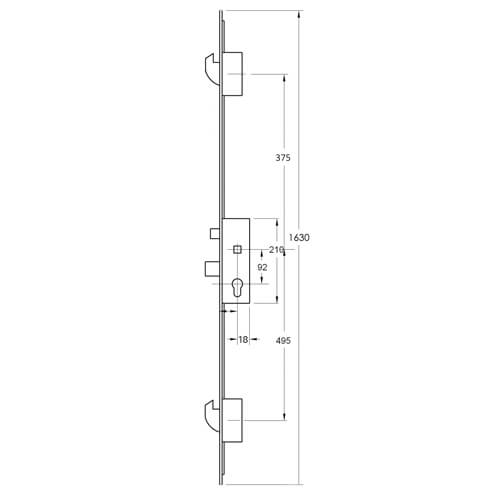

We'd always recommend removing the multipoint from the door to help identify it and that is even more important for KFV. Early models feature a yellow passivated faceplate and dark grey gearboxes, whereas new models have shiny silver faceplates and light grey gearboxes. The best way to identify them is to match the measurements up with out line drawings.

KFV locks have changed over time, with a significant number of locks now discontinued. New KFV locks have been designed to be modular, without the need to change routing positions for fabricators. That means that when replacing old locks, keeps may need to be moved, or hook boxes repositioned. If there is limited clearance on the original routing, this may require a small amount of work to the door to enable the locks to fit.

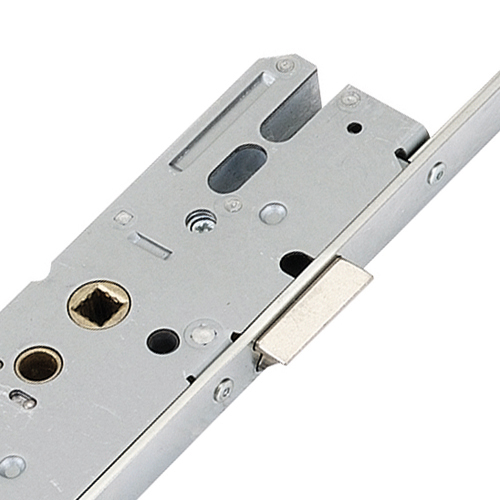

KFV multipoint door lock gearboxes are single spindle and 92mm centres.

The overall height of the gearbox is 210mm, the bolt throws 21mm and the distance from the bottom of the latch to the top of the deadbolt is 56mm. The distance from the spindle to the top of the case is 85mm but the gearbox has both a hole and a groove to accept bolt through handle fixings.

Older KFV gearboxes are connected to the faceplate strip with 1/8" rivets. There are very few other gearboxes which are fitted in this way (Winkhaus being another example) which can help with identification. However, new KFV locks have gearboxes screwed to the faceplate.

KFV locks are available as either a lift lever or key wind variants. It's worth noting that it is not possible to swap a lift lever lock to a key wind gearbox or visa versa.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

Early KFV models had different rivet spacing and used different connectors when attaching the gearbox to the strip. This is not a problem when replacing the whole lock, but worth considering if only the gearbox needs replacing as the new gearbox will not replace very early models. Brand new locks have a gearbox that is attached to the faceplate with screws.

KFV Multipoint locks feature a couple of different hook locking arrangements.

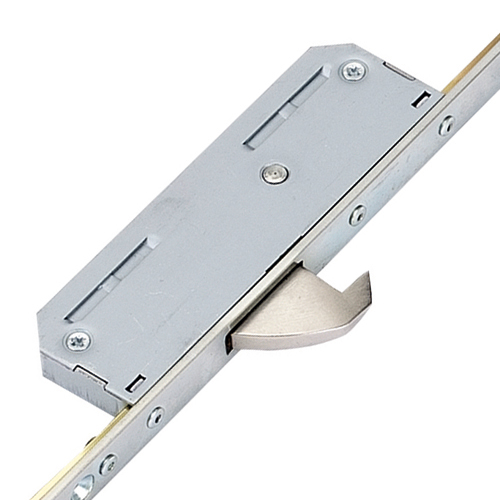

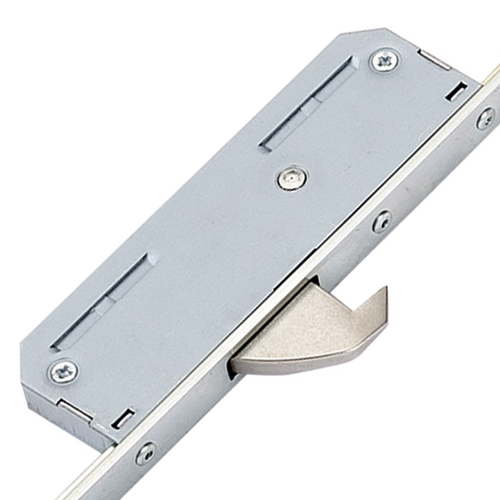

The first is a standard hook which normally throw upwards, regardless of whether the hook is at the top or the bottom of the door.

The second type of hook is a hook and anti lift pin, which is higher security. Anti lift pins provide additional protection against attack and also require special keeps because of the proximity of the pin and the hook bolt.

The case on a KFV hook is normally 130mm high and the cases are the same size regardless of whether there is a hook, deadbolt or pin.

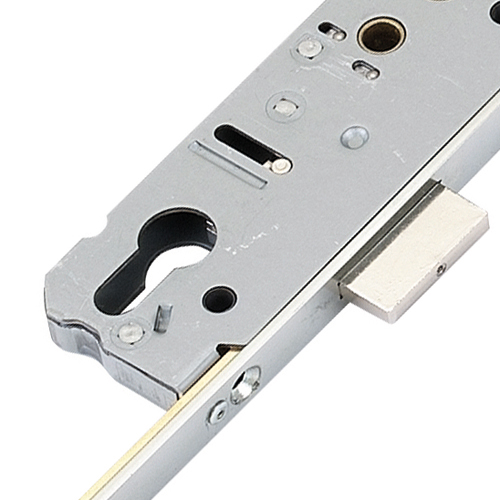

KFV deadbolts feature a distinctive chamfered centre which help the lock connect into the keep. The shape is distinctive, with raised parts at the top and bottom of the deadbolt which can help with identification of the lock.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for KFV Lever multipoint door locks, including keeps, spindles, handles and accessories.

Latch Reversal: Depending on the date of manufacture either- Push in the latch and undo the screw in the back of the lock case, remove the latch, reverse and reinsert. Push in the latch and undo the screw in the side of the lock case to remove the latch, reverse and reinsert.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
