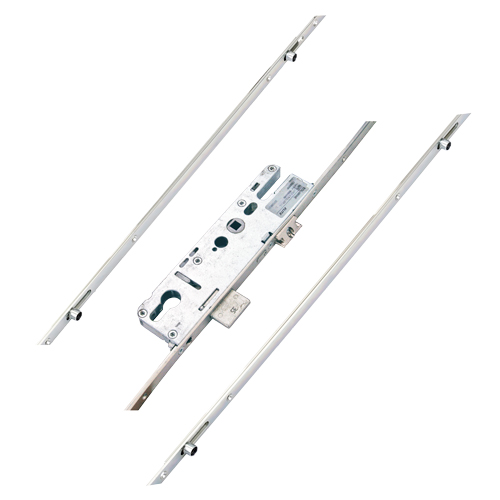

Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock

Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
  • Roto Elite Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 34.97
FROM

£34.97 INC VAT

Show price ex. VAT

RRP from: £57.86 Saving 63.0%

52
HOURS
48
MINUTES
05
SECONDS
left for delivery on Tuesday 16 April
Variations
Select Backset
35mm
Select Faceplate
Flat 16mm - Square Ends
Select Operation
Lift lever

Product Code:
FU856C135

74 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

This Elite multipoint lock features a single spindle Roto gearbox.

Elite multipoint door locks cover a wide range of different applications. They are made in Europe and feature a "Silbear" coating which offers 480 hours salt spray protection.

Identifying an Elite lock starts with the faceplate, which should be stamped with an Elite logo. This gearbox features a slot and a small hole below the slot appearing above the top spindle which is a piercing for bolt through handles.

If these locks look familiar, that’s because they are. Elite took over the manufacturing of these locks from Roto-Frank when they discontinued the range. They use the same tooling, with the exception of the new Silbear coating, they are made to the same specification as the original locks. You may recognise them from our catalogues as the MVD range or "Roto mark 2" locks. Gearboxes cannot be changed with the original locks but they do offer a relatively simple complete lock swap.

Many Elite locks are available in standard and compact versions designed for shorter doors. They feature the same 950mm handle height but a shorter overall length of 1810mm.

Elite gearboxes are available as a 35mm single spindle lock or with a 35mm or 45mm double spindle. Gearboxes measure 200mm high x backset + 19mm. Be sure to account for 2mm for the faceplate when measuring the backset.

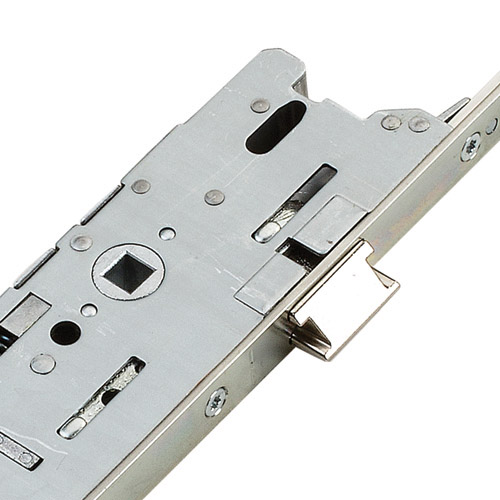

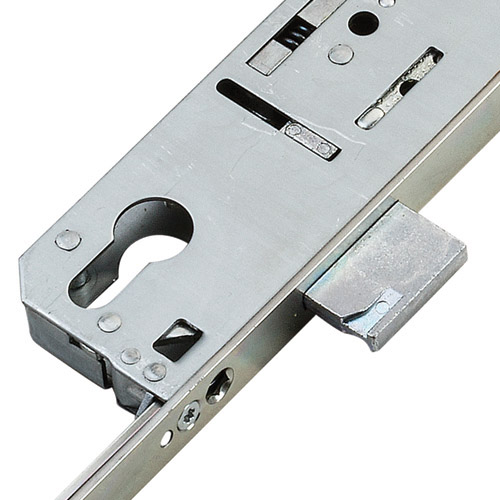

Gearbox deadbolts project 20mm and are 32mm high. The latch is 30mm high and projects 10mm. The distance between the bottom of the latch and the top of the deadbolt is 63mm.

Centres are positioned at 62mm and 92mm with the top spindle being 122mm from the bottom of the case. Single spindle locks have a round hole where the second spindle would usually be located. The gearbox is pierced to accept a bolt through fixing 19mm from the top spindle, and the slot above for fixings is 42mm above the spindle.

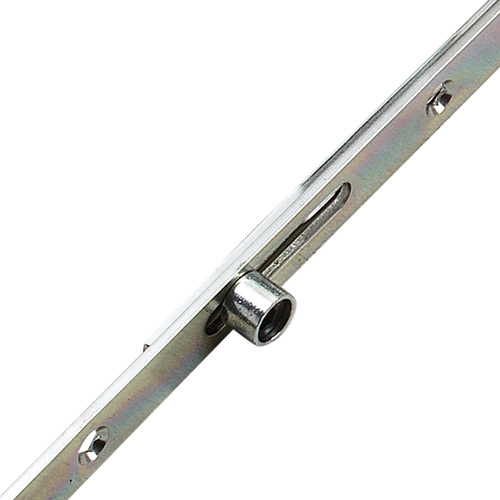

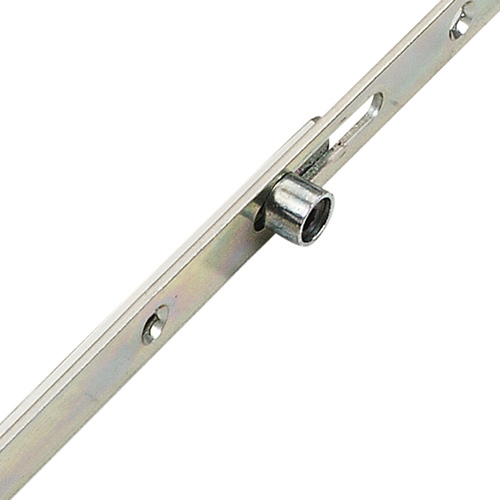

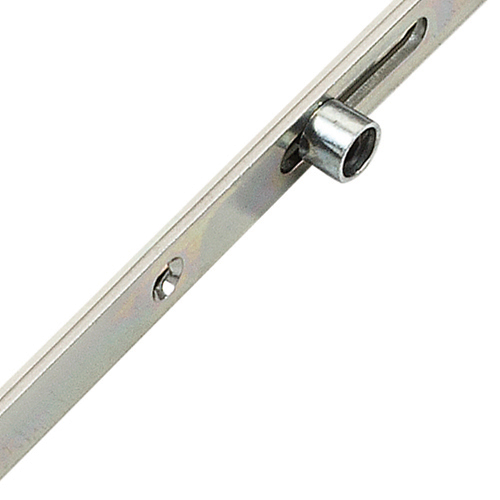

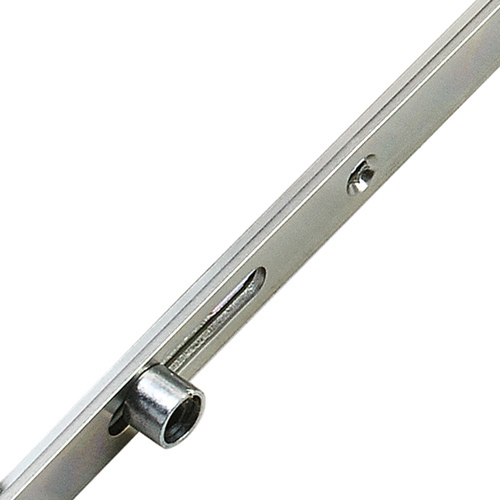

Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.

Elite rollers are normally adjustable by +/- 1.2mm to help achieve optimum weather sealing.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

  • 480 hours salt spray tested to EN1675 Grade 5

We stock a range of associated products for Elite Standard multipoint door locks, including keeps, spindles, handles and accessories.

Latch Reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and repace the screw.

You may find this lock used as an UPVC door lock or an aluminium door lock.

Sizes

  • Manufacturer: Elite
  • Backset: Select from drop-down - How do I measure the backset?
  • Centres PZ: 92mm - How do I measure the centres?
  • Faceplate: Select from drop-down - How do I measure the faceplate?
  • Spindle Size: 8mm
  • Rollers: 4
  • Deadbolts: 1
  • Latch: 1
  • Main Gearbox: Latch & deadbolt
  • Operation: Select from drop-down - What is the operation?
  • Spindle: Single 8mm
  • Handing: Non handed
  • Distance Between Inner Locking: 750mm
  • Distance Between Outer Locking: 1730mm
  • Height: 1775mm
  • Top Roller to Spindle: 810mm
  • Bottom Roller to Spindle: 920mm
  • Door Material: UPVC, Aluminium
