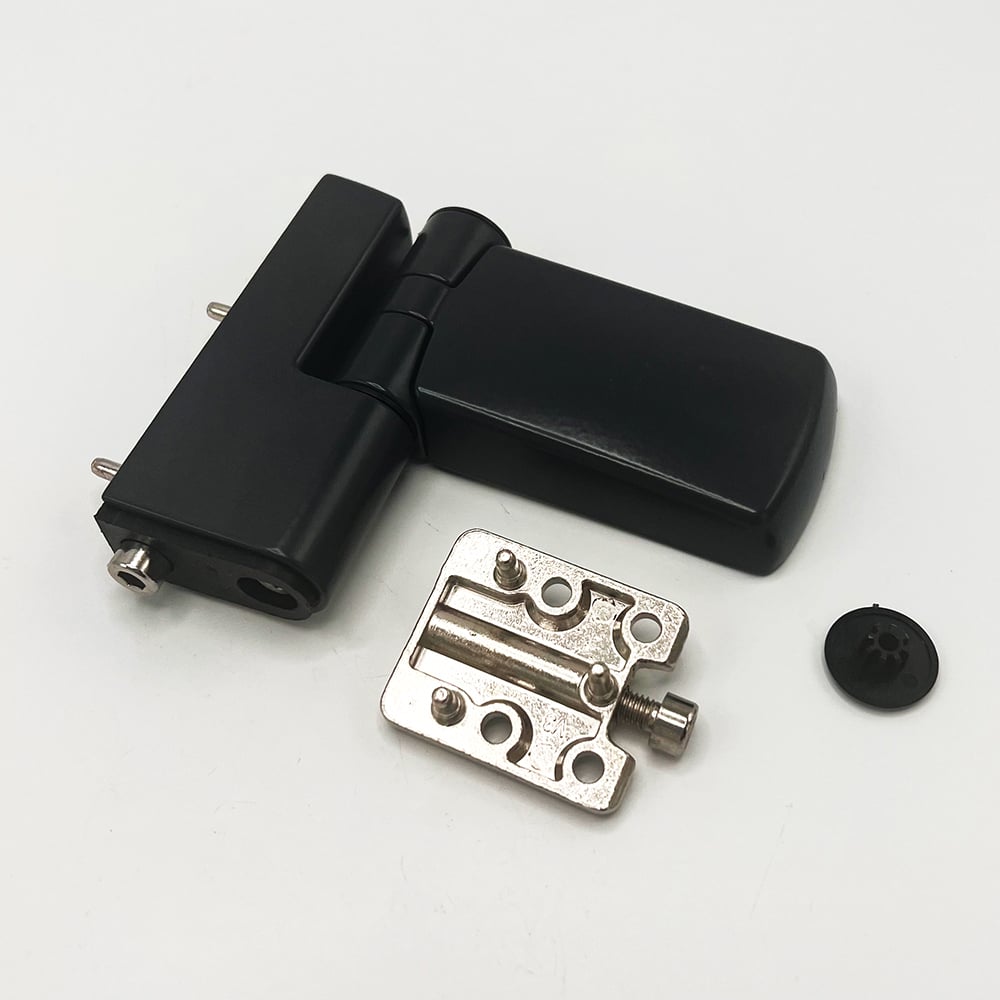

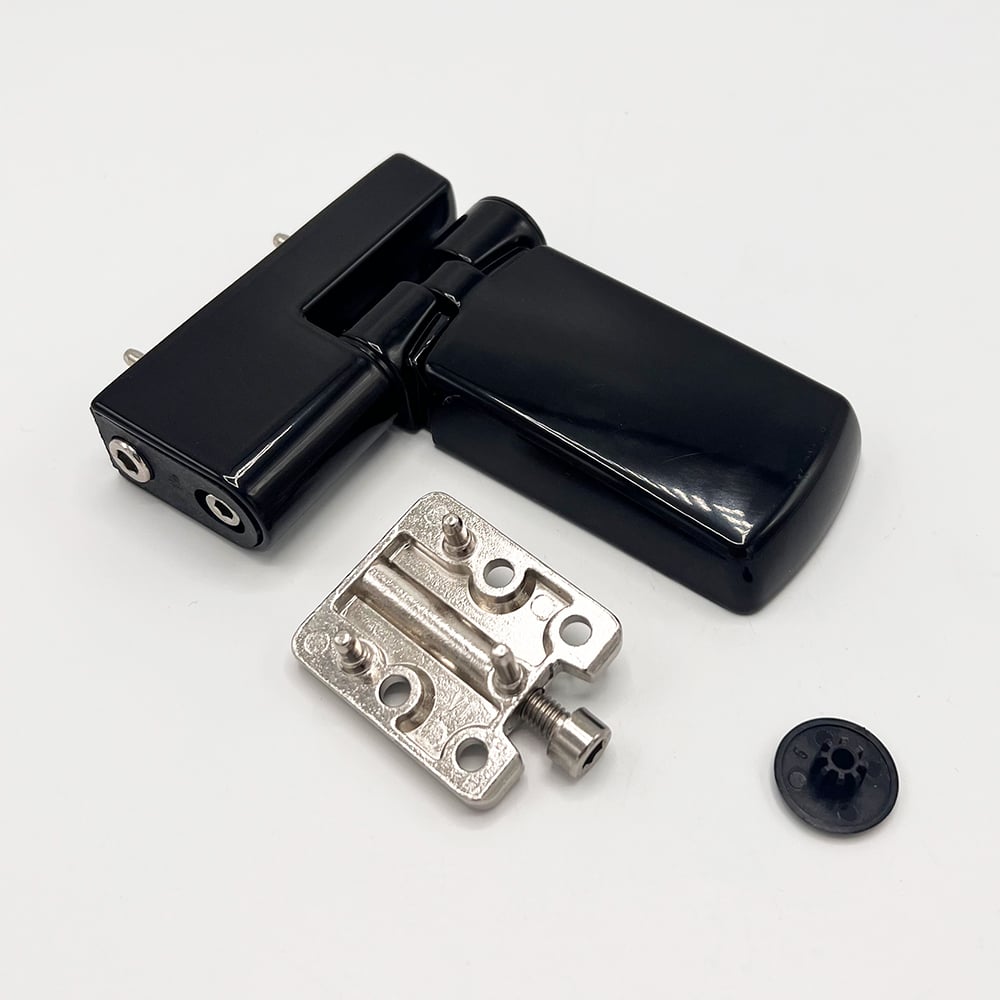

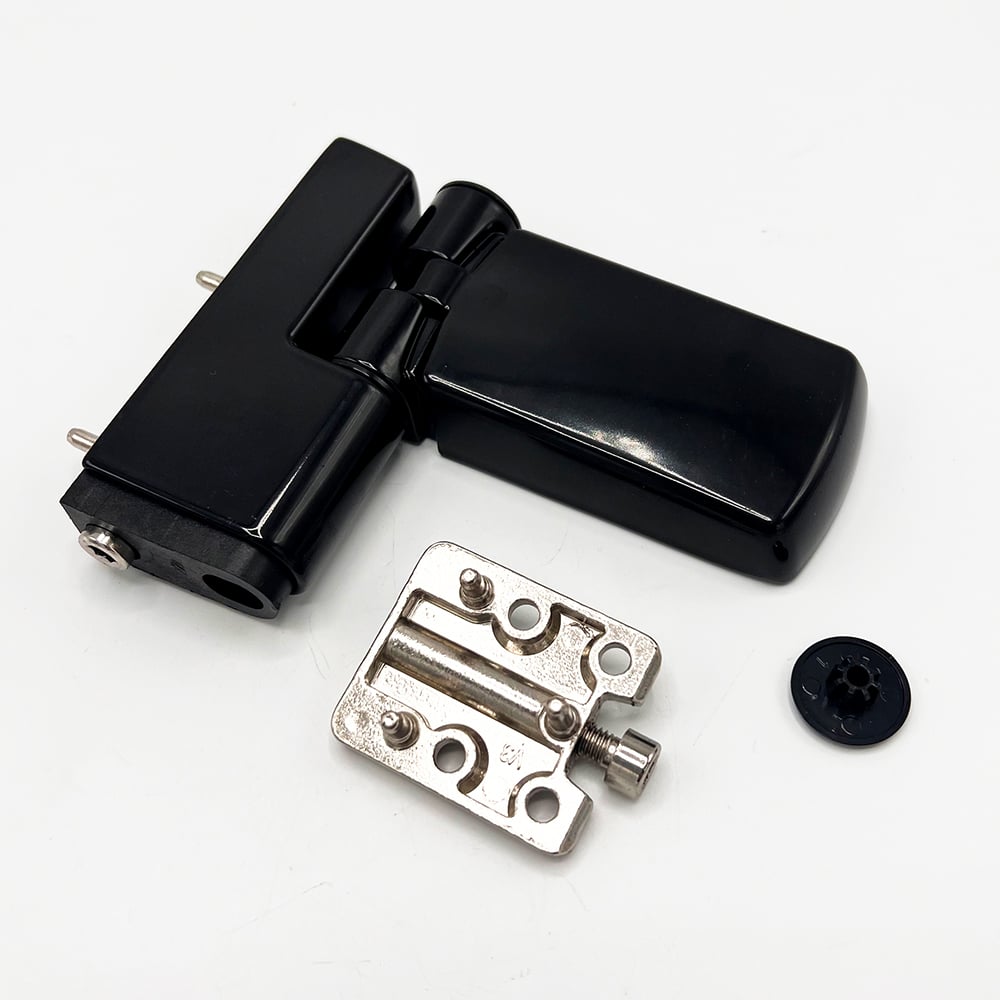

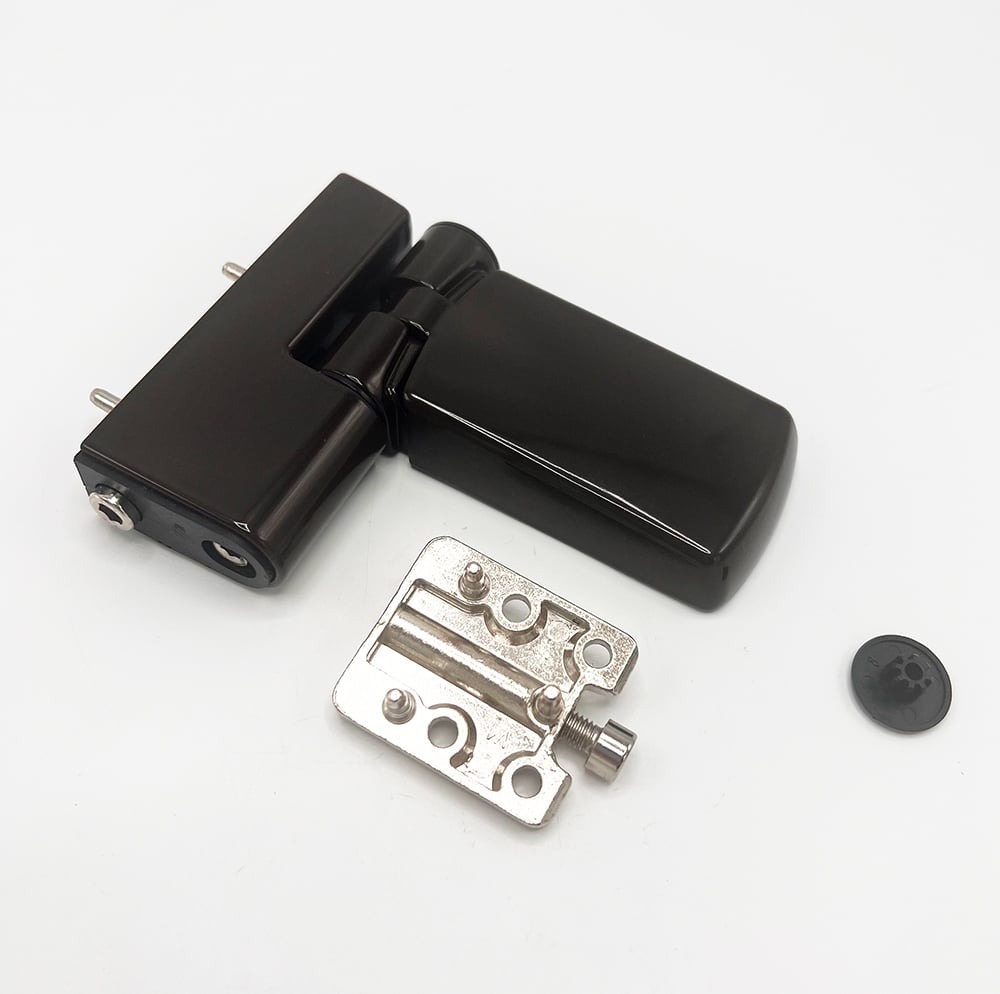

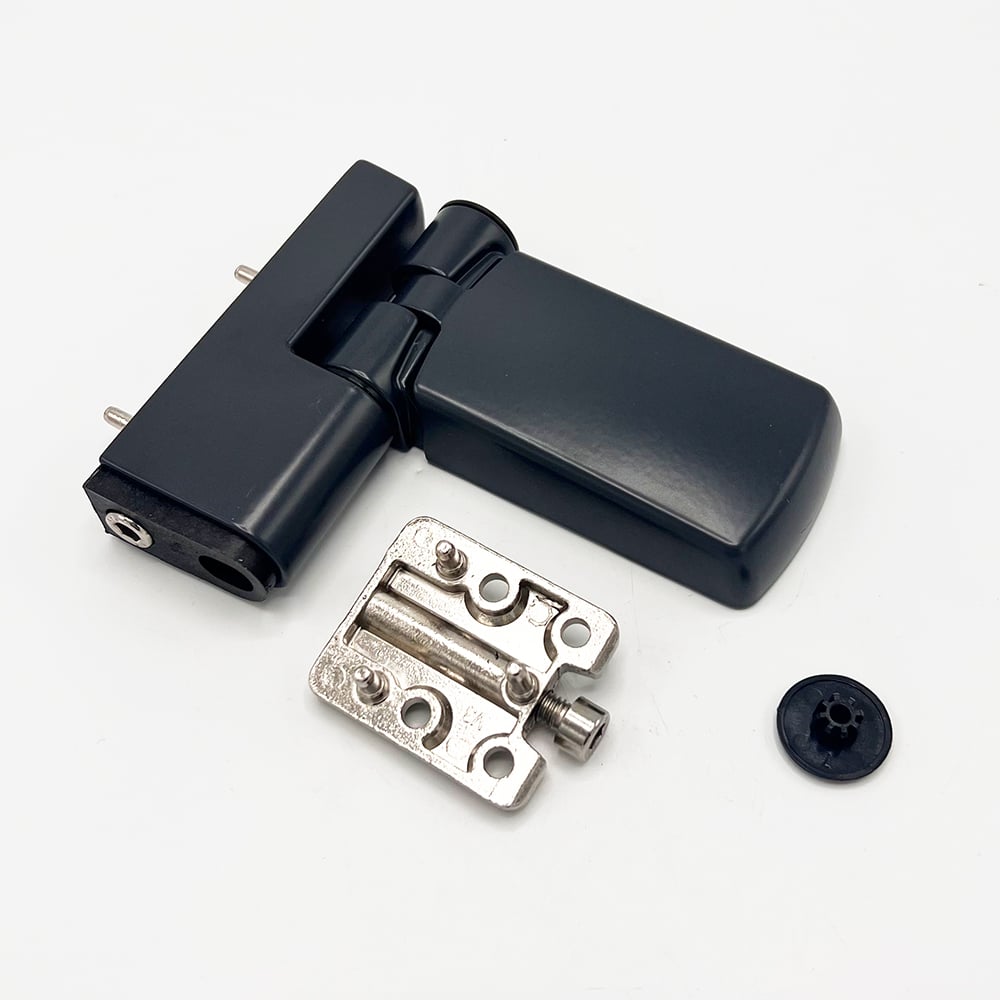

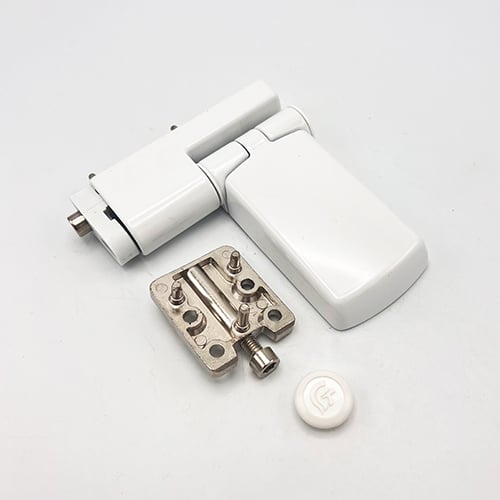

Trojan Patriot Plus 3D Flag Hinge

The Trojan Patriot Plus 3D Flag Hinge is a three-dimensional adjustable flag hinge suitable for door applications requiring precise alignment. It is available with profile step heights of 16mm, 19mm, or 22mm and can accommodate a maximum door weight of 80kg when fitted with three hinges. The hinge comes in a range of colours including white, black, brown, and anthracite grey.

Key Features

• 3D adjustability for vertical, horizontal, and compression alignment
• Available profile step heights: 16mm, 19mm, 22mm
• Maximum door weight for three hinges: 80kg
• Colour options: white, black, brown, anthracite grey
• Flag hinge design suitable for doors requiring step-in profiles

Fitment & What to Check

Ensure the selected profile step height corresponds to the door and frame configuration to maintain correct door alignment. Confirm door weight does not exceed 80kg when using three hinges. Verify that hinge dimensions and colour match the door and frame requirements. Installation requires fixing to the door and frame with appropriate screws and consideration of hinge orientation based on door handing.

Common Ordering Mistakes

• Selecting an incorrect profile step height for the door profile
• Exceeding the maximum door weight capacity for the number of hinges used
• Choosing a colour that does not match the door or frame finish
• Neglecting to confirm door handing and hinge orientation before ordering
