TSS Easy Access Control Set Up Single Door Controller and PSU

TSS Easy Access Control Set Up Single Door Controller and PSU
TSS
  • TSS Easy Access Control Set Up Single Door Controller and PSU
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 118.78

£118.78 INC VAT

Show price ex. VAT

RRP from: £226.25 Saving 47.5%

42
HOURS
25
MINUTES
31
SECONDS
left for delivery on Tuesday 27 February
Variations

Product Code:
TSSEASYAC

1 item in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

An ideal product for an easy to install, and simple to use proximity access control solution for single doors. Just add your choice of locking device, and exit button! The TSSEASYAC includes:

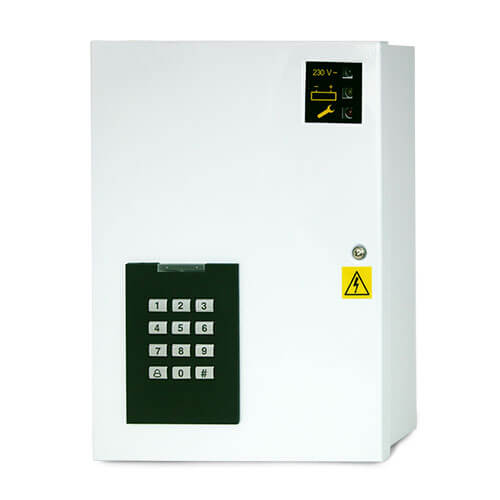

  • A 2 Amp power supply enclosure, with integrated programming interface for enrolling users and programming the system
  • A dedicated external proximity reader with simple 4 wire connection back to the power supply enclosure.
  • Easy to use terminals to add in your choice of Locking Device, and Exit button

This product lends itself perfectly to any scenario where a customer wants a simple, cost-effective way of controlling access across a single door without the use of keys. The large white enclosure is fitted to the inside of the secure area, and the small anti-vandal reader is fitted to the outside.

The installer is then free to select any electronic locking device (such as an electronic release, or mag lock) to work in conjunction with the system. This connects to the lock relay inside the enclosure.

There is also a dedicated relay available for an exit switch if required.

The only part of the system visible externallyis the IP65 rated sealed proximity reader, which uses a wiegand 4 wire connection, meaning even if attacked it can not manipulated to open the door. This system is therefore secure and suitable for use on both internal and external doors and gates.

If you have any questions regarding this system, please contact our Access Control team to discuss the product further.

TSS - Stock More For Less

TSS believes that quality doesn't have to come with a high price tag. TSS to provide high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.

Sizes

Enclosure dimensions:
  • Width:197mm
  • Height: 265mm
  • Depth: 72mm

Technical specification:

  • Power supply with integrated keypad
  • Input for external Wiegand reader
  • Allows up to 500 users
  • 13.8VDC regulated output (1amp)
  • Additional battery charging
  • Compliant to EMC EN61000-6-1 and 3
  • Can house a battery up to 12V 9Ah

Included External Reader:

  • High impact plastic reader for external use
  • Fully encapsulated to IP65
  • 9-12VDC at max 50Ma
  • 26 bit EM formatted reader Wiegand 4 wire connection
  • Card read time of 120mS
  • Operating frequency 125kHz
  • Maximum transfer distance of 100m (screened cable)
  • Operating temperature -20c to 60c
