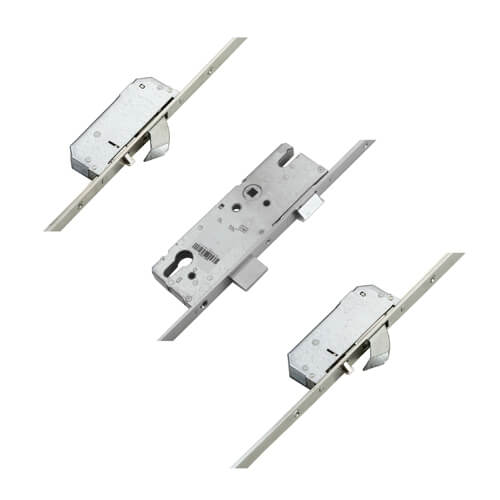

Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock

Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock
Winkhaus
  • Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock
  • Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock
  • Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock
Free Delivery on Orders Over £60 Plus VAT*
£
FROM

£186.85 INC VAT

Show price ex. VAT

RRP from: £353.17 Saving 47.0%

06
HOURS
23
MINUTES
11
SECONDS
left for delivery on Monday 09 December
Variations
Select Backset
select
Select Handing
select
Select Spindle
Single 8mm
Select Faceplate
Flat 20mm
Quantity

Product Details

Product Information

Hooks on this lock are automatically engaged as the door is closed without needing to lift the handle. The handle will retract the hooks from the inside and a further turn of the key deadlocks the door.

To transform this multipoint lock into an electronic locking solution, simply attach the 12V DC Winkhaus AV2 motor (available separately) and connect using the Winkhaus AV2 cable to the wide range of Winkhaus access control products available.

Backset: 45mm or 55mm.

Centres: 92mm.

Operation: Automatic Locking.

Latch Reversal: Handed - Non Reversible See Attached Handing Chart.

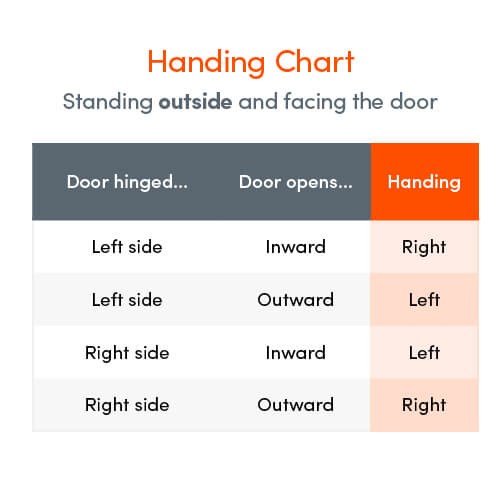

Handing Charts

Standing outside looking at the door

Standing Outside, Door HingedDoor OpensHanding
LeftInwardRight
LeftOutwardLeft
RightInwardLeft
RightOutwardRight



Standing inside looking at the door

Standing Inside, Door HingedDoor OpensHanding
RightInwardRight
RightOutwardLeft
LeftInwardLeft
LeftOutwardRight

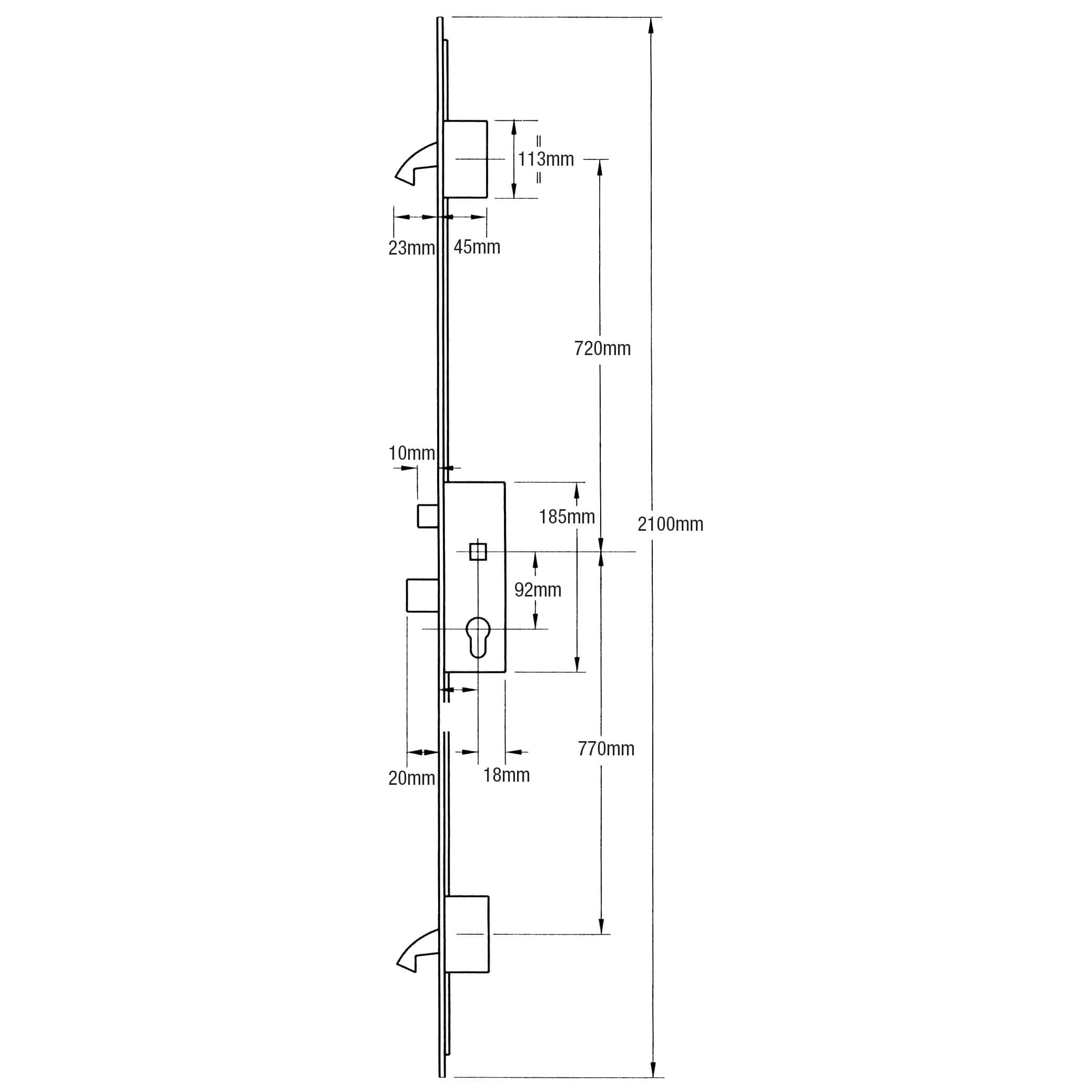

Sizes

  • Operation: Automatic
  • Latch Reversal: Yes
  • Centres: 92mm
  • Case Height: 185mm
  • Case Depth: Backset + 18mm
  • Overall Length: 2100mm
  • Motor Power: 12V DC
  • Distance between hooks: 1490mm



Operation

Extra Information

Documentation







Servicing
