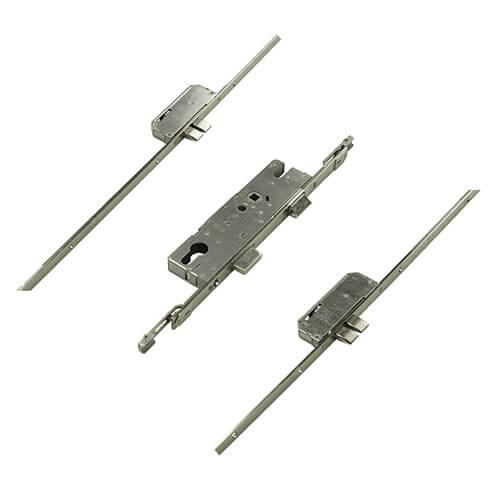

Winkhaus Thunderbolt Latch 5 Deadbolts Split Spindle Universal UPVC Repair Multipoint Lock

Winkhaus Thunderbolt Latch 5 Deadbolts Split Spindle Universal UPVC Repair Multipoint Lock
Winkhaus
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£ 193.51

£193.51 INC VAT

Show price ex. VAT

RRP from: £358.36 Saving 46.0%

01
HOURS
12
MINUTES
50
SECONDS
left for delivery on Tuesday 16 July
Variations
Select Backset
45mm
Select Faceplate
Flat 20mm
Select Operation
Lift lever or split spindle nightlatch

Product Code:
4981962

8 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

The Thunderbolt is unique in that it offers compression by using the angled deadbolts and often does not require a replacement keep when replacing an existing Winkhaus lock. Available with 16mm wide faceplate and 35mm backset for UPVC and Aluminium doors generally. Capable of replacing locks from 1300mm to 2240mm satisfying a huge range of door heights. Suits UPVC, Aluminium, Timber and Composite Doors. Operation: Split spindle. Latch reversal: Push in latch and a screw will appear in back of lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw. Nightlatch reversal: The small rectangular slot adjacent to side of the spindle hole contains a black roll pin. Insert a flat bladed screwdriver and roll the pin to opposite side to reverse function.

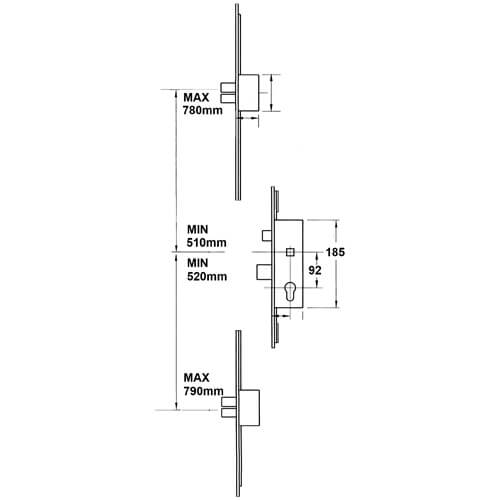

Sizes

  • Centres: 92mm
  • Case Height: 185mm
  • Case Depth: Backset+17mm
  • Minimum: 1680mm
  • Overall Length: 2260mm
  • Max top thunderbolt to spindle: 775mm
  • Min top thunderbolt to spindle: 485mm
  • Max bottom thunderbolt spindle: 795mm
  • Min bottom thunderbolt spindle: 515mm

Operation

Extra Information

Documentation







Servicing
