Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle

Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
Lock Shop Direct
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
  • Yale Asgard Copy Multipoint Gearbox - Lift Lever or Double Spindle
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£
FROM

£33.43 INC VAT

Show price ex. VAT

RRP from: £55.69 Saving 40.0%

52
HOURS
56
MINUTES
53
SECONDS
left for delivery on Tuesday 16 April
Variations
Select Backset
select
Quantity

Product Details

Product Information

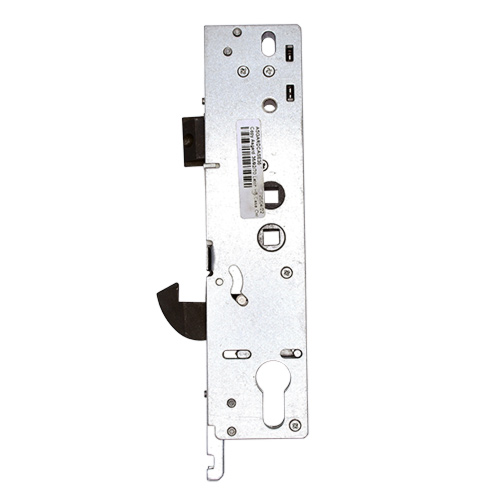

This Asgard replacement gearbox is sometimes branded Yale and is available in 35mm and 45mm backsets. They are a direct fit for the old Yale Asgard 7025, 7026, and 7035 multipoint door locks.

Original versions of this gearbox may feature a white plastic insert which was used to hold the latch in place. These gearboxes are not supplied with the insert, which is not required for the proper function of the lock. Yale stopped using this facility on their locks.

Accado Style gearboxes measure 212mm high by the backset + 15mm wide. The hookbolt is 27mm high, the latch is 27mm high and there is 60mm between the bottom of the latch and the top of the hook.

These gearboxes attach to the faceplate with 3 screws. The top screw measures 90mm to the middle, which measures 60mm to the bottom screw.

Operation: Lift lever or double spindle

Latch reversal: Undo the screw in the latch to remove it. Reverse and reinsert then replace the screw.

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.
