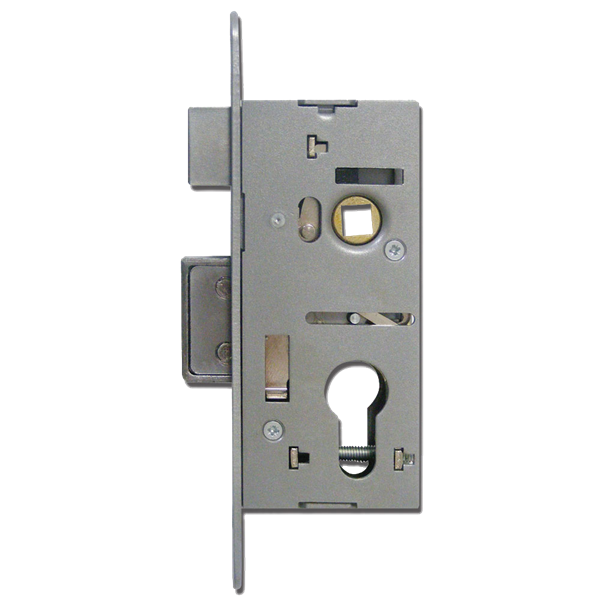

YALE L22070 Euro Sashcase

FREE DELIVERY on Orders Over £60 Plus VAT

£102.22 INC VAT

Show price ex. VAT

RRP from: £165.82 Saving 38.5%

Variations

Select Description

54mm SC Bagged

Select Backset

36mm

Select Case Height

115mm

Select Case Depth

54mm

Select Case Width

50mm

Select Centre Case

Latch & Deadbolt

Select Centres

48mm

Select Packaging

Bagged

Select Spindle

Single

Select Price Group

Select Finish

Satin Chrome

Product Code:

L1419

View Variations Table

Clear All

Product Information

The YALE L22070 Euro Sashcase has 48mm centres, 36mm backset, 54mm case depth, 115mm case height and has 25.5mm faceplate width.

It has a double throw deadbolt and is ideally suitable for use in metal doors. The lock is supplied without faceplate and striking plate, as these are no longer available separately.

Handing
The latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand.

Operation
Locking Method - Sash 1. Standard sashlock operation with the deadbolt operated by the cylinder and the latchbolt operated by the handle.

Double throw deadbolt 1st throw =12mm, 2nd throw goes a further 12mm.
Suitable for metal doors
Supplied without faceplate and striking plate as no longer available
Euro Profile Lock Case
Reversible Latch Bolt
Latch & Deadbolt
