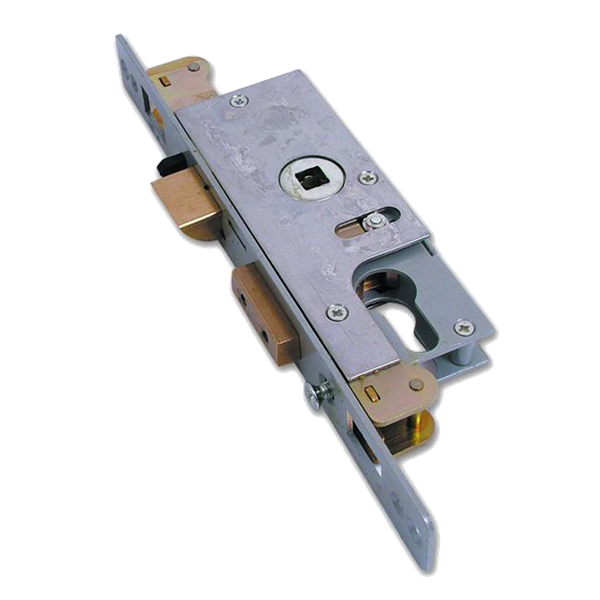

YALE L22180 Monarch Sashcase

FREE DELIVERY on Orders Over £60 Plus VAT

£115.50 INC VAT

Show price ex. VAT

RRP from: £187.37 Saving 38.5%

Variations

Select Description

50mm SC

Select Backset

30.5mm

Select Case Finish

Silver

Select Case Height

124mm

Select Case Depth

50mm

Select Case Width

50mm

Select Centre Case

Latch & Deadbolt

Select Centres

48mm

Select Packaging

Boxed

Select Spindle

Single

Select Price Group

Select Finish

Satin Chrome

Product Code:

L8499

View Variations Table

Clear All

14 items in stock

Quantity

Add to Basket

Product Information

The YALE L22180 Monarch Sashcase has 48mm centres, 30.5mm backset, 50mm case depth, 124mm case height and has 25mm faceplate width.

This lock is also known as the Monarch lock. It is fitted with an anti thrust snib, has a reversible latch, a double throw deadbolt that gives a 24mm bolt shoot and is ideally suitable for use in metal doors.

Handing
The latch can be reversed by placing a screwdriver in the rear of the case directly behind the latch. Push the latch forward and rotate it to the opposite hand.

Operation
Locking Method - A. Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key, then push down on the lever to unlock.

Suitable for metal doors
24mm double throw deadbolt
Supplied without faceplate
Reversible Latch Bolt
Anti-thrust snib
