Yale Lockmaster Key Turn Latch Deadbolt 2 Hooks 2 Anti Lift Pins Key Wind Multipoint Door Lock

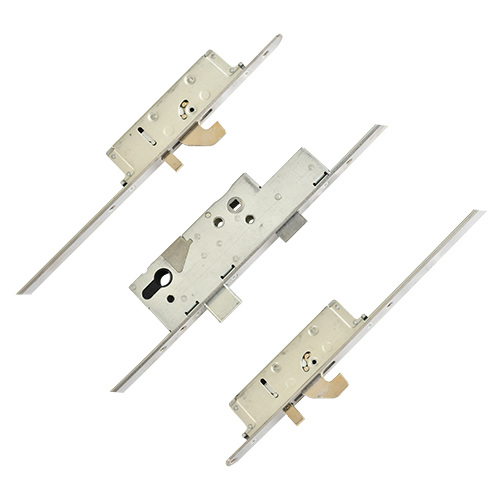

This Lockmaster Key Turn multipoint door lock features 2 Hooks, 1 Deadbolt, 1 Latch & 2 Anti Lift Bolts.

The Yale Lockmaster Key Turn lock is a new lock, which is designed to be used on contemporary doors. They feature a key wind mechanism that allows the door to be closed with a key being required to retract the latch.

These locks are suitable for both timber and composite doors and are available as a Classic, with the main gearbox in the middle of the door, and Heritage, where the main gearbox is situated at the height of a traditional timber door night latch.

These locks will commonly be fitted with contemporary pull handles, rather than lever on plate multipoint lock handles.

Yale Lockmaster Key Turn gearboxes look quite different to regular Lockmaster gearboxes with the corner of the lock removed.

The Key Turn gearbox is available in 45mm backset only.

Gearboxes are attached to faceplates with 3 screws and cannot be interchanged with other lockmaster locks.

When measuring the backset, allow 2-3mm for the faceplate, so a 28mm backset gearbox will measure 25mm when not fixed to the strip.

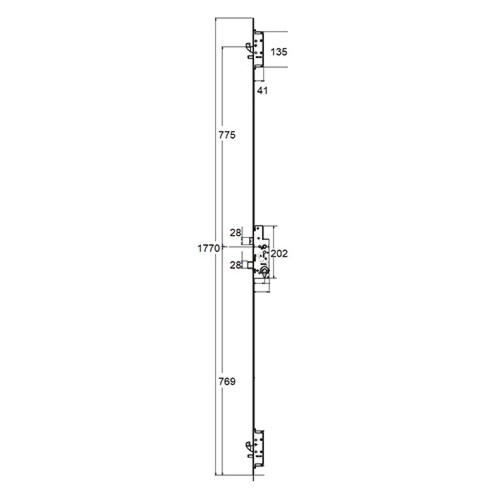

Lockmaster locks can be found with normal hooks or hooks with an anti lift pin directly below them. Hooks always throw upwards and the hook cases measure 136mm high.

Operation: Key Wind

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Turn the key to throw and engage or "wind" out the locking points.

To unlock the door

1. Turn the key to unlock the door by "unwinding" the locking points.

2. A further quarter turn of the key will retract the latch.

• PAS24 compliant
• Secured by design approved
• Tested in excess of 200,000 cycles
• Salt spray tested to BS EN 1670 grade 4 240 hours
• Manufactured in the UK

We stock a range of associated products for Lockmaster Key Turn multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as a timber door lock or a composite door lock.
